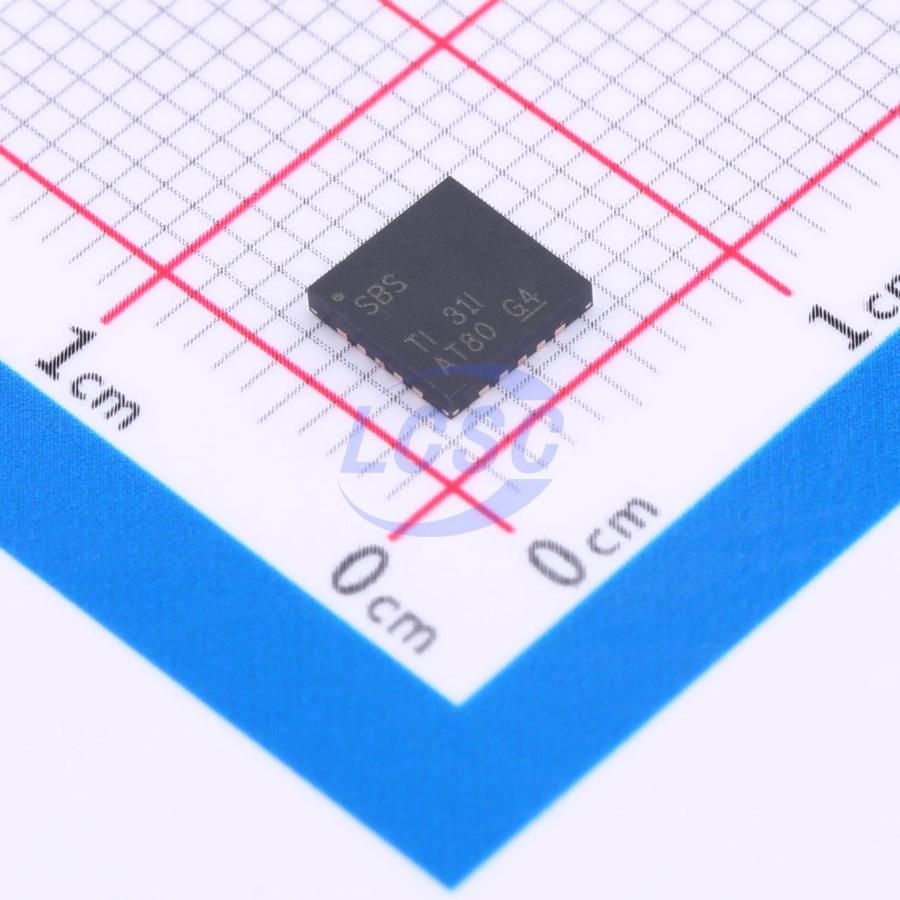

TPS7A7100RGWR
Linear Voltage Regulator IC Positive 1 Output 1A VQFN-20-EP(5x5)
VQFN-20-EP(5x5)ROHS3 CompliantActive
1A, ultra-low dropout regulator with low noise and power-good indication
- Manufacturer
- TI
- Manufacturer part #
- TPS7A7100RGWR
- Store part #
- C2876737
- Package / case
- VQFN-20-EP(5x5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
251 in stock
#C2876737
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹393.82 | ₹393.82 |
| 10+ | ₹350.93 | ₹3,509.30 |
| 30+ | ₹328.94 | ₹9,868.20 |
| 100+ | ₹299.55 | ₹29,955.00 |
| 500+ | ₹289.10 | ₹1,44,550.00 |
| 1,000+ | ₹284.54 | ₹2,84,540.00 |
1 × ₹393.82
₹393.82
excl. GST
₹464.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A7100RGWR
₹393.82 for 1 + GST
Specifications
- Output Voltage
- 900mV~3.5V;900mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 1A
- Output Type
- Fixed;Adjustable
- Features
- Adjustable soft-start;Operating status indication;Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The TPS7A7100 low-dropout (LDO) regulator is designed for applications requiring an ultra-low dropout characteristic (140mV at 1A), with input voltages ranging from 1.5V to 6.5V. The TPS7A7100 features an innovative, user-configurable output voltage setting ranging from 0.9V to 3.5V, eliminating the need for external resistors and any associated errors. The TPS7A7100 offers an extremely fast load transient response, remains stable with ceramic output capacitors, and supports better than 2% accuracy across line, load, and temperature variations. A soft-start pin allows applications to reduce inrush current to the load. Additionally, an open-drain power-good signal enables power rail sequencing.
Applications
- Wireless infrastructure: SerDes, FPGA, DSP
- RF components: VCO, ADC, DAC, LVDS
- Set-top boxes: amplifiers, ADC, DAC, FPGA, DSP
- Wireless LAN, Bluetooth
- PC and printers
- Audio and video
Key features
- Low dropout: 140mV at 1A
- VIN range: 1.5V to 6.5V
- Configurable fixed VOUT range: 0.9V to 3.5V
- Adjustable VOUT range: 0.9V to 5V
- Excellent load and line transient response
- Stable with ceramic output capacitors
- Programmable soft-start
- Power good (PG) output
- 3mm × 3mm QFN-16 and 5mm × 5mm QFN-20 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A7100RGWT#C2869506TI · VQFN-20-EP(5x5) | TI | VQFN-20-EP(5x5) | 10 | ₹842.55 · 10 in stock | View |
 | TPS7A7200RGWT#C2862091TI · VQFN-20-EP(5x5) | TI | VQFN-20-EP(5x5) | 187 | ₹395.29 · 187 in stock | View |
 | TPS7A7200QRGWREP#C2863556TI · VQFN-20-EP(5x5) | TI | VQFN-20-EP(5x5) | 1 | ₹811.55 · 1 in stock | View |
