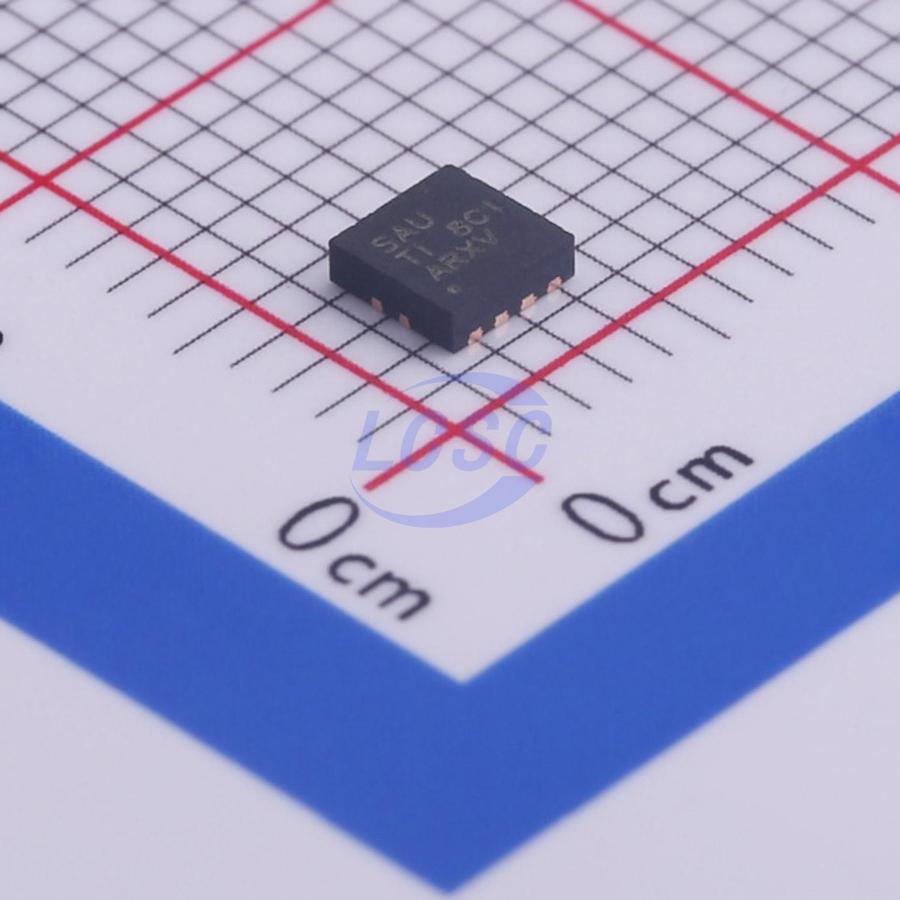

TPS7A8101DRBR

The TPS7A8101 low-dropout linear regulator (LDO) offers very good performance in noise and powersupply rejection ratio (PSRR) at the output. This LDO uses an advanced BiCMOS process and a PMOSFET pass device to achieve very low noise, excellent transient response, and excellent PSRR performance. The TPS7A8101 device is stable with a 4.7-μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. This device is fully specified over the temperature range of TJ = -40°C to 125°C and is offered in a 3-mm × 3-mm, SON-8 package with a thermal pad.

Applications

• Telecom Infrastructure
• Audio
• High-Speed I/F (PLL and VCO)

Key features

• Low-Dropout 1-A Regulator with Enable Adjustable Output Voltage: 0.8 V to 6 V
• 80 dB at 1 kHz
• 60 dB at 100 kHz
• 54 dB at 1 MHz
• Low Noise: 23.5 μV RMS typical (100 Hz to 100 kHz)
• Stable with a 4.7-μF Capacitance
• Excellent Load and Line Transient Response
• 3% Overall Accuracy (Over Load, Line, Temperature)
• Overcurrent and Overtemperature Protection
• Very Low Dropout: 170 mV Typical at 1 A
• Package: 3-mm × 3-mm SON-8
