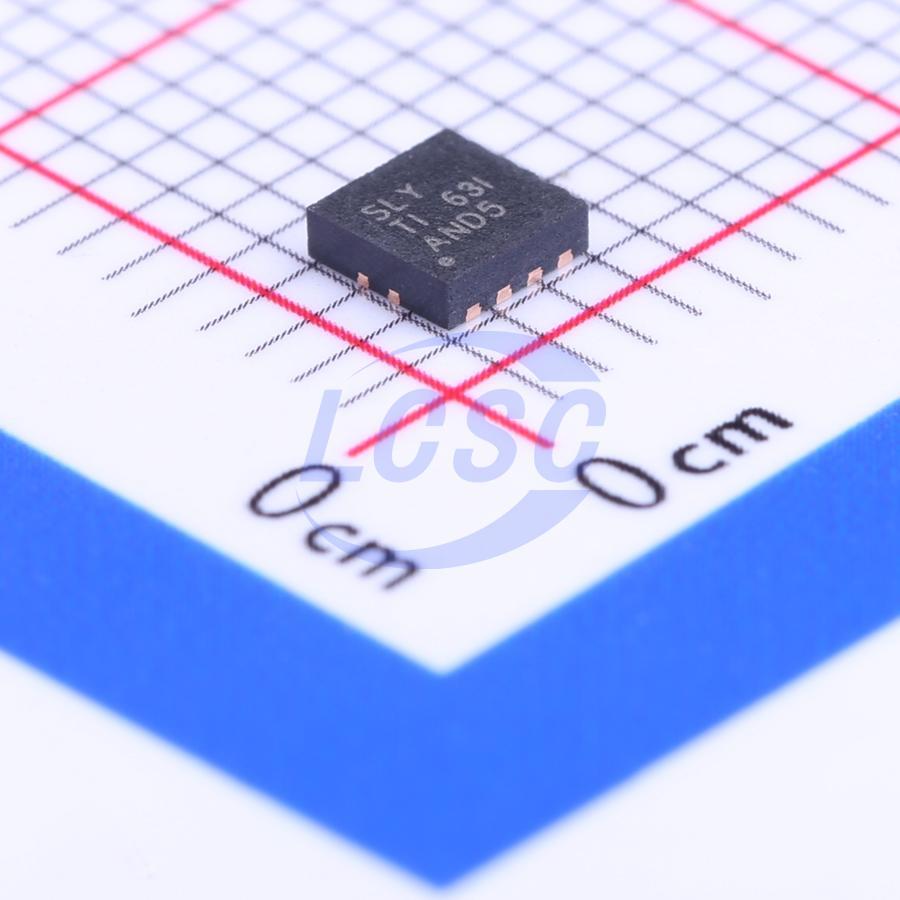

TPS7A8101QDRBRQ1

The TPS7A8101-Q1 low-dropout (LDO) linear regulator delivers excellent performance in output noise and power supply rejection ratio (PSRR). This LDO employs an advanced BiCMOS process and a PMOSFET pass element to achieve ultralow noise, superior transient response, and excellent PSRR performance. The TPS7A8101-Q1 device remains stable with a 4.7μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve at least 3% accuracy across all load, line, process, and temperature variations. This device is fully rated for operation over a temperature range of TA = −40°C to +125°C, and is available in a 3mm×3mm SON-8 package with thermal pad.

Applications

• RF power supply for automotive applications
• Automotive ADAS ECU
• Telematics control unit
• Audio
• High-speed I/F (PLL and VCO)

Key features

• Qualified for automotive applications with the following AEC-Q100 results:
• Device temperature grade 1: ambient operating temperature range -40°C to 125°C
• Device human body model (HBM) ESD classification level H2
• Device charged device model (CDM) ESD classification level C4B
• Low-dropout 1A LDO regulator with enable function
• Adjustable output voltage: 0.8V to 6V
• Wide bandwidth, high PSRR:
• 80dB at 1kHz
• 60dB at 100kHz
• 54dB at 1MHz
• Low noise: 23.5μVRMS typical (100Hz to 100kHz)
• Stable with 4.7μF output capacitor
• Excellent load and line transient response
• Overall accuracy 3% (over load, line, and temperature range)
• Overcurrent and overtemperature protection
• Ultra-low dropout: 170mV typical at 1A
• Package: 3mm×3mm small outline no-lead (SON)-8
