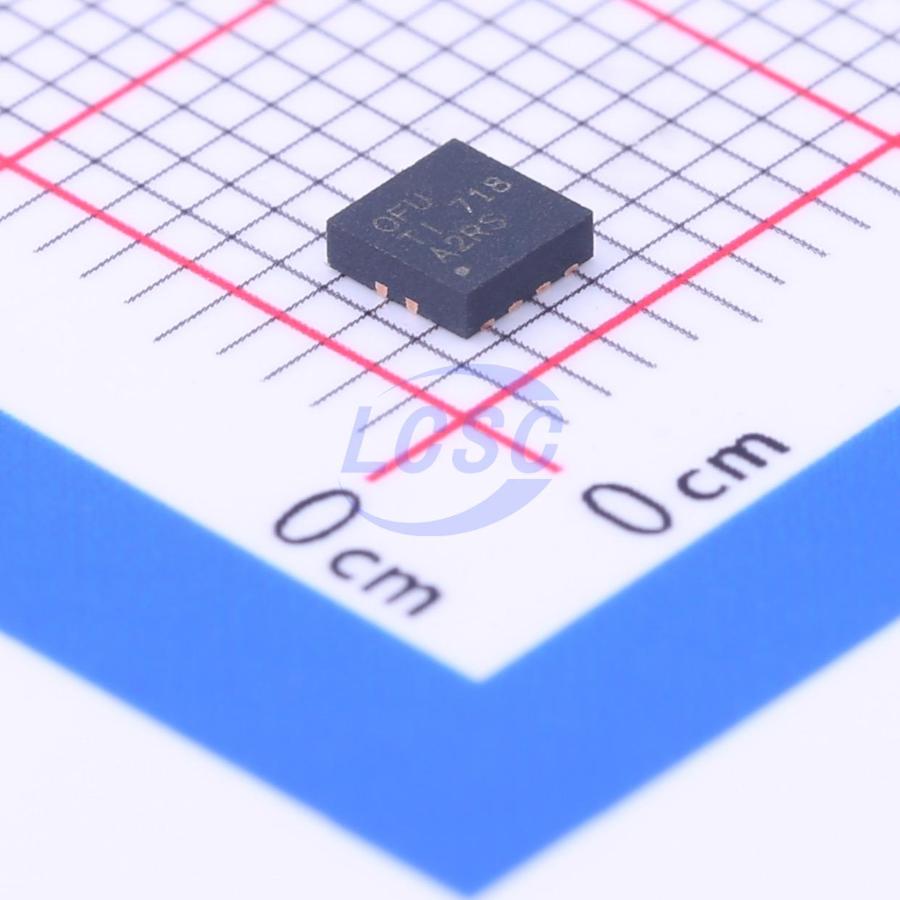

TPS7A8001DRBR
800mV~6V Positive Adjustable VSON-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
VSON-8-EP(3x3)ROHS CompliantActive
1A, low IQ, enabled functionality, high PSRR, ultra-low dropout voltage regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS7A8001DRBR
- Store part #
- C105265
- Package / case
- VSON-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,852 in stock
#C105265
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.35 | ₹66.35 |
| 10+ | ₹54.22 | ₹542.20 |
| 30+ | ₹49.00 | ₹1,470.00 |
| 100+ | ₹42.51 | ₹4,251.00 |
| 500+ | ₹39.69 | ₹19,845.00 |
| 1,000+ | ₹37.94 | ₹37,940.00 |
1 × ₹66.35
₹66.35
excl. GST
₹78.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A8001DRBR
₹66.35 for 1 + GST
Specifications
- Output Voltage
- 800mV~6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 350uA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 6.5V
- Features
- Enable control;Noise bypass terminal;Input under-voltage protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.101 g
Overview
The TPS7A8001 is a low-dropout linear regulator (LDO) offering very high power-supply ripple rejection (PSRR) at the output. This LDO uses an advanced BiCMOS process and a PMOSFET pass device to achieve very low noise, excellent transient response, and excellent PSRR performance. The TPS7A8001 is stable with a 4.7 μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. This device is fully specified over the temperature range of T_J = -40°C to 125°C and is offered in a 3 mm × 3 mm, VSON - 8 package with a thermal pad.
Applications
- Telecom Infrastructure
- Audio
- High - Speed I/F (PLL/VCO)
Key features
- Low-Dropout 1 - A Regulator With Enable
- Adjustable Output Voltages: 0.8 V to 6 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A8101QDRBRQ1#C133987TI · VSON-8-EP(3x3) | TI | VSON-8-EP(3x3) | 2,520 | ₹586.63 · 2,520 in stock | View |
| TPS7A8001DRBT#C427118TI · SON-8-EP(3x3) | TI | SON-8-EP(3x3) | 18 | ₹185.60 · 18 in stock | View | |
 | TPL910ADJA-DF6R#C52898013PEAK · DFN-8(3x3) | 3PEAK | DFN-8(3x3) | 945 | ₹134.05 · 945 in stock | View |
 | TPS7A8101DRBR#C465730TI · VSON-8-EP(3x3) | TI | VSON-8-EP(3x3) | 37,749 | ₹116.15 · 37,749 in stock | View |
 | TPS7A8101DRBT#C139650TI · SON-8(3x3) | TI | SON-8(3x3) | 1,150 | ₹136.84 · 1,150 in stock | View |
