TIDatasheet (PDF)

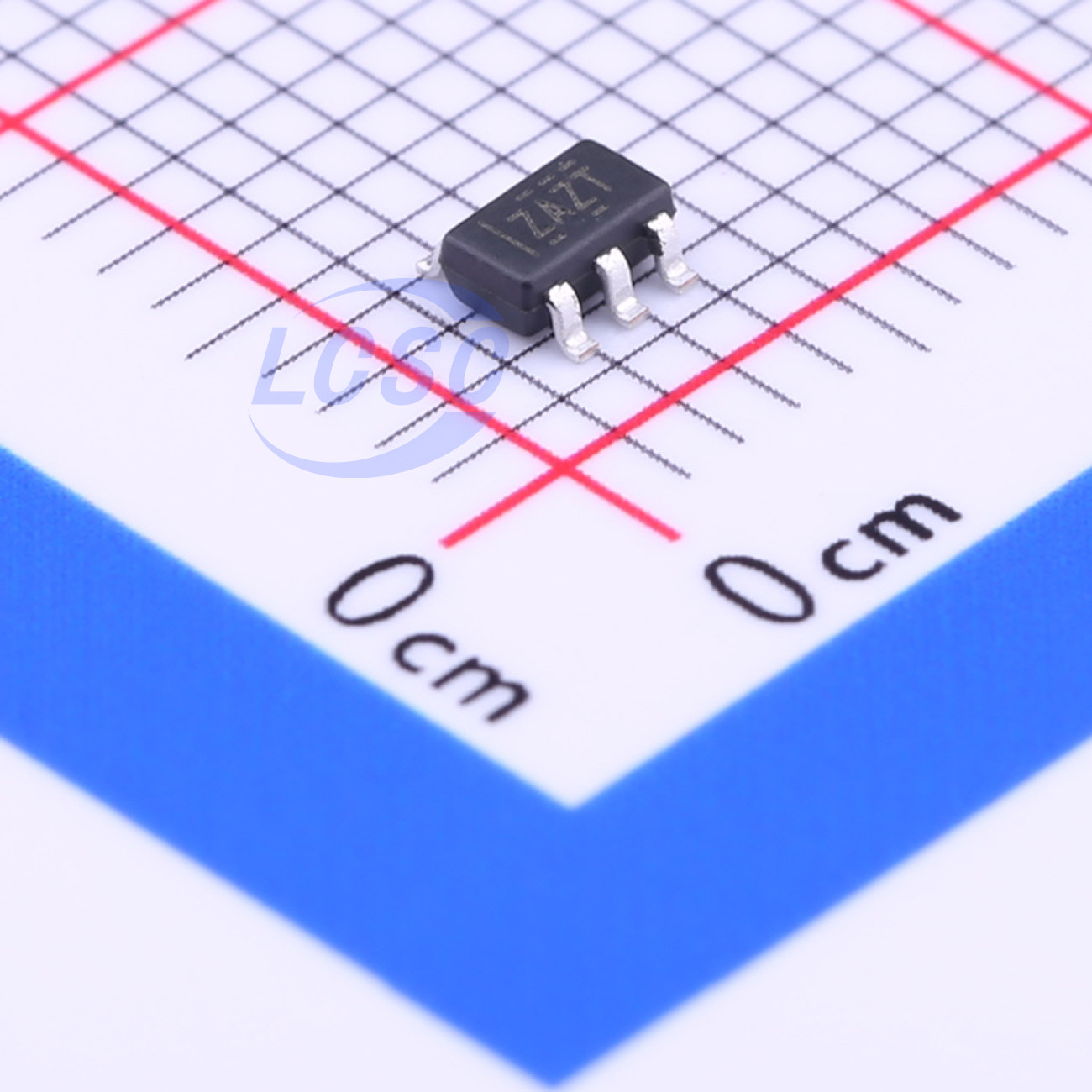

TPS7B6950DBVR
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, 40V, low IQ, low-dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS7B6950DBVR
- Store part #
- C174327
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,998 in stock
#C174327
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.23 | ₹83.23 |
| 10+ | ₹67.37 | ₹673.70 |
| 30+ | ₹60.63 | ₹1,818.90 |
| 100+ | ₹51.94 | ₹5,194.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹41.08 | ₹41,080.00 |
1 × ₹83.23
₹83.23
excl. GST
₹98.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7B6950DBVR
₹83.23 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Built-in soft-start;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TPS7B69xx device is a low-dropout linear regulator that operates at up to 40 V VI. With only 15-μA (typical) quiescent current at light load, the device is applicable for standby microcontrol-unit systems, especially for always-on applications like emeters, fire alarms, and smoke detectors. The devices have integrated short-circuit and overcurrent protection. The TPS7B69xx device operates over a -40℃ to 105℃ temperature range.
Applications
- E-meters, Water Meters and Gas Meters
- Appliances and White Goods
- Fire Alarm, Smoke Detector
- Medical, Health, and Fitness Applications
Key features
- 4-V to 40-V Wide VI Input Voltage Range With up to 45-V Transient
- Maximum Output Current: 150 mA
- Low Quiescent Current (IQ):
- 15 μA Typical at Light Loads
- 25 μA Maximum Under Full Temperature
- 450 mV Typical Low Dropout Voltage at 100 mA Load Current
- 10 mV Line Regulation Maximum
- 20-mV Load Regulation Maximum
- Stable With Low-ESR Ceramic Output Capacitor (2.2 μF to 100 μF)
- Fixed 3.3-V and 5-V Output Voltage Options
- Integrated Fault Protection:
- Thermal Shutdown
- Short-Circuit Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7B6950QDBVRQ1#C132202TI · SOT-23-5 | TI | SOT-23-5 | 15,990 | ₹41.79 · 15,990 in stock | View |
 | SK6513SS5E-50#C5120326Suntek · SOT-23-5 | Suntek | SOT-23-5 | 5,865 | ₹25.68 · 5,865 in stock | View |
 | LTP3559-50NXT5#C5124527Linearin · SOT-23-5L | Linearin | SOT-23-5L | 2,792 | ₹51.44 · 2,792 in stock | View |
| GP2001-50HT5R#C48997241GUQIAO Microelectronics · SOT-23-5 | GUQIAO Microelectronics | SOT-23-5 | 2,870 | ₹6.44 · 2,870 in stock | View | |
 | DS8603-50S5#C5884190DSTECH · SOT-23-5 | DSTECH | SOT-23-5 | 2,990 | ₹15.44 · 2,990 in stock | View |
