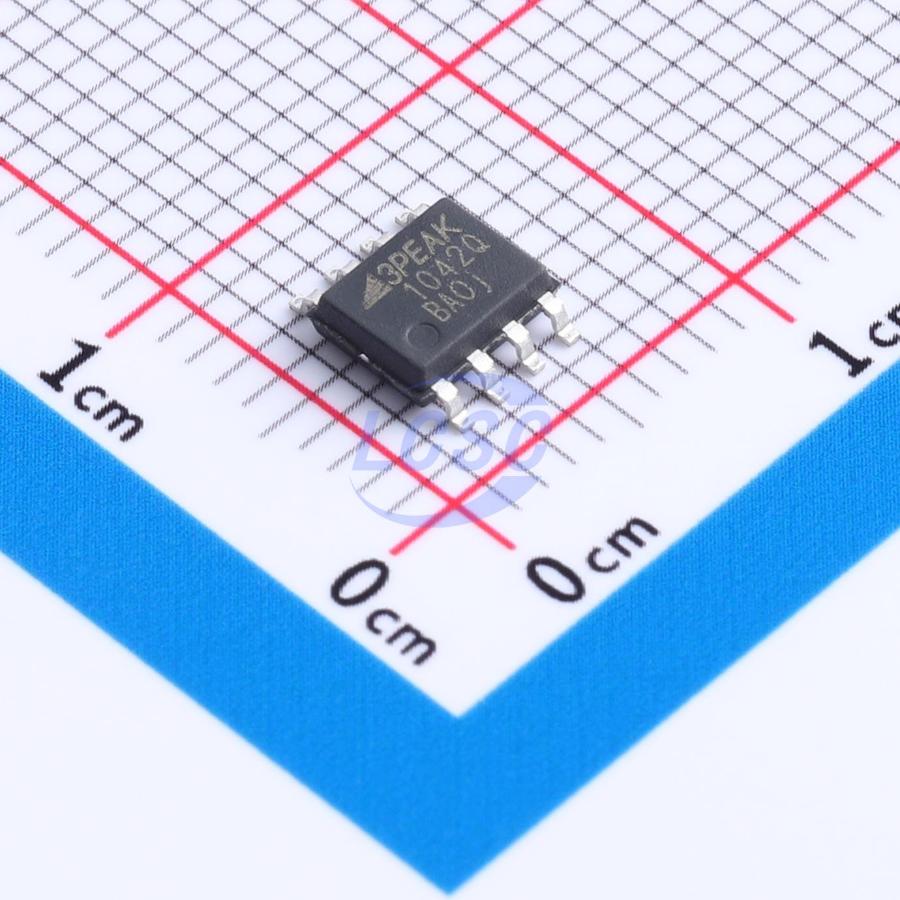

TPT1042Q-SO1R-S

TPT1042 is a CAN transceiver compliant with the ISO11898 high-speed Controller Area Network physical layer standard. The device is designed for CAN FD networks at data rates up to 5 Mbps, offering enhanced timing margin and higher data rates in long-distance and high-load networks. The device features -70V to +70V cross-wiring, overvoltage and ground loss protection, overtemperature shutdown, and a common-mode input voltage range of -30V to +30V. The TPT1042V includes an auxiliary power supply input for I/O level shifting of input pin thresholds and RXD output levels. The device family features a low-current standby mode with CAN bus wake-up capability. In addition, all devices incorporate multiple protection features to enhance device and network robustness. The TPT1042 and TPT1042V are available in SOP8 and DFN3X3-8L packages, with an operating temperature range of -40℃ to +125℃.

Applications

• Body Electronics/Lighting
• Powertrain/Chassis
• Infotainment/Instrument Cluster
• ADAS/Safety

Key features

• Compliant with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 physical layer standards
• Supports CAN FD with data rates up to 5 Mbps
• Short propagation delay and fast loop time
• 5V supply voltage, I/O voltage range supports 2.8V to 5.5V MCU interface
• Ultra-low current standby mode with bus wake-up capability
• Ideal passive state on CAN bus when powered off
• Common-mode input voltage: ±30 V
• Protection features: IEC 61000-4-2 ESD protection up to ±15 kV
• Bus fault protection: ±70 V
• VCC and VIO (V-grade only) undervoltage protection
• TXD dominant timeout and bus dominant timeout
• Thermal shutdown protection
• Available in SOP8 and leadless DFN3X3 packages
• AEC-Q100 qualified for automotive applications, Grade 1
