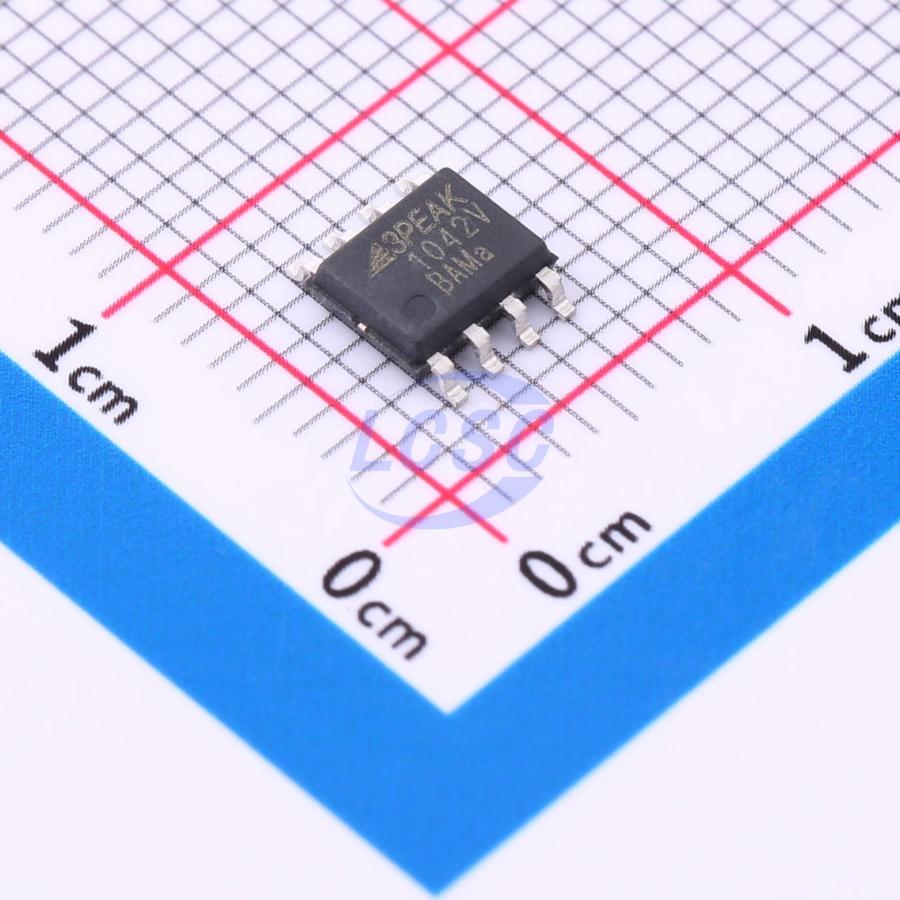

TPT1042V-SO1R-S

A CAN transceiver that meets the ISO11898 high-speed CAN (Controller Area Network) physical layer standard. The device is designed to be used in CAN FD networks up to 5 Mbps, with enhanced timing margin and higher data rates in long and highly loaded networks. As designed, the device features crosswire, overvoltage, and loss of ground protection from -70V to +70V, over-temperature shutdown, with a -30V to +30V common-mode input voltage range. The TPT1042V has a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family has a low-current standby mode with CAN BUS waked-up capability. Additionally, all devices include many protection features to enhance the device and network robustness. The TPT1042 and TPT1042V are available in SOP8 and DFN3X3-8L packages and are characterized from -40℃ to +125℃.

Applications

• All Devices Supporting Highly Loaded CAN Networks
• Field Industrial Automation, Sensor and Driver Systems
• Building, Security Control Systems
• Energy Storage Systems
• Telecom Base Station Status and Control

Key features

• Meets the ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 Physical Layer Standards
• Supports CAN FD and Data Rating up to 5 Mbps
• Short Propagation Delay Times and Fast Loop Times
• 5-V Power Supply, I/O Voltage Range Supports 2.8-V to 5.5-V MCU Interface
• Ultra-Low Current Standby Mode with Bus Wake-up Capability
• Ideal Passive Behavior to CAN Bus when Unpowered
• Common-Mode Input Voltage: ±30 V
• Protection Feature:
• IEC 61000-4-2 ESD Protection up to ±15 kV
• Bus Fault Protection: ±70 V
• VCC and VIO (V variants only) Under-Voltage Protection
• TXD Dominant Time-out Function and Bus-Dominant Time-out Function
• Thermal Shutdown Protection
• Available in SOP8 Package and Leadless DFN3X3 Package
