3PEAK

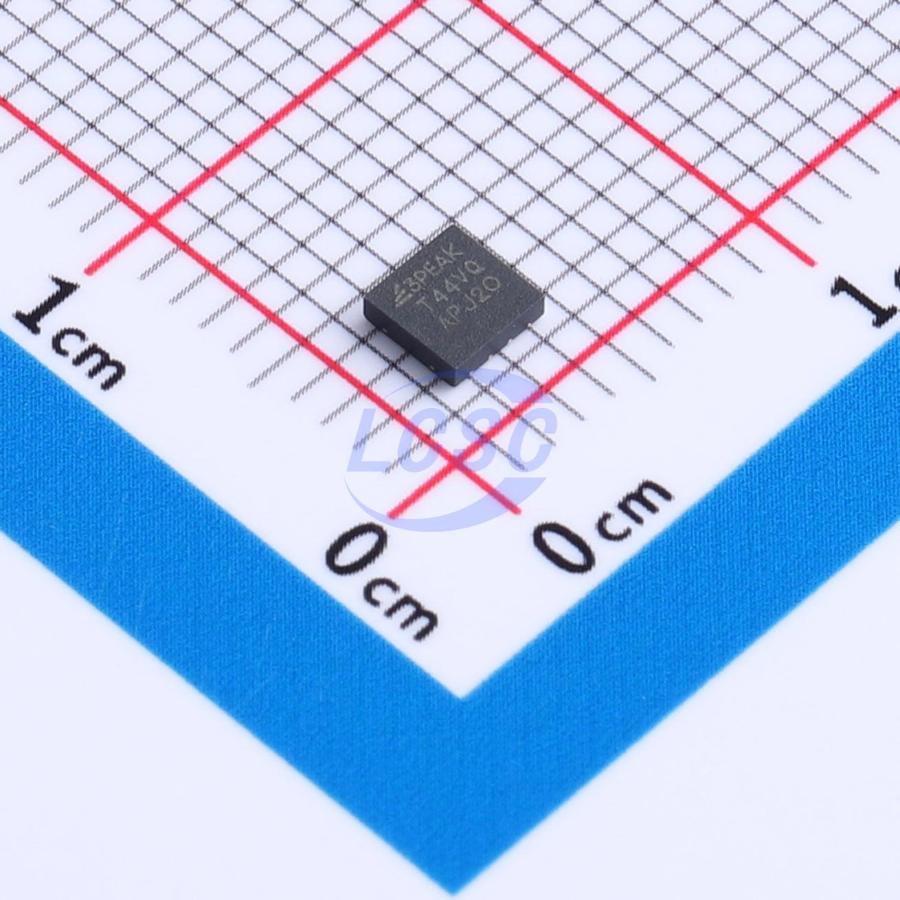

TPT1044VQ-DFCR-S

4.5V~5.5V CAN FD Transceiver 8Mbps DFN-8(3x3) Drivers, Receivers, Transceivers

DFN-8(3x3)RoHSActive

Manufacturer: 3PEAK
Manufacturer part #: TPT1044VQ-DFCR-S
Store part #: C48618291
Package / case: DFN-8(3x3)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,056 in stock

#C48618291

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹73.00	₹73.00
10+	₹56.28	₹562.80
30+	₹49.11	₹1,473.30
100+	₹39.98	₹3,998.00
500+	₹36.06	₹18,030.00
1,000+	₹33.46	₹33,460.00

Quantity (min 1)

1 × ₹73.00

₹73.00

excl. GST

₹86.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPT1044VQ-DFCR-S

₹73.00 for 1 + GST

Specifications

Voltage - Supply: 4.5V~5.5V
Type: CAN FD Transceiver
number of channels: 1
Data Rate: 8Mbps
Operating Temperature: -40℃~+150℃
Features: Low-power mode;Wake-up function;Bus fault protection;TXD dominant timeout;Thermal shutdown protection;Undervoltage Protection;Integrated level shifting;ESD protection
Supply Current: 60mA
Quiescent Supply Current: 300nA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.261 g

Overview

TPT1044VQ and TPT1044Q are CAN transceivers compliant with ISO11898-2:2024 and SAEJ2284-1 through SAEJ2284-5 high-speed CAN physical layer standards. These devices are designed for CAN FD networks at data rates up to 5 Mbps, with enhanced timing margins in long-distance and high-load networks, and support data rates up to 8 Mbps in simple CAN bus networks. System designs can be optimized through excellent EMC and ESD performance. The TPT1044VQ features a secondary power supply input VIO pin for I/O level shifting, directly supporting 1.8V, 2.5V, 3.3V, and 5V MCU logic levels. This device family offers a low-current standby mode and supports wake-up from the CAN bus via the wake-up pattern defined in ISO11898-2:2024. These devices are designed with bus fault protection from -45V to +45V, TXD dominant timeout, and overtemperature shutdown. In addition, all devices include a power-off ideal passive behavior fail-safe feature to enhance network robustness. The TPT1044VQ and TPT1044Q are available in SOP8 and DFN3X3-8 packages and are AEC-Q100 qualified for automotive applications.

Applications

Body Electronics/Lighting
Powertrain/Chassis
Infotainment/Instrument Cluster
ADAS/Safety

Key features

Compliant with ISO 11898-2:2024 and SAE J2284-1 to SAE J2284-5 physical layer standards
Supports Classic CAN and optimized CAN FD with data rates up to 8 Mbps
Short and symmetrical propagation delays and fast loop delay for enhanced timing margin
5V supply voltage with I/O voltage range supporting 1.7V to 5.5V MCU interface
Ultra-low current standby mode with bus wake-up capability
Ideal passive behavior on CAN bus when powered down
Glitch-free on CAN bus and RXD during power-up/power-down
Bus HBM ESD protection up to 15kV with IEC 61000-4-2 ESD protection
Bus fault protection: ±45V
VCC and VIO undervoltage protection
TXD dominant timeout and bus dominant timeout
Thermal shutdown protection
Available in SOP8 package and leadless DFN3X3-8 package with improved AOI capability
AEC-Q100 qualified for automotive applications, Grade 1
