3PEAK

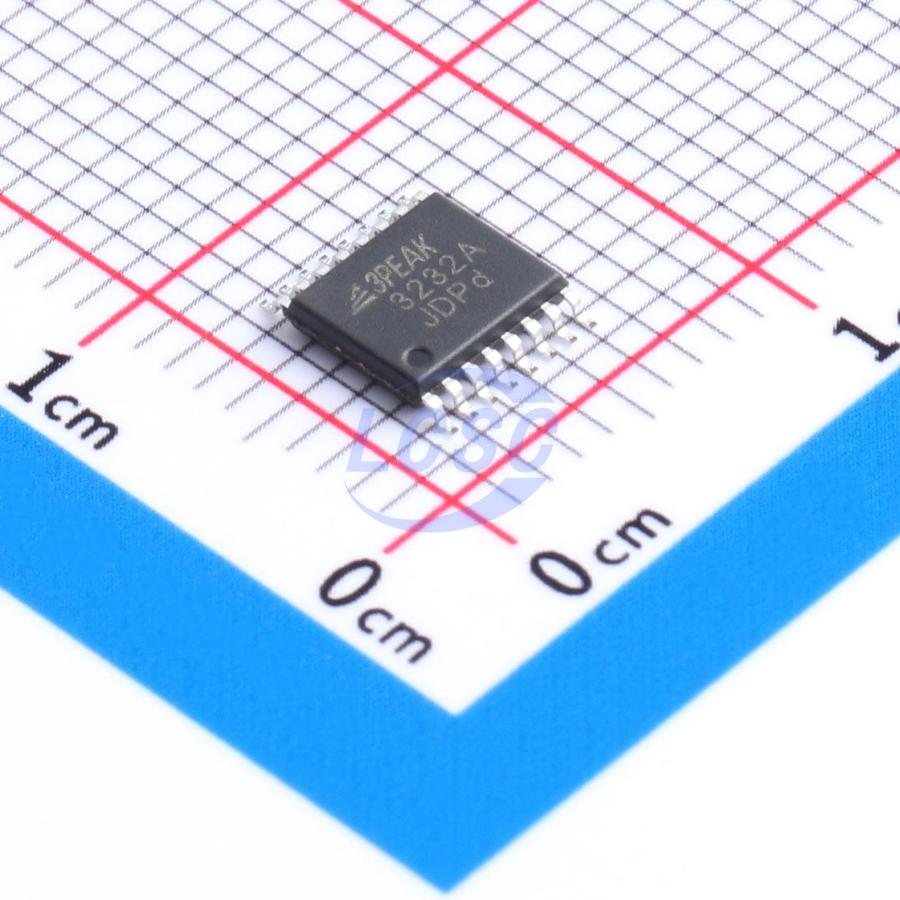

TPT3232A-TS3R

Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS

TSSOP-16ROHS CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TPT3232A-TS3R
Store part #: C39552514
Package / case: TSSOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,440 in stock

#C39552514

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹68.74	₹343.70
50+	₹52.91	₹2,645.50
150+	₹45.97	₹6,895.50
500+	₹37.52	₹18,760.00
3,000+	₹33.83	₹1,01,490.00
6,000+	₹31.45	₹1,88,700.00

Quantity (min 5, multiples of 5)

5 × ₹68.74

₹343.70

excl. GST

₹405.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPT3232A-TS3R

₹343.70 for 5 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps
Operating Temperature: -40℃~+125℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 0.3mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.089 g

Overview

TPT3232A is a transceiver compliant with IEC61000 ESD protection standards, operating at 3.0 V to 5.5 V, and meets the RS-232 standard for balanced communication. Each receiver converts TIA/RS-232 inputs to TTL/CMOS levels. The device withstands ±25 V receiver input voltages and operates at a data signaling rate of 250 kbps. TPT3232A is available in SOP16, SSOP16, and TSSOP16 packages, with an operating temperature range of -40°C to 125°C.

Applications

Battery-powered devices
Industrial HMI
Laptops and computers
Printers

Key features

Meets TIA/EIA-232-F and ITU V.28 standards
Wide supply voltage range: single supply +3 V to +5.5 V
Two drivers and two receivers
Data rate: 250 kbps
Only four external 0.1-μF capacitors required
ESD protection on RS-232 bus pins
±15 kV (Human Body Model)
±12 kV (IEC61000-4-2, contact discharge)
±15 kV (IEC61000-4-2, air-gap discharge)
