3PEAKDatasheet (PDF)

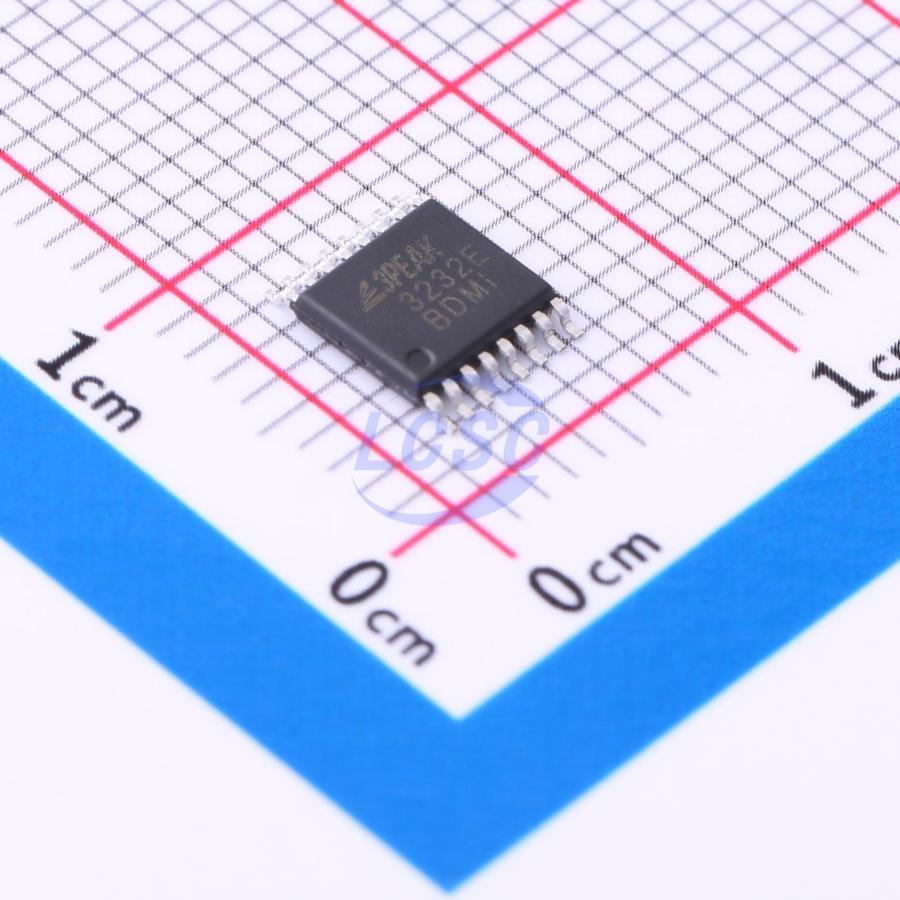

TPT3232E-TS3R
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers
TSSOP-16RoHSActive
3V to 5.5V, 250kbps RS-232 Transceivers
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPT3232E-TS3R
- Store part #
- C2902364
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,895 in stock
#C2902364
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.28 | ₹256.40 |
| 50+ | ₹39.55 | ₹1,977.50 |
| 150+ | ₹34.31 | ₹5,146.50 |
| 500+ | ₹28.00 | ₹14,000.00 |
| 3,000+ | ₹25.28 | ₹75,840.00 |
| 6,000+ | ₹23.47 | ₹1,40,820.00 |
5 × ₹51.28
₹256.40
excl. GST
₹302.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPT3232E-TS3R
₹256.40 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The TPT3232E is IEC61000 ESD protected, 3.0V to 5.5V powered transceivers that meet the RS-232 standards for balanced communication. Each receiver converts TIA/RS-232 inputs to TTL/CMOS levels. The devices have a typical threshold of 1.25V, a typical hysteresis of 0.3V, and can accept ±15V inputs. The device operates at data signaling rates up to 250 kbps. The TPT3232E is available in SOP16, SSOP16 and TSSOP16 package, and is characterized from -40°C to 125°C.
Applications
- Battery-Powered Equipment
- Industry Human Machine Interface
- Notebook, Computers
- Printers
Key features
- Meets the Requirements of TIA/EIA- 232-F and ITU V.28 Standards
- Wide Power Supply Range: Single +3V to +5.5V
- Two Drivers and Two Receivers
- Operates up to 250 kbps
- Requires Only Four External 0.1μF Capacitors
- ESD Protection for RS-232 Bus Pins ± 15 kV (HBM) ± 12 kV (IEC61000-4-2, Contact Discharge) ± 15 kV (IEC61000-4-2, Air-Gap Discharge)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPT3232A-TS3R#C395525143PEAK · TSSOP-16 | 3PEAK | TSSOP-16 | 2,440 | ₹57.16 · 2,440 in stock | View |
 | TPT3232X-TS3R#C382829393PEAK · TSSOP-16 | 3PEAK | TSSOP-16 | 38 | ₹88.94 · 38 in stock | View |
