TECH PUBLICDatasheet (PDF)

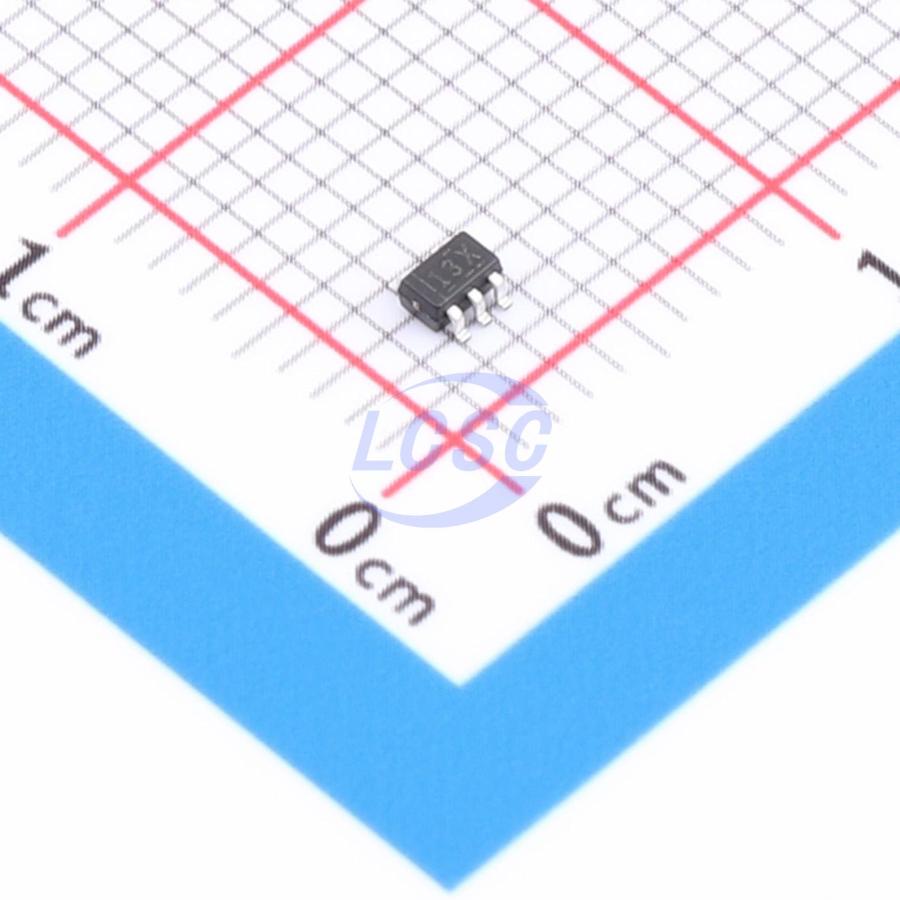

TPTLV6001IDCKR
45mA 1mV 1V/us 5pA 80dB 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-353 Instrumentation, Op Amps, Buffer Amps
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV6001IDCKR
- Store part #
- C53100577
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C53100577
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.69 | ₹78.45 |
| 50+ | ₹12.32 | ₹616.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 500+ | ₹9.37 | ₹4,685.00 |
| 3,000+ | ₹8.36 | ₹25,080.00 |
| 6,000+ | ₹7.85 | ₹47,100.00 |
5 × ₹15.69
₹78.45
excl. GST
₹92.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV6001IDCKR
₹78.45 for 5 + GST
Specifications
- Output Current
- 45mA
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -45℃~+85℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 28uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 65nV/√Hz@1kHz
- Dual Supply
- -2.75V~-750mV;750mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This series of op-amps features general-purpose, low offset, high frequency response, and low power consumption. Operating from a 5V supply, each amplifier draws 28μA quiescent current, with 1MHz bandwidth and 1V/μs slew rate, suitable for a wide range of application designs. These op-amps are designed to deliver performance in low-voltage and low-power systems, with an input common-mode voltage range that includes ground, and a maximum input offset voltage of 3mV. This series provides rail-to-rail output swing under heavy load conditions. The op-amp series operates from 1.5V to 5.5V single or dual supply over a temperature range of -40℃ ~ +85℃.
Applications
- Audio output
- Battery and power control
- Smoke/gas/environmental sensors
- Medical devices
- Portable instruments and mobile devices
Key features
- General purpose, low cost
- Gain bandwidth product: 1MHz
- Low supply current: 28μA (VS = 5V)
- Input offset voltage: 1mV (typical)
- Slew rate: 1V/μs (VS=5V)
- Input bias current: 5pA
- Rail-to-rail input and output
- No phase reversal with input overdrive
- Supply voltage range: 1.5V to 5.5V
- Operating temperature range: -45℃ ~ +85℃
