TECH PUBLIC

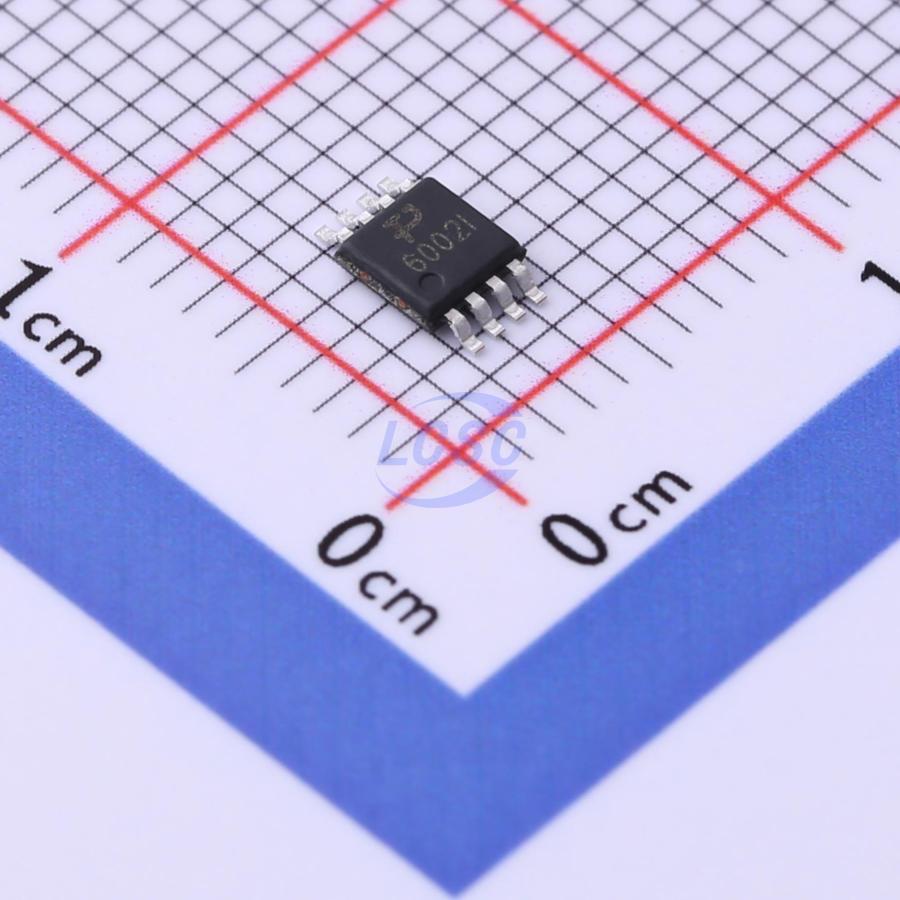

TPTLV6002IDGKR

2 5mV 600V/ms 65dB 1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

CMOS, Rail-to-Rail General-Purpose Amplifiers

Manufacturer: TECH PUBLIC
Manufacturer part #: TPTLV6002IDGKR
Store part #: C2999127
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,095 in stock

#C2999127

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
5+	₹24.04	₹120.20
50+	₹21.06	₹1,053.00
150+	₹19.79	₹2,968.50
500+	₹18.20	₹9,100.00
3,000+	₹16.86	₹50,580.00
6,000+	₹16.43	₹98,580.00

Quantity (min 5, multiples of 5)

5 × ₹24.04

₹120.20

excl. GST

₹141.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPTLV6002IDGKR

₹120.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 600V/ms
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 65dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 20nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.14 g

Overview

The TPLLV6002 is a single supply, low power CMOS dual operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.5V to 5.5V. The embedded anti-RF filter can significantly increase the RF immunity without extra components. Typical low quiescent supply current of 80μA in dual operational amplifiers within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors. The TPTLV6002 is available in MSOP-8L packages. The extended temperature range of -40 °C to +125 °C over all supply voltages offers additional design flexibility.

Applications

Portable Equipment
Mobile Communications
Smoke Detector
Medical Instrumentation
Battery-Powered Instruments
Sensor Interface
Handheld Test Equipment

Key features

Single-Supply Operation from +2.5V~+5.5V
Rail-to-Rail Input/ Output
Gain-Bandwidth Product: 1MHz (Typ.)
Low Input Bias Current: 10pA (Typ.)
Low Offset Voltage: 5mV (Max.)
Quiescent Current: 40μA per Amplifier (Typ.)
Operating Temperature: -40°C - +125°C
Available in MSOP-8L
Shipping Qty : 3000pcs/7Inch Tape & Reel
