TECH PUBLICDatasheet (PDF)

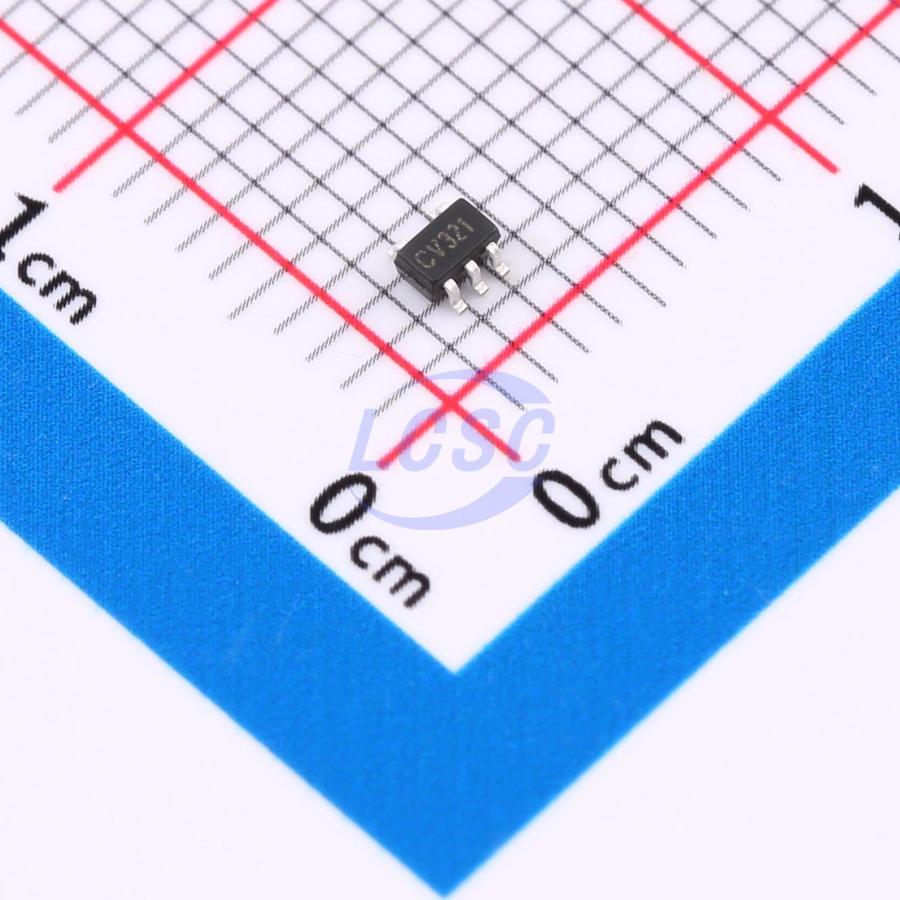

TPV321LC5
200mA 1 1mV 1V/us 100dB 5pA 40uA 1MHz Rail-to-rail output SOT353 Instrumentation, Op Amps, Buffer Amps RoHS
SOT353ROHS CompliantActive
General Purpose, 1MHz, Micro-Power CMOS Op-Amps
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPV321LC5
- Store part #
- C49231024
- Package / case
- SOT353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,575 in stock
#C49231024
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.62 | ₹58.10 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹7.98 | ₹1,197.00 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹6.34 | ₹19,020.00 |
| 6,000+ | ₹5.97 | ₹35,820.00 |
5 × ₹11.62
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV321LC5
₹58.10 for 5 + GST
Specifications
- Output Current
- 200mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -45℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 40uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 65nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Dual Supply
- -2.75V~-750mV;750mV~2.75V
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The are general purpose, low offset, high frequency response and low power operational amplifiers. With an excellent bandwidth of 1MHz, a slew rate of 1V/μs, and a quiescent current of 28μA per amplifier at 5V, the family can be designed into a wide range of applications. The op-amps are designed to provide optimal performance in low voltage and low power systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are 3mV. These parts provide rail-to-rail output swing into heavy loads. The families of operational amplifiers are specified at the full temperature range of -40°C to +85°C under single or dual power supplies of 1.5V to 5.5V.
Applications
- Audio Output
- Battery and Power Supply Control
- Smoke/Gas/Environment Sensors
- Medical Equipment
- Portable Instruments and Mobile Device
- Active Filters
- Piezo Electrical Transducer Amplifier
- Sensor Interface
- ASIC Input or Output Amplifier
Key features
- General Purpose, Low Cost
- Gain Bandwidth Product: 1MHz
- Low Supply Current: 28μA (VS=5V)
- Input Offset Voltage: 1mV (Typical)
- Slew rate: 1V/μs (VS=5V)
- Input Bias Current: 5pA
- Rail-to-Rail Input and Output
- No Phase Reversal for Overdriven Inputs
- Supply Voltage Range: 1.5V to 5.5V
- Operating Temperature: -45°C ~ +85°C
- Type Package: SOT23-5 (TPV321LS5) SOT353 (TPV321LC5)
