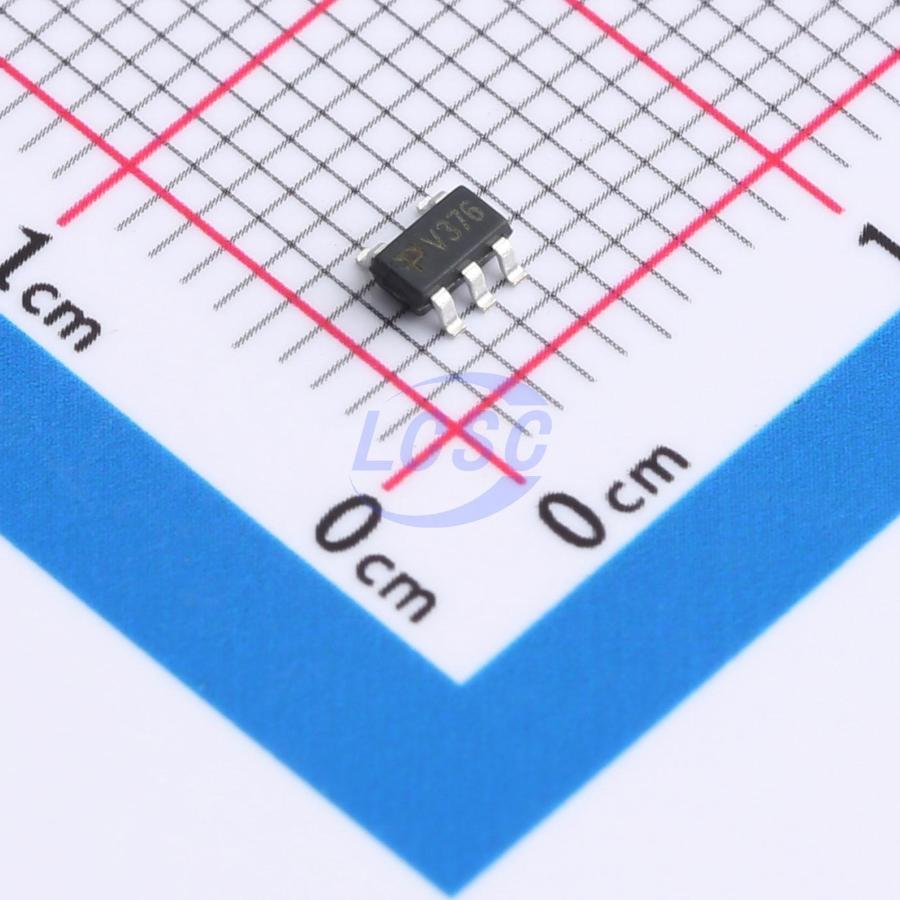

TPV376S5
30mA 2uV 5V/us 500pA 130dB 6MHz 600uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Ultra Low Noise Rail-to-Rail I/O CMOS Precision OPERATIONAL AMPLIFIERS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPV376S5
- Store part #
- C42370596
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,915 in stock
#C42370596
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.18 | ₹55.18 |
| 10+ | ₹48.95 | ₹489.50 |
| 30+ | ₹45.74 | ₹1,372.20 |
| 100+ | ₹42.73 | ₹4,273.00 |
| 500+ | ₹40.80 | ₹20,400.00 |
| 1,000+ | ₹39.94 | ₹39,940.00 |
1 × ₹55.18
₹55.18
excl. GST
₹65.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV376S5
₹55.18 for 1 + GST
Specifications
- Output Current
- 30mA
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -50℃~+125℃
- Ib - Input Bias Current
- 500pA
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Input Offset Voltage Drift(Vos TC)
- 30nV/℃
- Gain Bandwidth Product
- 6MHz
- Quiescent Current
- 600uA
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 6nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1V;1V~2.75V
- Single Supply
- 2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The TPV376 family represents a new generation of low-noise operational amplifiers, offering outstanding dc precision and ac performance. Rail-to-Rail input and output, low offset (2μV), low noise (6nV/√Hz), quiescent current of 600 μA, and a 6-MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range (2V to 5.5V) with excellent PSRR, making it attractive for applications that run directly from batteries without regulation.
Applications
- Temperature Sensors
- Battery-Powered Instruments
- Smoke/Gas/Environment Sensors
- Medical Equipment
- Portable Instruments and Mobile Device
- Active Filters
- Piezo Electrical Transducer Amplifier
- Sensor Interface
- Handheld Test Equipment
Key features
- General Purpose, Low Cost
- Gain Bandwidth Product: 6MHz
- Input Offset Voltage: 2μV (Typ)
- Ultra Low Noise: 6nV/√Hz at 1kHz
- Zero Drift: 0.03μV/°C (Typ)
- Input Bias Current: 500pA
- Rail-to-Rail Input and Output
- Single or Dual Supply Operation
- Supply Voltage Range: 2V to 5.5V
- Operating Temperature: -50°C~+125°C
- Type Package: SOT23-5
