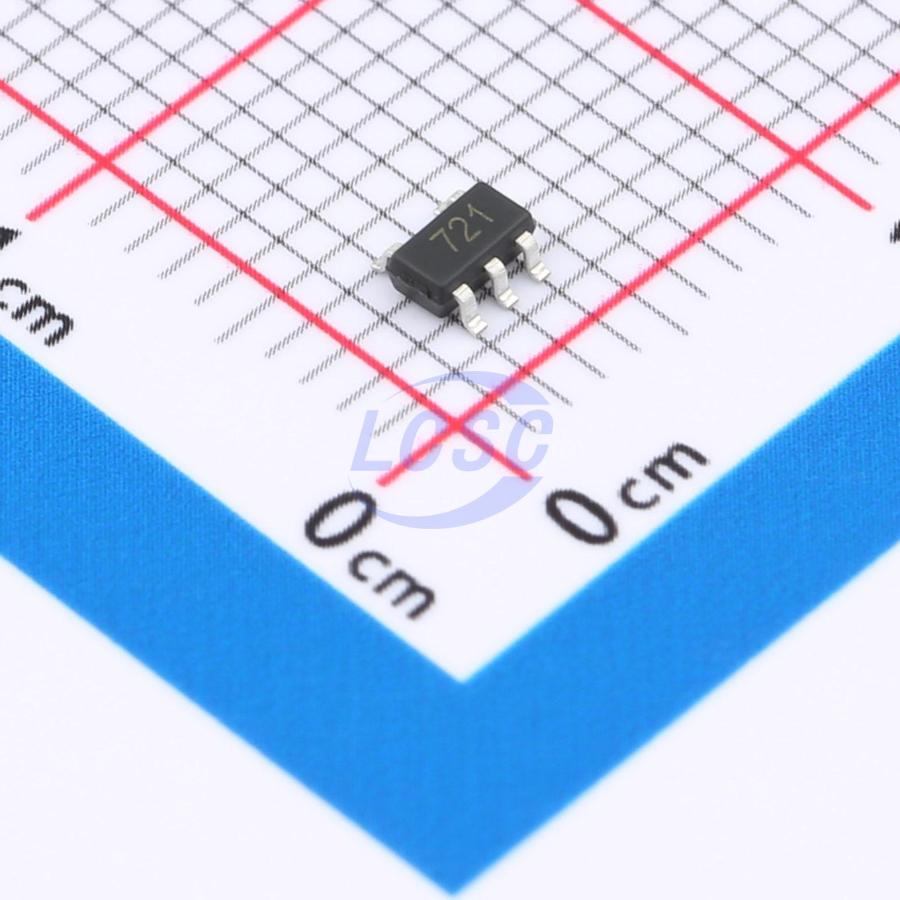

TPV721S5

50mA 1 5mV 4.5V/us 1pA 75dB 800uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

10MHZ,CMOSRail-to-RailOperationalAmplifier

Manufacturer: TECH PUBLIC
Manufacturer part #: TPV721S5
Store part #: C2827715
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,660 in stock

#C2827715

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹38.74	₹193.70
50+	₹31.08	₹1,554.00
150+	₹27.81	₹4,171.50
500+	₹23.72	₹11,860.00
3,000+	₹20.84	₹62,520.00
6,000+	₹19.74	₹1,18,440.00

Quantity (min 5, multiples of 5)

5 × ₹38.74

₹193.70

excl. GST

₹228.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPV721S5

₹193.70 for 5 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 75dB
Input Offset Voltage Drift(Vos TC): 300nV/℃
Quiescent Current: 800uA
Gain Bandwidth Product: 10MHz
Features: Enable/shutdown function;Built-in compensation
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

The TPV721/2 is wideband, low -noise, low-distortion dual operational amplifier, that offer rail-to-rail inputs/outputs and single-supply operation down to 2.2V. They draw 1.6mA of quiescent supply current while featuring ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (15nV/√Hz) and low input current-noise density (0.5fA/√Hz). These features make the devices an ideal choice for applications that require low distortion and/or low noise. These amplifiers have inputs and outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The maximum input offset of these amplifiers is less than 50M. The TPV721/22 are unity-gain stable with a gain-bandwidth product of 10MHz. The TPV721/22 is available in SOT23-5, SC70-5, SOP8 and MSOP8 packages. The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.

Applications

Portable Equipment
Mobile Communications
Smoke Detector
Sensor Interface
Medical Instrumentation
Battery-Powered Instruments
Handheld Test Equipment

Key features

Single-Supply Operation from +2.2V~+5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 10MHz (Typ.)
Low Input Bias Current: 10pA (Typ.)
Low Offset Voltage: 5mV (Max.)
Quiescent Current: 800μA per Amplifier (Typ.)
Operating Temperature: -40°C~+125°C
Available in SOT23-5, SC70-5, SOP8 and MSOP8
