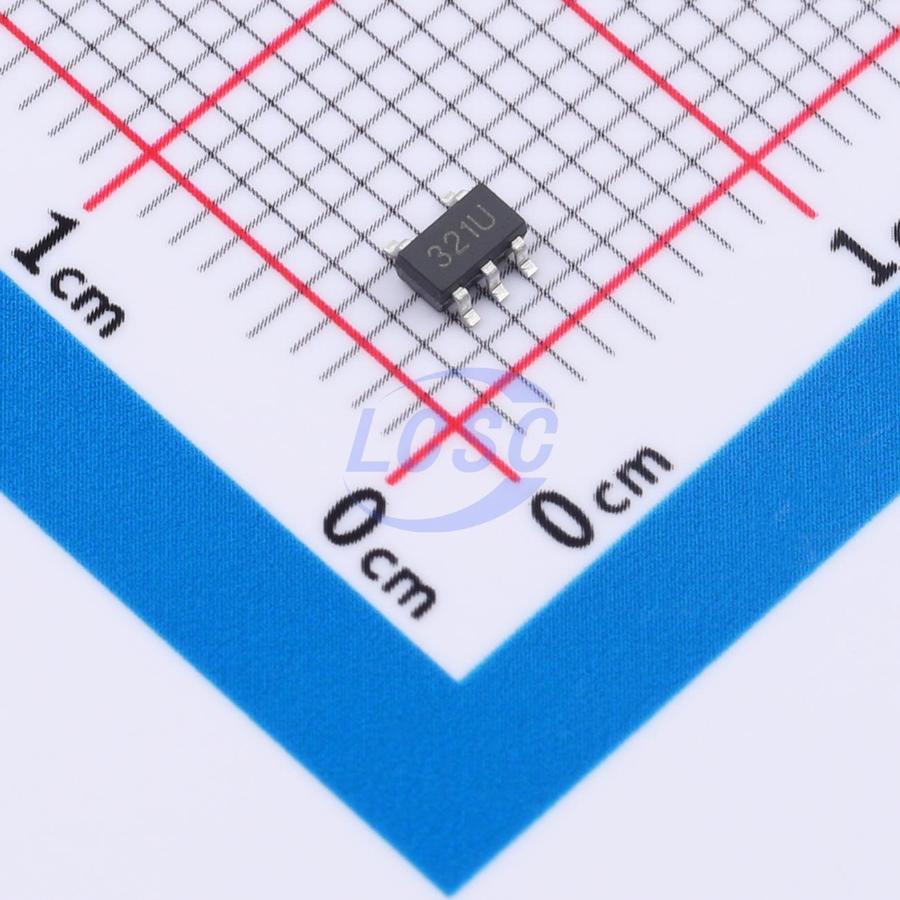

TECH PUBLIC

TS321US5

40mA 2mV 400V/ms 90dB 45nA 1MHz 100uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TS321US5
Store part #: C52817329
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,985 in stock

#C52817329

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.11	₹110.55
50+	₹17.28	₹864.00
150+	₹15.20	₹2,280.00
500+	₹12.61	₹6,305.00
3,000+	₹11.46	₹34,380.00
6,000+	₹10.77	₹64,620.00

Quantity (min 5, multiples of 5)

5 × ₹22.11

₹110.55

excl. GST

₹130.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS321US5

₹110.55 for 5 + GST

Specifications

Output Current: 40mA
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 3nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 45nA
Gain Bandwidth Product: 1MHz
Quiescent Current: 100uA
Dual Supply: -16V~-1.5V;1.5V~16V
Single Supply: 3V~32V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

This op-amp delivers high performance and cost efficiency for low-power systems. It features a high unity-gain bandwidth and a guaranteed slew rate of 0.4V/μs, with a quiescent current of only 100μA (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. Overall, the TS321 is a high-performance op-amp with low power consumption and a wide supply voltage range, designed to fit cost-effectively into a broad range of applications without occupying valuable board space.
