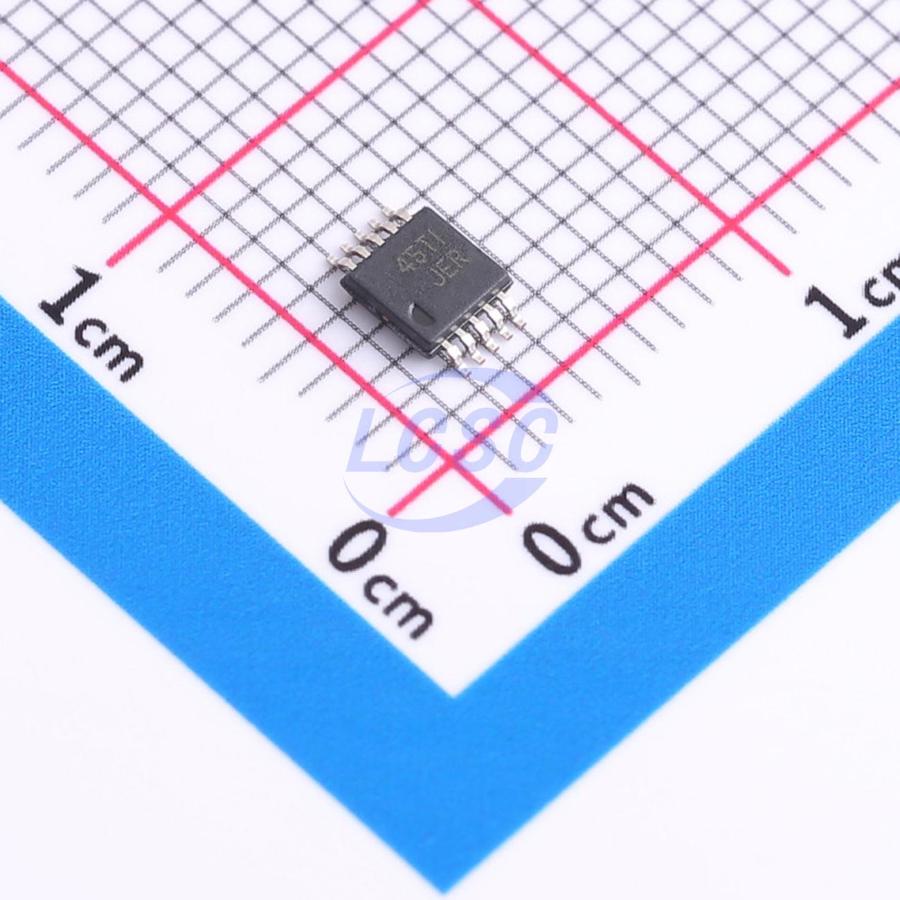

TS5A23159DGSR
2 1.1Ω 1.65V~5.5V VSSOP-10-0.5mm Analog Switches, Multiplexers, Demultiplexers RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
Dual SPDT Analog Switch, 2-Channel 2:1 Multiplexer/Demultiplexer
- Manufacturer
- TI
- Manufacturer part #
- TS5A23159DGSR
- Store part #
- C42751
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,381 in stock
#C42751
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.66 | ₹84.66 |
| 10+ | ₹67.94 | ₹679.40 |
| 30+ | ₹59.48 | ₹1,784.40 |
| 100+ | ₹51.01 | ₹5,101.00 |
| 500+ | ₹46.01 | ₹23,005.00 |
| 1,000+ | ₹43.42 | ₹43,420.00 |
1 × ₹84.66
₹84.66
excl. GST
₹99.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS5A23159DGSR
₹84.66 for 1 + GST
Specifications
- Features
- Power-off isolation;Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 2
- Ron
- 1.1Ω
- Voltage - Supply
- 1.65V~5.5V
- Con
- 55pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
The TS5A23159 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Applications
- Cell Phones
- PDAs
- Portable Instrumentation
- Audio and Video Signal Routing
- Low-Voltage Data-Acquisition Systems
- Communication Circuits
- Modems
- Hard Drives
- Computer Peripherals
- Wireless Terminals and Peripherals
Key features
- Isolation in Power-Down Mode, V₊ = 0
- Specified Break-Before-Make Switching
- Low ON-State Resistance (1 Ω)
- Control Inputs Are 5.5-V Tolerant
- Low Charge Injection
- Excellent ON-State Resistance Matching
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS5A23159#C34373752COSINE · MSOP-10 | COSINE | MSOP-10 | 1,320 | ₹32.51 · 1,320 in stock | View |
 | TPG23159M10#C48543254TECH PUBLIC · MSOP-10L | TECH PUBLIC | MSOP-10L | 3,595 | ₹44.21 · 3,595 in stock | View |
 | TS5A23160DGSR#C544328TI · VSSOP-10-0.5mm | TI | VSSOP-10-0.5mm | 1,113 | ₹108.38 · 1,113 in stock | View |
 | RS2227XN#C255478RUNIC · MSOP-10 | RUNIC | MSOP-10 | 9,315 | ₹41.54 · 9,315 in stock | View |
 | RS2228XN#C783420RUNIC · MSOP-10 | RUNIC | MSOP-10 | 3,880 | ₹43.29 · 3,880 in stock | View |
