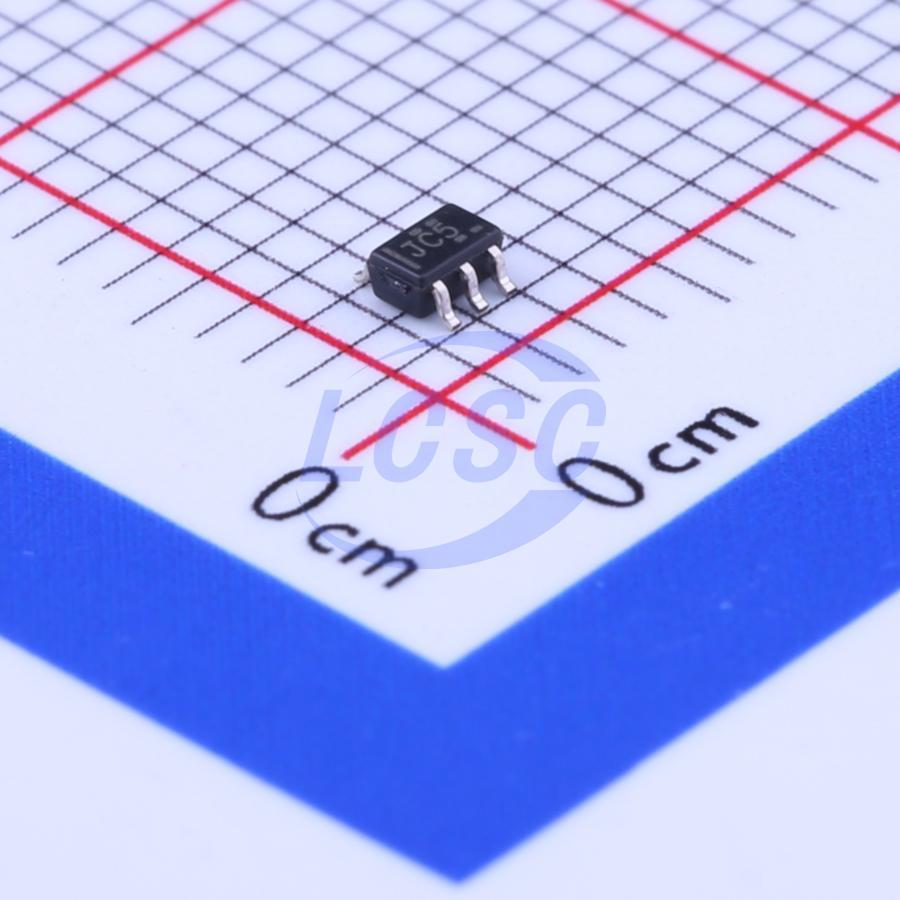

TS5A3157DCKR

10Ω 1 1.65V~5.5V SC-70-6(SOT-363) Analog Switches, Multiplexers, Demultiplexers RoHS

SC-70-6(SOT-363)ROHS3 CompliantActive

TS5A3157 10-Q SPDT Analog Switch

Manufacturer: TI
Manufacturer part #: TS5A3157DCKR
Store part #: C91307
Package / case: SC-70-6(SOT-363)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,045 in stock

#C91307

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹71.22	₹356.10
50+	₹58.62	₹2,931.00
150+	₹53.20	₹7,980.00
500+	₹46.25	₹23,125.00
2,500+	₹43.42	₹1,08,550.00
5,000+	₹40.17	₹2,00,850.00

Quantity (min 5, multiples of 5)

5 × ₹71.22

₹356.10

excl. GST

₹420.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3157DCKR

₹356.10 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Ron: 10Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Con: 17.5pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.07 g

Overview

The TS5A3157 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.

Applications

Sample-and-Hold Circuits
Battery-Powered Equipment
Audio and Video Signal Routing
Communication Circuits

Key features

Low ON-State Resistance (10 Ω)
Control Inputs Are 5-V Tolerant
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
2000-V Human-Body Model (A114-B, Class II)
1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
RS2057XC6#C237027RUNIC · SC-70-6	RUNIC	SC-70-6	4,650	₹11.56 · 4,650 in stock	View
ET3157-MS#C30602481MSKSEMI · SC-70-6	MSKSEMI	SC-70-6	2,010	₹9.27 · 2,010 in stock	View
HX3157-ST3#C47345559ZHHXDZ · SOT-363	ZHHXDZ	SOT-363	4,800	₹5.56 · 4,800 in stock	View
DIO3157ESC6#C444615DIOO · SC-70-6	DIOO	SC-70-6	1,215	₹14.79 · 1,215 in stock	View
SN74LVC1G3157DCKR#C38663TI · SC-70-6(SOT-363)	TI	SC-70-6(SOT-363)	2,14,220	₹10.36 · 2,14,220 in stock	View
