TECH PUBLIC

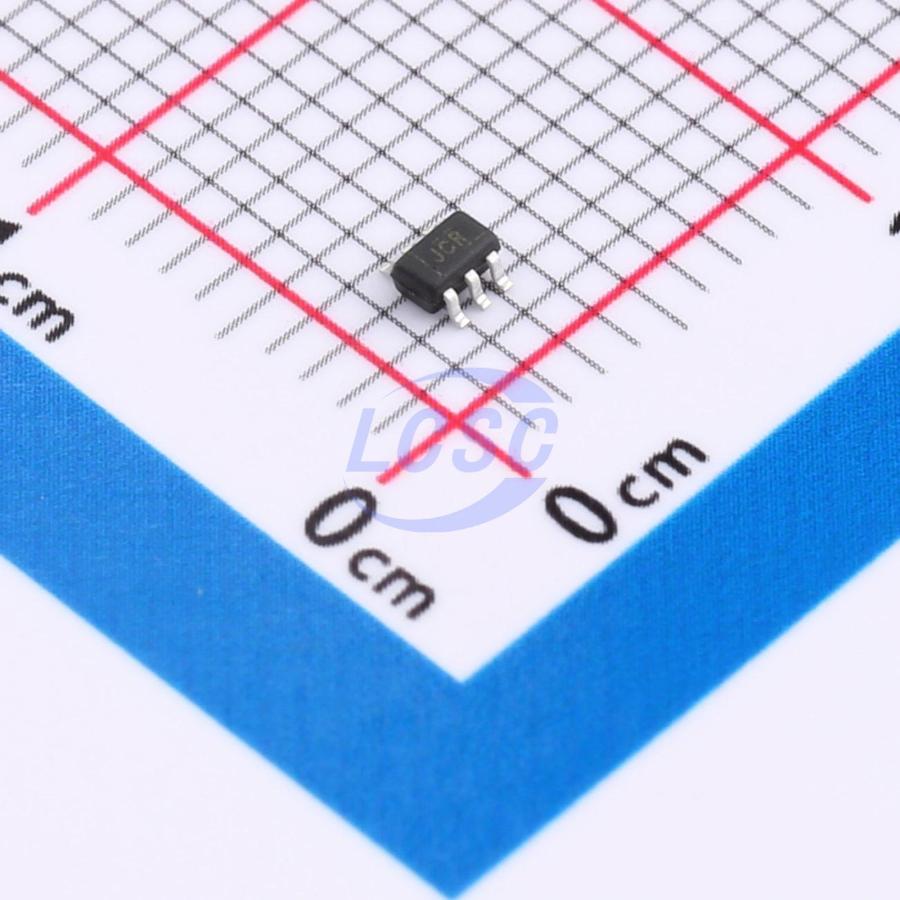

TS5A3157DCKR-TP

10Ω 1.5V~5.5V 1 SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TS5A3157DCKR-TP
Store part #: C46472322
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C46472322

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹8.93	₹89.30
100+	₹7.00	₹700.00
300+	₹6.03	₹1,809.00
3,000+	₹5.31	₹15,930.00
6,000+	₹4.72	₹28,320.00
9,000+	₹4.43	₹39,870.00

Quantity (min 10, multiples of 10)

10 × ₹8.93

₹89.30

excl. GST

₹105.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3157DCKR-TP

₹89.30 for 10 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 10Ω
Voltage - Supply: 1.5V~5.5V
Number of Channels: 1
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

A low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 10Ω
1.8V Logic Compatible Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @ 700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
