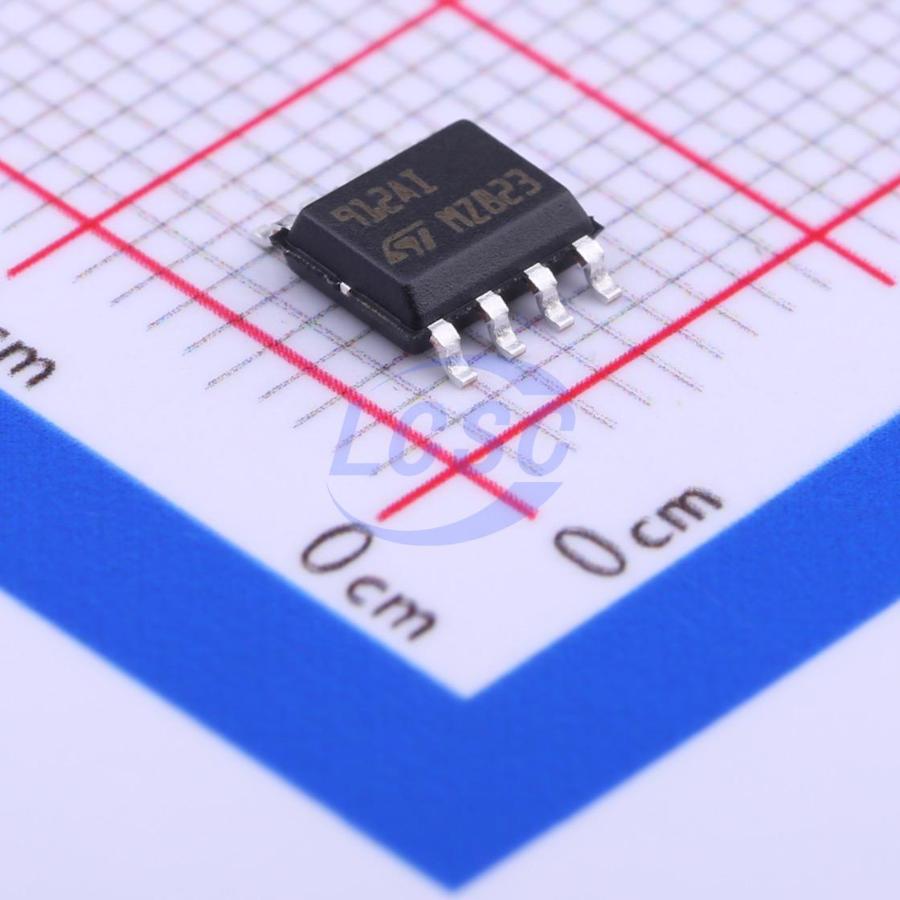

TS912AIDT
40mA 2 5mV 400V/ms 70dB 1pA 200uA 800kHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Rail-to-rail CMOS dual operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TS912AIDT
- Store part #
- C283508
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,179 in stock
#C283508
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.20 | ₹153.20 |
| 10+ | ₹127.34 | ₹1,273.40 |
| 30+ | ₹113.00 | ₹3,390.00 |
| 100+ | ₹96.92 | ₹9,692.00 |
| 500+ | ₹89.75 | ₹44,875.00 |
| 1,000+ | ₹86.48 | ₹86,480.00 |
1 × ₹153.20
₹153.20
excl. GST
₹180.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS912AIDT
₹153.20 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 200uA
- Gain Bandwidth Product
- 800kHz
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
The TS912 device is a rail-to-rail CMOS dual operational amplifier designed to operate with a single or dual supply voltage. The input voltage range V_icm includes the two supply rails V_CC⁺ and V_CC⁻. The output reaches V_CC⁻ + 30 mV, V_CC⁺ - 40 mV, with R_L = 10 kΩ and V_CC⁻ + 300 mV, V_CC⁺ - 400 mV with R_L = 600 Ω. This product offers a broad supply voltage operating range from 2.7 to 16 V and a supply current of only 200 μA/amp (V_CC = 3 V). Source and sink output current capability is typically 40 mA (at V_CC = 3 V), fixed by an internal limitation circuit.
Key features
- Rail-to-rail input and output voltage ranges
- Single (or dual) supply operation from 2.7 to 16 V
- Extremely low input bias current: 1 pA typ.
- Low input offset voltage: 2 mV max.
- Specified for 600 Ω and 100 Ω loads
- Low supply current: 200 μA/amplifier (V_CC = 3 V)
- Latch-up immunity
- ESD tolerance: 3 kV
- Spice macromodel included
