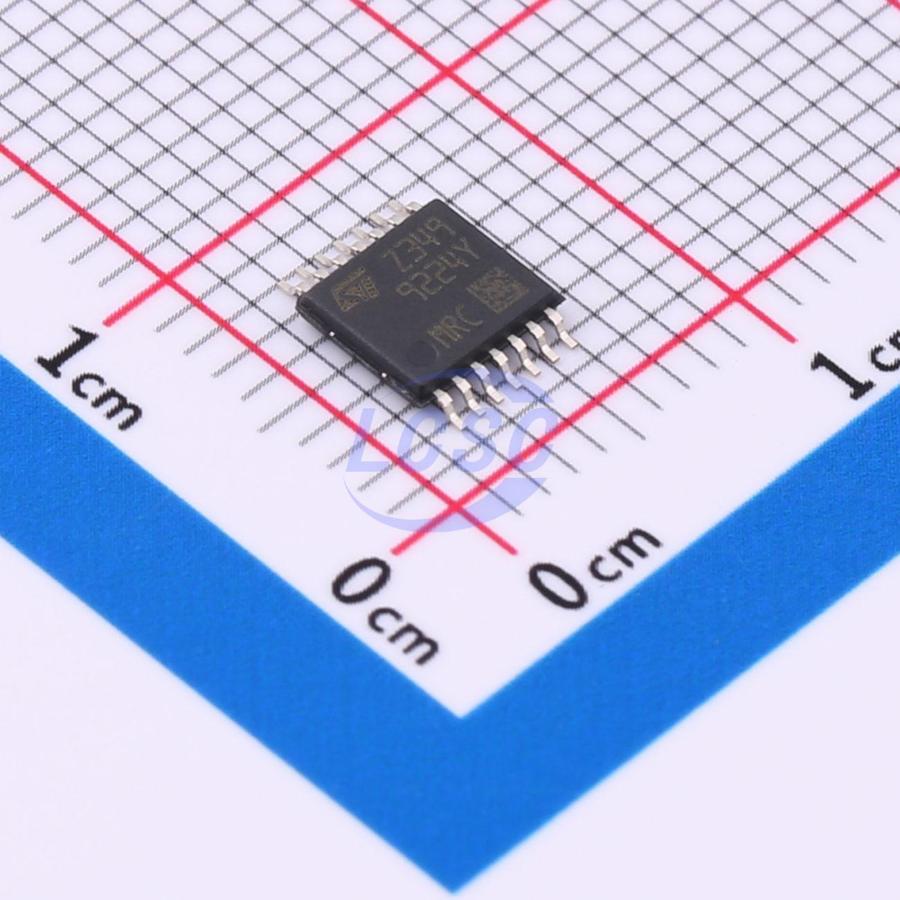

TS9224IYPT
80mA Four channels 500uV 1.3V/us 85dB 15nA 900uA 4MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
High-precision and high-stability dual-channel and quad-channel operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TS9224IYPT
- Store part #
- C2058187
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,804 in stock
#C2058187
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.34 | ₹163.34 |
| 10+ | ₹148.97 | ₹1,489.70 |
| 30+ | ₹140.19 | ₹4,205.70 |
| 100+ | ₹130.96 | ₹13,096.00 |
| 500+ | ₹126.89 | ₹63,445.00 |
| 1,000+ | ₹124.97 | ₹1,24,970.00 |
1 × ₹163.34
₹163.34
excl. GST
₹192.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS9224IYPT
₹163.34 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.3V/us
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 15nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 900uA
- Gain Bandwidth Product
- 4MHz
- Features
- Latch-up suppression
- Input Voltage Noise Density
- 9nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.249 g
Overview
The TS9222 and TS9224 are rail-to-rail dual and quad operational amplifiers optimized for precision, noise and stability, which make them suitable for a wide range of automotive and industrial applications. These devices deliver a high output current that allows low-load impedances to be driven. They are stable for capacitive loads up to 500 pF.
Applications
- Signal conditioning
- Automotive applications
- Headphone amplifiers
- Sound cards, multimedia systems
- Line and actuator drivers
- Servo amplifiers
Key features
- High precision: Vio = 500 μV max
- Able to drive capacitive loads up to 500 pF
- Rail-to-rail input and output
- Low noise: 9 nV/√Hz
- Low distortion
- High output current: 80 mA
- High speed: 4 MHz, 1.3 V/μs
- Operates from 2.7 V to 12 V
- ESD internal protection: 2 kV
- Latch-up immunity
- Automotive qualification
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV844MTX/NOPB#C181320TI · TSSOP-14 | TI | TSSOP-14 | 23 | ₹383.54 · 23 in stock | View |
| TS9224IPT#C155650ST · TSSOP-14 | ST | TSSOP-14 | On request | Price on request | Quote | |
