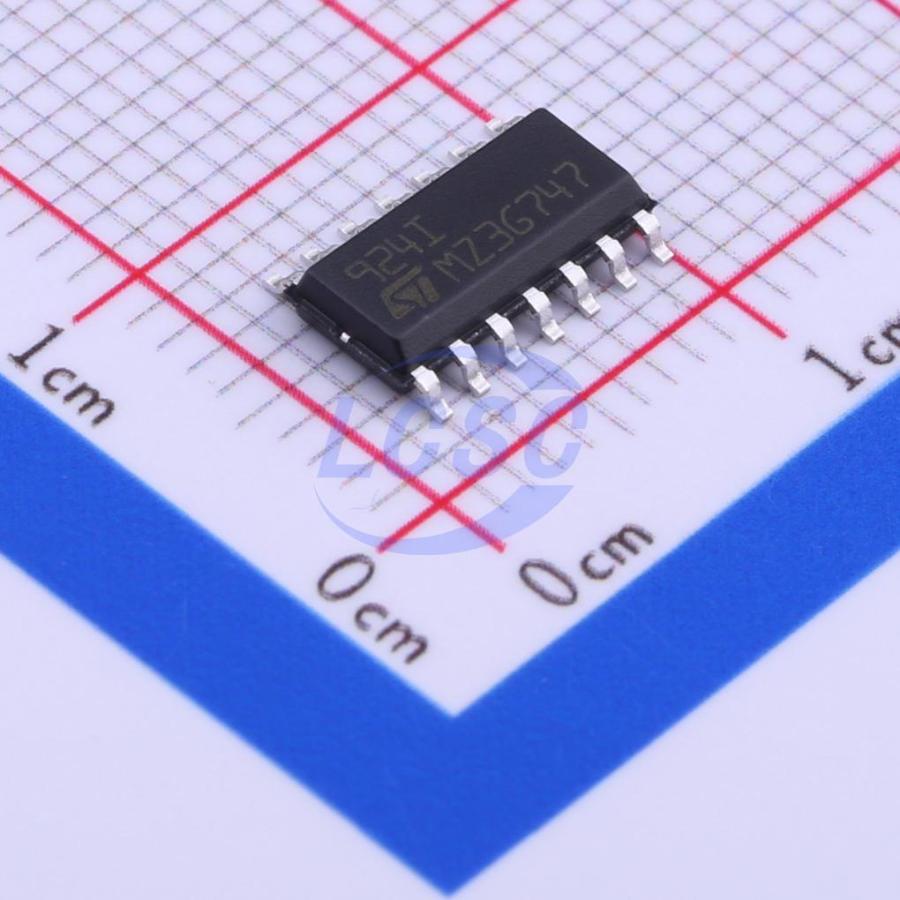

TS924IDT
80mA 4 3mV 1.3V/us 80dB 15nA 1mA 4MHz Rail-to-Rail Input, Rail-to-Rail Output SO-14 Instrumentation, Op Amps, Buffer Amps RoHS
SO-14ROHS3 CompliantActive
Rail-to-rail high output current operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TS924IDT
- Store part #
- C283514
- Package / case
- SO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,372 in stock
#C283514
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.74 | ₹155.74 |
| 10+ | ₹129.36 | ₹1,293.60 |
| 30+ | ₹114.92 | ₹3,447.60 |
| 100+ | ₹98.47 | ₹9,847.00 |
| 500+ | ₹91.24 | ₹45,620.00 |
| 1,000+ | ₹87.99 | ₹87,990.00 |
1 × ₹155.74
₹155.74
excl. GST
₹183.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS924IDT
₹155.74 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 1.3V/us
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 15nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 1mA
- Gain Bandwidth Product
- 4MHz
- Features
- ESD protection
- Input Voltage Noise Density
- 9nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.268 g
Overview
The TS924 and TS924A devices are rail-to-rail quad BiCMOS operational amplifiers optimized and fully specified for 2V and 5V operation. High output current allows low load impedances to be driven. The TS924 and TS924A devices exhibit a very low noise, low distortion, low offset, and high output current capability, making these devices an excellent choice for high-quality, low-voltage, and battery-operated audio systems. The devices are stable for capacitive loads up to 500 pF.
Applications
- Headphone amplifiers
- Piezoelectric speaker drivers
- Sound cards
- MPEG boards, multimedia systems
- Line drivers, buffers
- Cordless telephones and portable communication equipment
- Instrumentation with low noise as key factor
Key features
- Rail-to-rail input and output
- Low noise: 9 nV/√ Hz
- Low distortion
- High output current: 80 mA (able to drive 32 Ω loads)
- High-speed: 4 MHz, 1.3 V/μs
- Operating range from 2.7 V to 12 V
- Low input offset voltage: 900 μV max. (TS924A)
- ESD internal protection: 3 kV
- Latch-up immunity
- Macromodel included
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS924ID#C1235674ST · SO-14 | ST | SO-14 | 48 | ₹355.92 · 48 in stock | View |
| TS924IYDT#C2060283ST · SOIC-14 | ST | SOIC-14 | 22 | ₹278.16 · 22 in stock | View | |
| MCP6294T-E/SL#C626809MICROCHIP · SOIC-14 | MICROCHIP | SOIC-14 | 10 | ₹334.79 · 10 in stock | View | |
 | MCP6294-E/SL#C640912MICROCHIP · SOIC-14 | MICROCHIP | SOIC-14 | 7 | ₹404.49 · 7 in stock | View |
 | TLV2464IDR#C2861666TI · SOIC-14 | TI | SOIC-14 | 3 | ₹266.12 · 3 in stock | View |
