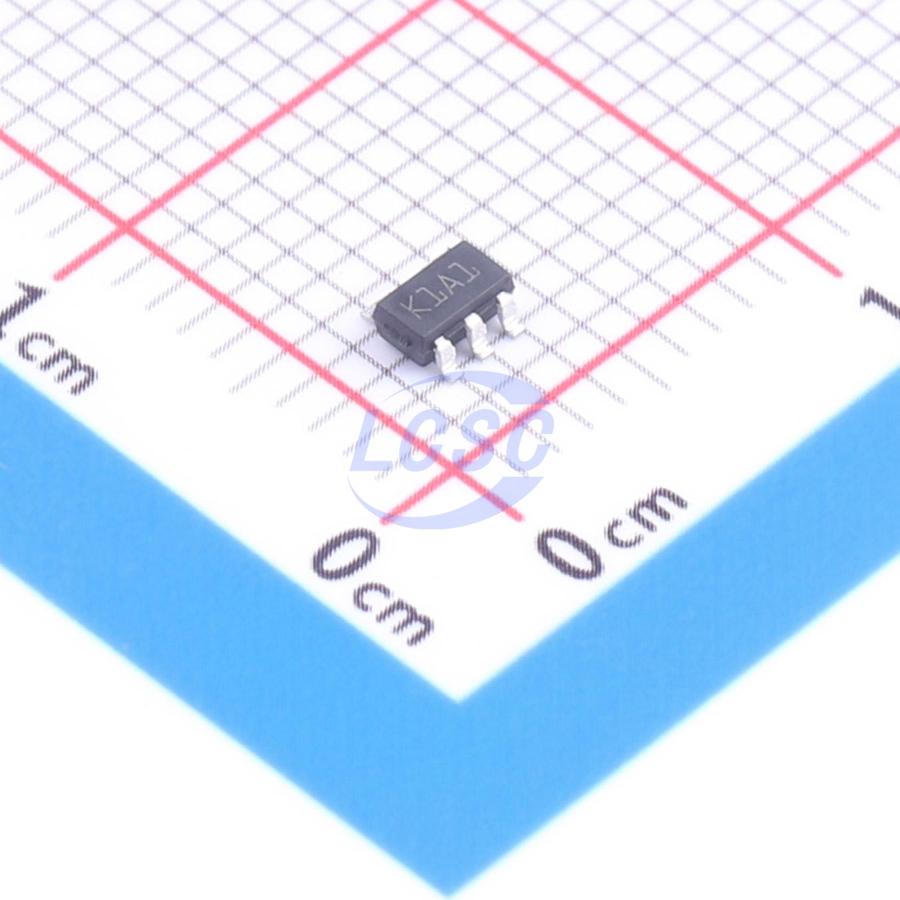

TS9511ILT
20mA 1 800uV 1V/us 90dB 30nA 800uA 3MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Precision rail-to-rail input/output 3 MHz single operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TS9511ILT
- Store part #
- C2058143
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
992 in stock
#C2058143
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹179.61 | ₹179.61 |
| 10+ | ₹151.95 | ₹1,519.50 |
| 30+ | ₹134.71 | ₹4,041.30 |
| 100+ | ₹116.93 | ₹11,693.00 |
| 500+ | ₹109.02 | ₹54,510.00 |
| 1,000+ | ₹105.44 | ₹1,05,440.00 |
1 × ₹179.61
₹179.61
excl. GST
₹211.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS9511ILT
₹179.61 for 1 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 30nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 800uA
- Gain Bandwidth Product
- 3MHz
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The TS9511 device is a single, precision rail-to-rail operational amplifier whose supply voltage range extends from 2.7 V to 12 V. Its high-precision performance associated with an SOT23-5 package make it suitable for a wide range of demanding applications, such as industrial, automotive, consumer, and computer applications.
Applications
- Signal conditioning
- Automotive applications
- Laptop/notebook computers
- Transformer/line drivers
- Personal entertainment (CD players)
- Portable communication (cell phones, pagers)
- Digital-to-analog converter buffers
- Portable headphone speaker drivers
Key features
- Good precision: 800 μv max.
- Rail-to-rail input and output
- Wide supply voltage range: 2.7 V to 12 V
- High-speed (3 MHz, 1 V/μs)
- Low consumption (900 μA at 3 V)
- Supply voltage rejection ratio: 85 dB
- Micropackage: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS9511IYLT#C2059126ST · SOT-23-5 | ST | SOT-23-5 | 140 | ₹167.55 · 140 in stock | View |
 | LMP7701MF/NOPB#C129312TI · SOT-23-5 | TI | SOT-23-5 | 887 | ₹224.78 · 887 in stock | View |
 | LMP7701MFX/NOPB#C2861492TI · SOT-23-5 | TI | SOT-23-5 | 2,327 | ₹233.68 · 2,327 in stock | View |
| TS9511RIYLT#C2058064ST · SOT-23-5 | ST | SOT-23-5 | On request | Price on request | Quote | |
