TIDatasheet (PDF)

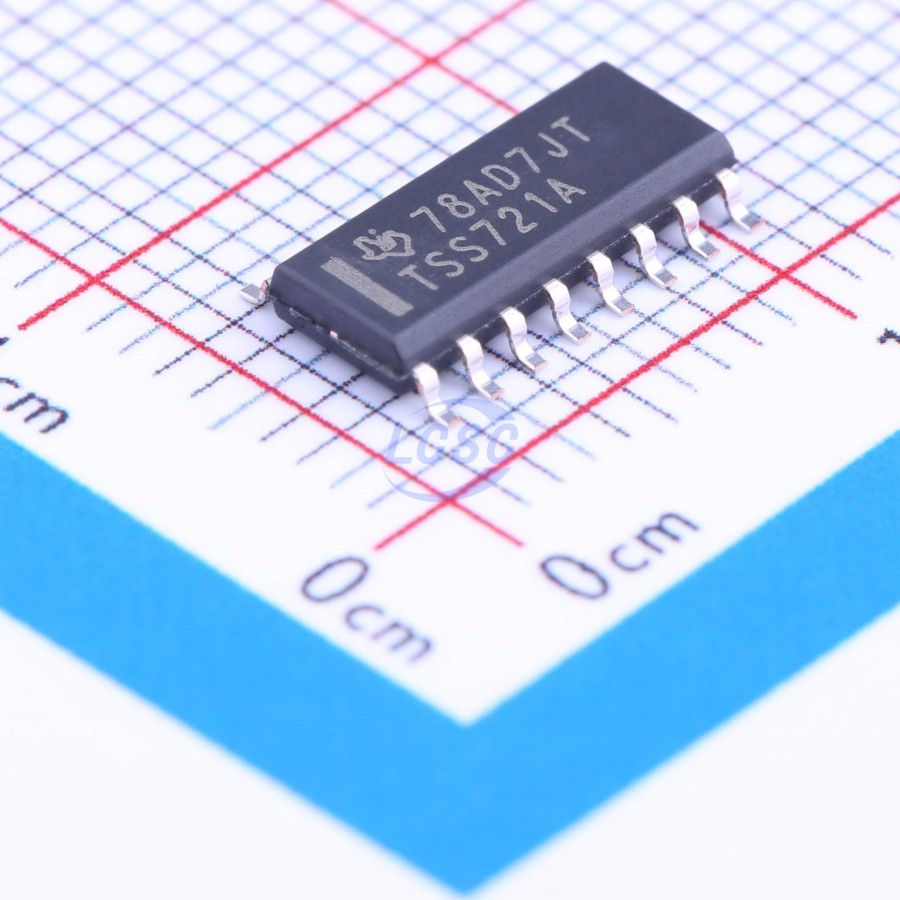

TSS721ADR
3.3V UART SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
Meter-Bus Transceiver
- Manufacturer
- TI
- Manufacturer part #
- TSS721ADR
- Store part #
- C34958
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,387 in stock
#C34958
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.30 | ₹227.30 |
| 10+ | ₹191.23 | ₹1,912.30 |
| 30+ | ₹171.24 | ₹5,137.20 |
| 100+ | ₹143.43 | ₹14,343.00 |
| 500+ | ₹133.42 | ₹66,710.00 |
| 1,000+ | ₹129.09 | ₹1,29,090.00 |
1 × ₹227.30
₹227.30
excl. GST
₹268.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSS721ADR
₹227.30 for 1 + GST
Specifications
- Voltage - Supply
- 3.3V
- Operating Temperature
- -25℃~+85℃
- Features
- Fail-safe;Interrupt generation
- Supply Current
- 650uA
- Interface
- UART
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
TSS721A is a single chip transceiver developed for Meter-Bus standard (EN1434-3) applications. The TSS721A interface circuit adjusts the different potentials between a slave system and the Meter-Bus master. The connection to the bus is polarity independent and supports full galvanic slave isolation with optocouplers. The circuit is supplied by the master via the bus. Therefore, this circuit offers no additional load for the slave battery. A power-fail function is integrated. The receiver has dynamic level recognition, and the transmitter has a programmable current sink.
Key features
- Meter-Bus Transceiver (for Slave) Meets Standard EN1434-3
- Receiver Logic With Dynamic Level Recognition
- Adjustable Constant-Current Sink via Resistor
- Polarity Independent
- Power-Fail Function
- Module Supply Voltage Switch
- 3.3-V Constant Voltage Source
- Remote Powering
- Up to 9600 Baud in Half Duplex for UART Protocol
- Slave Power Support: Supply From Meter-Bus via Output VDD or From Backup Battery Supply From Battery – Meter-Bus Active for Data Transmission Only
