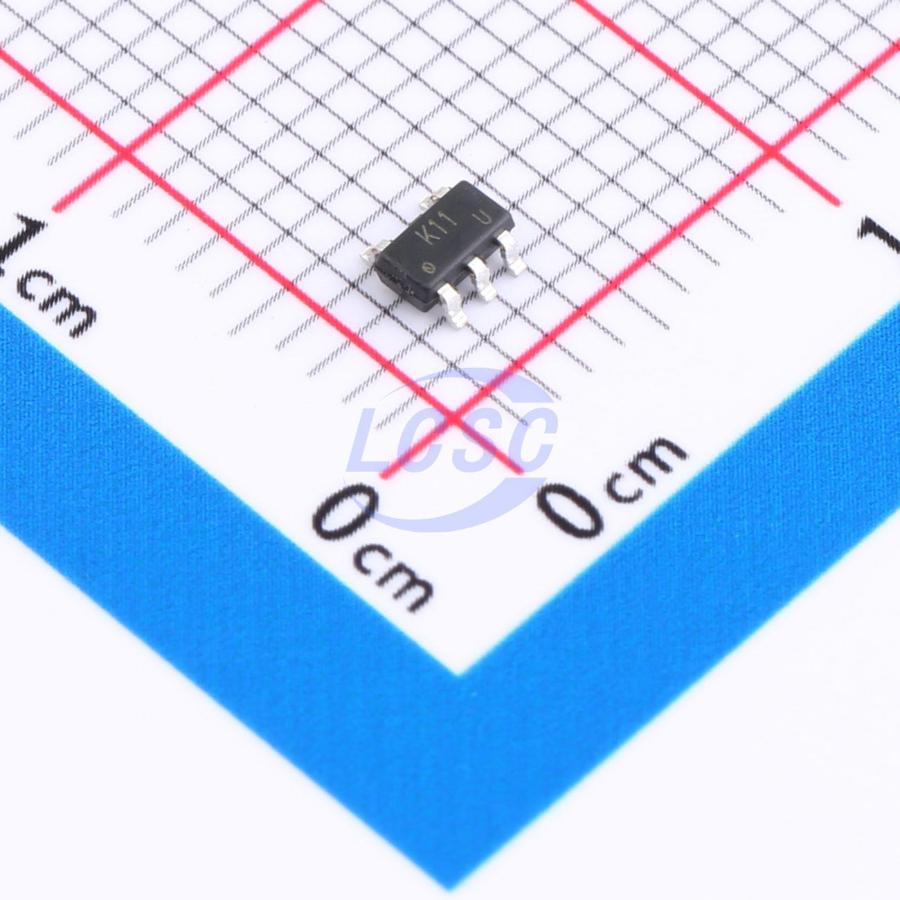

TSV611AILT(UMW)

58mA 1 800uV 40V/ms 71dB 1pA 10.5uA 120kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

Rail-to-rail input/output 10 μA, 120 kHz CMOS operational amplifiers

Manufacturer: UMW
Manufacturer part #: TSV611AILT(UMW)
Store part #: C22374960
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,810 in stock

#C22374960

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.06	₹105.30
50+	₹18.40	₹920.00
150+	₹17.27	₹2,590.50
500+	₹15.84	₹7,920.00
3,000+	₹15.20	₹45,600.00
6,000+	₹14.83	₹88,980.00

Quantity (min 5, multiples of 5)

5 × ₹21.06

₹105.30

excl. GST

₹124.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TSV611AILT(UMW)

₹105.30 for 5 + GST

Specifications

Output Current: 58mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 40V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 71dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 10.5uA
Gain Bandwidth Product: 120kHz
Input Voltage Noise Density: 105nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

UMW TSV61x series single-channel and dual-channel op-amps offer low-voltage, low-power operation with rail-to-rail input and output. The devices also feature ultra-low input bias current and low input offset voltage. The UMW TSV61x consumes only 10μA at 5V while delivering a gain bandwidth product of 120kHz. These characteristics make the TSV61x series ideal for sensor interfaces, battery-powered and portable applications, and active filtering.

Applications

Battery-powered applications
Smoke detectors
Proximity sensors
Portable devices

Key features

Rail-to-rail input and output
Low power consumption: typical 10μA at 5V
Low supply voltage: 1.5V to 5.5V
Gain bandwidth product: typical 120kHz
Unity-gain stable
Low input offset voltage: 800μV maximum (A grade)
Low input bias current: typical 1pA
Temperature range: -40℃ to 85℃
