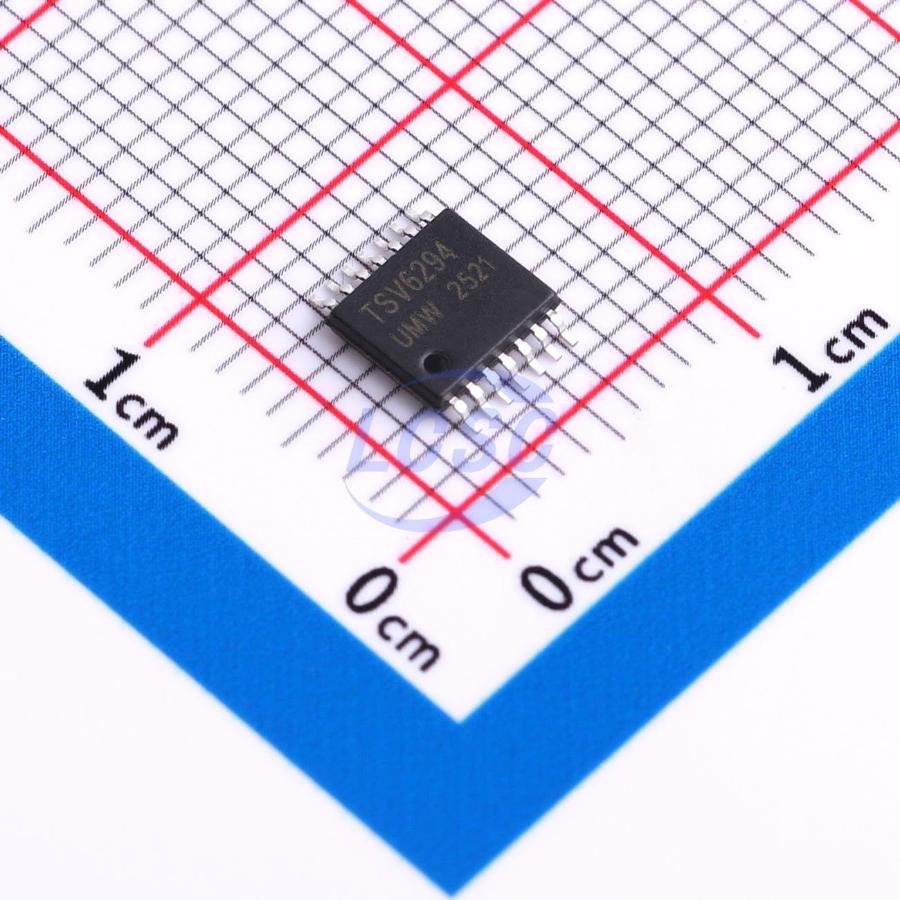

TSV6294AIPT(UMW)
74mA 4 800uV 500V/ms 74dB 1pA 29uA 1.3MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
Micropower, Wide Bandwidth CMOS Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- TSV6294AIPT(UMW)
- Store part #
- C22373395
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,995 in stock
#C22373395
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.20 | ₹211.00 |
| 50+ | ₹33.15 | ₹1,657.50 |
| 150+ | ₹29.28 | ₹4,392.00 |
| 500+ | ₹24.45 | ₹12,225.00 |
| 2,500+ | ₹22.29 | ₹55,725.00 |
| 4,000+ | ₹21.00 | ₹84,000.00 |
5 × ₹42.20
₹211.00
excl. GST
₹248.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TSV6294AIPT(UMW)
₹211.00 for 5 + GST
Specifications
- Output Current
- 74mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 74dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 29uA
- Gain Bandwidth Product
- 1.3MHz
- Features
- Enable/shutdown function;EMI filtering/RF suppression
- Input Voltage Noise Density
- 77nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
Overview
The TSV6292, TSV6294 dual and quad operational amplifiers offer a high bandwidth of 1.3 MHz while consuming only 29 μA. They must be used in a gain configuration (equal or above +4 or -3). The TSV6292, TSV6294 features low voltage, low power operation and rail-to-rail input and output. The devices also offer an ultra-low input bias current and low input offset voltage. These features make the TSV6292, TSV6294 family ideal for sensor interfaces, battery supplied and portable applications, as well as active filtering.
Applications
- Battery-powered applications
- Portable devices Signal conditioning
- Active filtering
- Medical instrumentation
Key features
- Rail-to-rail input and output
- Low power consumption: 29 μA typ, 36 μA max
- Low supply voltage: 1.5 - 5.5 V
- High gain bandwidth product: 1.3 MHz typ
- Stable when used in gain configuration
- Low power shutdown mode: 5 nA typ
- Good accuracy: 800 μv max (A version)
- Low input bias current: 1 pA typ
- EMI hardened operational amplifiers
- High tolerance to ESD: 4 kV HBM
- Extended temperature range: -40 to +125 °C
