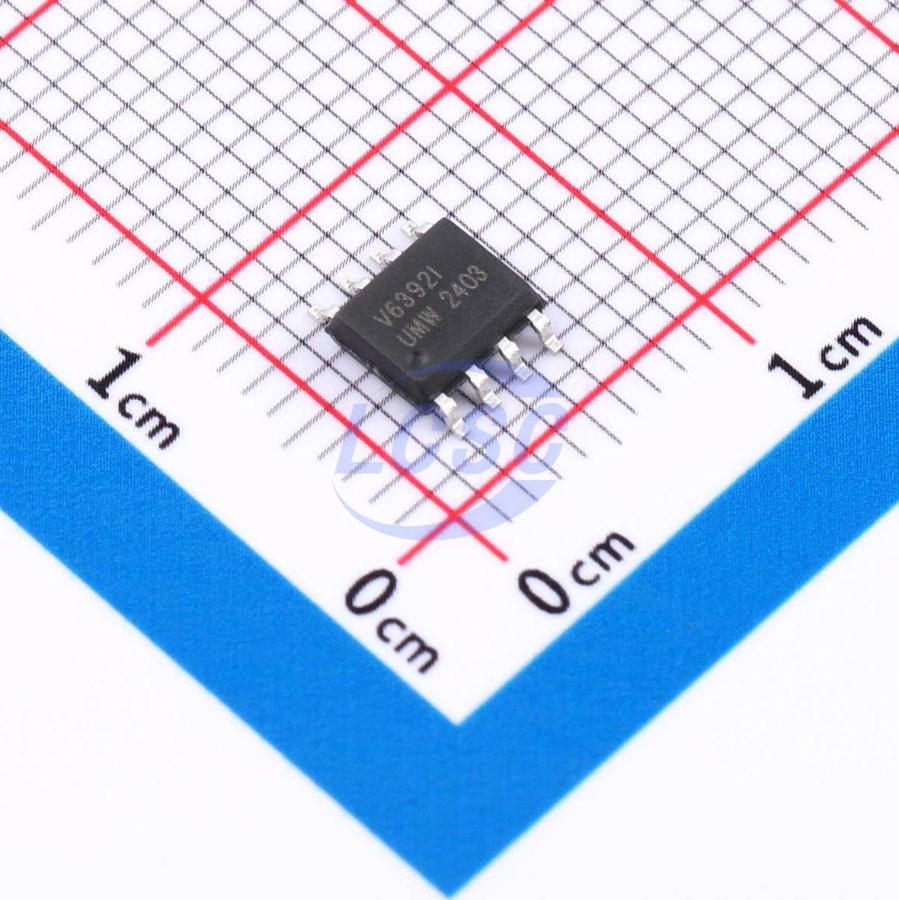

TSV6392IDT(UMW)

72mA 2 3mV 1.1V/us 74dB 1pA 60uA 2.4MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Micropower (60 uA), wide bandwidth (2.4 MHz) CMOS op amps

Manufacturer: UMW
Manufacturer part #: TSV6392IDT(UMW)
Store part #: C22374966
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C22374966

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹34.76	₹173.80
50+	₹27.31	₹1,365.50
150+	₹24.12	₹3,618.00
500+	₹20.14	₹10,070.00
2,500+	₹18.36	₹45,900.00
5,000+	₹17.29	₹86,450.00

Quantity (min 5, multiples of 5)

5 × ₹34.76

₹173.80

excl. GST

₹205.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TSV6392IDT(UMW)

₹173.80 for 5 + GST

Specifications

Output Current: 72mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 1.1V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 74dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 2.4MHz
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.186 g

Overview

The UMW TSV639x series dual and quad operational amplifiers offer low-voltage operation with rail-to-rail input and output. For gain-configured applications, the UMW TSV639x series delivers an excellent speed-to-power ratio, achieving a gain-bandwidth product of 2.4 MHz while consuming only 60 μA at 5V. The devices also feature ultra-low input bias current and a shutdown mode (UMW TSV6393, UMW TSV6395). These characteristics make the TSV639x series ideal for sensor interfaces, battery-powered and portable applications, and active filters.

Applications

Battery-powered applications
Portable devices
Signal conditioning

Key features

Rail-to-rail input and output
Low power consumption: typical 60 μA at 5V
Low supply voltage: 1.5 - 5.5V
Gain bandwidth product: typical 2.4 MHz, stable at gain of -3 or 4 and above
Low-power shutdown mode: typical 5 nA
Low offset voltage: 800 μV maximum (A version)
Low input bias current: typical 1 pA
EMI-hardened op-amp
High ESD tolerance: 4 kV HBM
Extended temperature range: -40℃ to 125℃
