UMWDatasheet (PDF)

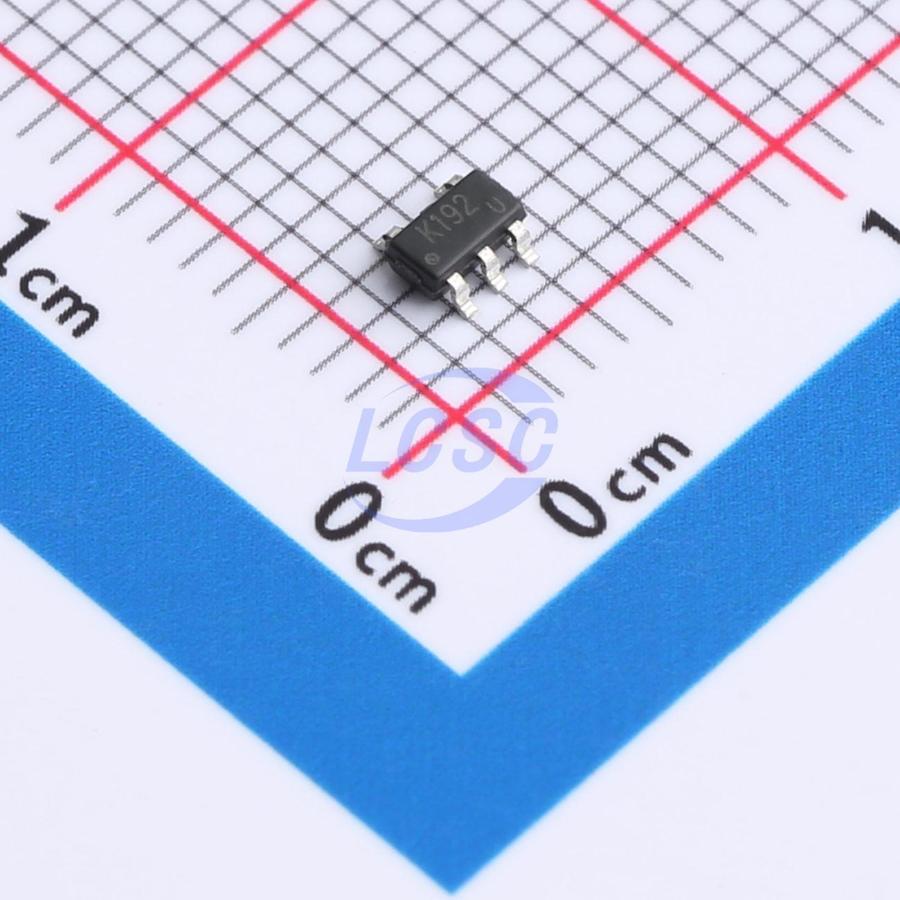

TSZ121IYLT(UMW)
18mA 1 1uV 0.19V/us 136dB 70pA 400kHz 31uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
Very High Accuracy Zero Drift Micropower 5V Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- TSZ121IYLT(UMW)
- Store part #
- C22368261
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,185 in stock
#C22368261
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.97 | ₹64.97 |
| 10+ | ₹50.63 | ₹506.30 |
| 30+ | ₹44.55 | ₹1,336.50 |
| 100+ | ₹36.73 | ₹3,673.00 |
| 500+ | ₹33.46 | ₹16,730.00 |
| 1,000+ | ₹31.29 | ₹31,290.00 |
1 × ₹64.97
₹64.97
excl. GST
₹76.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TSZ121IYLT(UMW)
₹64.97 for 1 + GST
Specifications
- Output Current
- 18mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.19V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 136dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Gain Bandwidth Product
- 400kHz
- Quiescent Current
- 31uA
- Features
- Zero drift / auto-zero;ESD protection
- Input Voltage Noise Density
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The TSZ121/122 series high-precision op-amps offer ultra-low input offset voltage with near-zero drift. The TSZ121 is a single-channel version and the TSZ122 is a dual-channel version, both with industry-standard-compatible pinouts. This series features rail-to-rail input and output, excellent power efficiency, and a 400kHz gain-bandwidth product, with supply current below 40μA at 5V. The devices also feature ultra-low input bias current. These characteristics make the TSZ121/122 series ideal for sensor interfaces, battery-powered applications, and portable applications.
Applications
- Battery-powered applications
- Portable devices
Key features
- Exceptional accuracy and stability: 5μV max offset voltage at 25°C, 8μV max over the full operating temperature range (-40°C to 125°C)
- Rail-to-rail input and output
- Low supply voltage: 1.8 - 5.5V
- Low power consumption: 40μA max at 5V supply
- Gain bandwidth product: 400kHz
- High ESD immunity: 4 kV HBM
- Extended operating temperature range: -40 to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA333AIDBVR(UMW)#C22365310UMW · SOT-23-5 | UMW | SOT-23-5 | 5,980 | ₹33.37 · 5,980 in stock | View |
