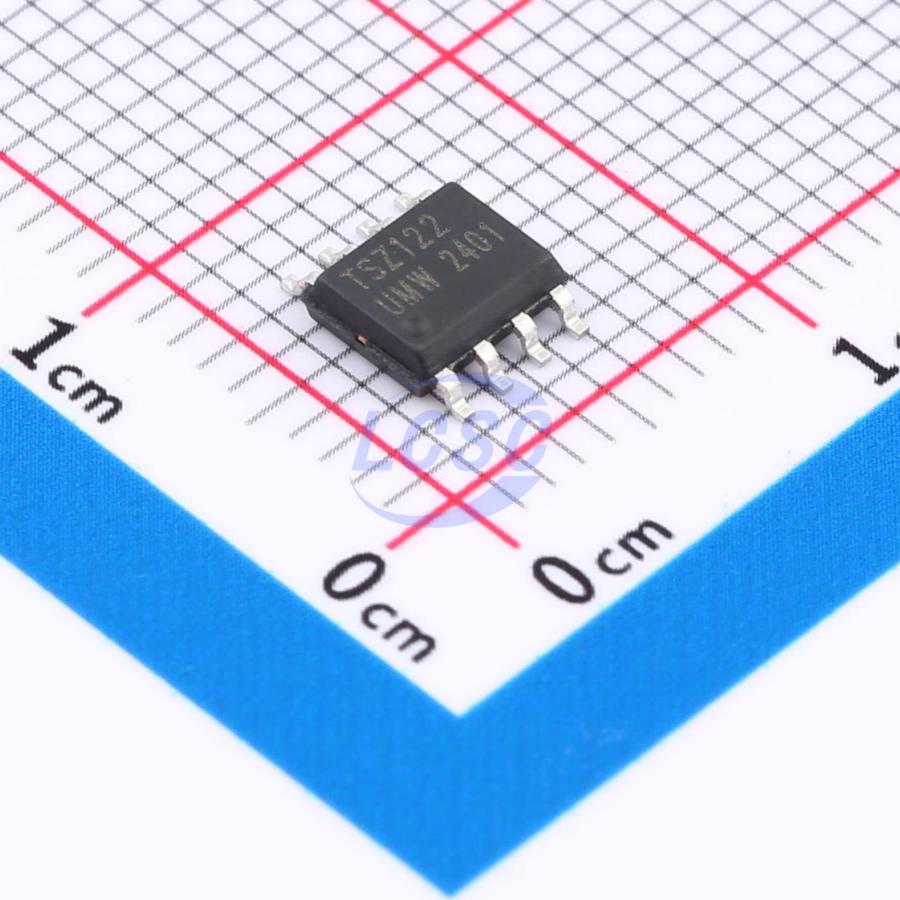

TSZ122IYDT(UMW)

18mA 2 8uV 0.19V/us 70pA 136dB 400kHz 31uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

High Precision Zero Drift Micropower 5V Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: TSZ122IYDT(UMW)
Store part #: C22469442
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,117 in stock

#C22469442

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹69.52	₹69.52
10+	₹54.32	₹543.20
30+	₹47.80	₹1,434.00
100+	₹39.54	₹3,954.00
500+	₹36.08	₹18,040.00
1,000+	₹33.90	₹33,900.00

Quantity (min 1)

1 × ₹69.52

₹69.52

excl. GST

₹82.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TSZ122IYDT(UMW)

₹69.52 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 18mA
Number of Channels: 2
Vos - Input Offset Voltage: 8uV
Slew Rate: 0.19V/us
Input Offset Current(Ios): 400pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 70pA
Common Mode Rejection Ratio(CMRR): 136dB
Input Offset Voltage Drift(Vos TC): 30nV/℃
Gain Bandwidth Product: 400kHz
Quiescent Current: 31uA
Features: Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.214 g

Overview

The TSZ121/122 series high-precision op-amps offer ultra-low input offset voltage with near-zero drift. The TSZ121 is a single-channel version and the TSZ122 is a dual-channel version, both with industry-standard-compatible pinouts. This series features rail-to-rail input and output, excellent power efficiency, and a 400kHz gain-bandwidth product, with supply current below 40μA at 5V. The devices also feature ultra-low input bias current. These characteristics make the TSZ121/122 series ideal for sensor interfaces, battery-powered applications, and portable applications.

Applications

Battery-powered applications
Portable devices

Key features

Exceptional accuracy and stability: 5μV max offset voltage at 25°C, 8μV max over the full operating temperature range (-40°C to 125°C)
Rail-to-rail input and output
Low supply voltage: 1.8 - 5.5V
Low power consumption: 40μA max at 5V supply
Gain bandwidth product: 400kHz
High ESD immunity: 4 kV HBM
Extended operating temperature range: -40 to 125°C
