TX5817

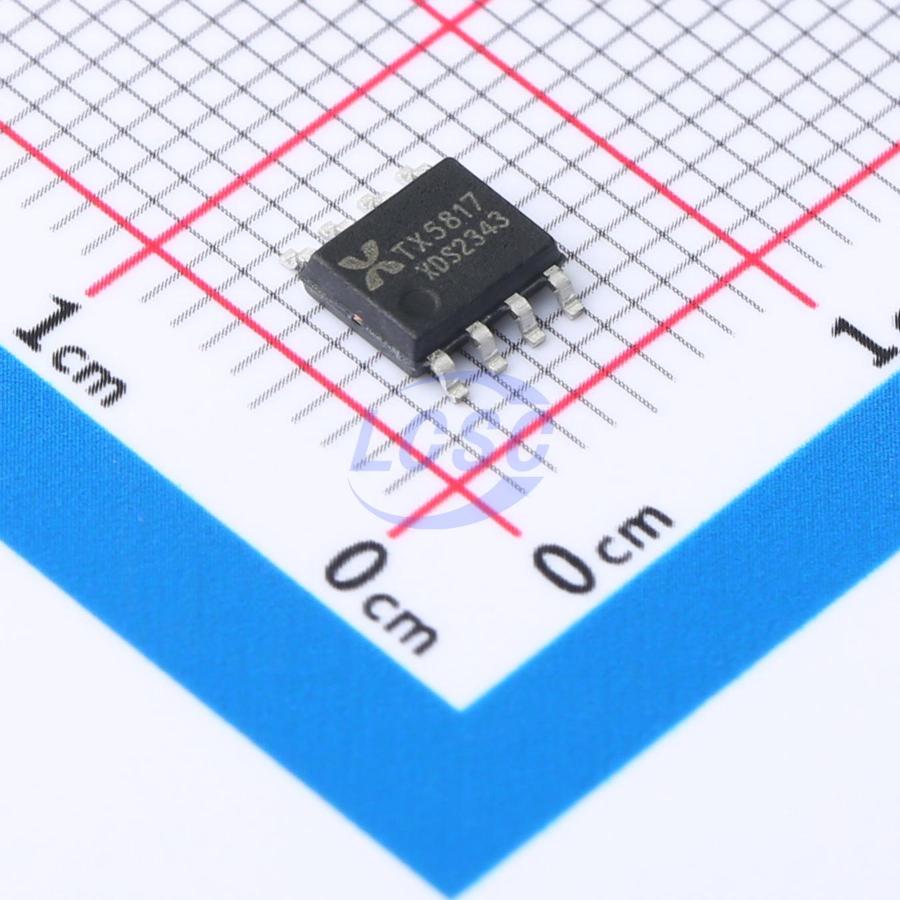

Battery Charging IC Lithium Battery ESOP-8
Dual-cell lithium battery charging management chip, with a withstand voltage of 26V and automatic recognition of 5V/9V adapters
- Manufacturer
- XDS
- Manufacturer part #
- TX5817
- Store part #
- C19273630
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,168 in stock
#C19273630
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.17 | ₹55.17 |
| 10+ | ₹43.45 | ₹434.50 |
| 30+ | ₹38.40 | ₹1,152.00 |
| 100+ | ₹32.10 | ₹3,210.00 |
| 500+ | ₹27.95 | ₹13,975.00 |
| 1,000+ | ₹26.32 | ₹26,320.00 |
1 × ₹55.17
₹55.17
excl. GST
₹65.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TX5817
₹55.17 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2mA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.7V~26V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 1.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.192 g
Overview
The TX5817 is a wide-voltage-input charge management IC designed specifically for dual-cell lithium battery charging, compatible with 5V and 9V adapters. The internal switching frequency can reach 1.1MHz, and the charging current can be set via an external resistor connected from the ISET pin to ground. It also features overvoltage shutdown, over-temperature shutdown, and input power protection. The IC supports both 5V and 9V adapter charging, automatically detecting whether the inserted adapter is 5V or 9V. When a 5V charger is detected, it operates in switching boost charging mode, supporting a maximum battery-side charging current of 1.5A; when a 9V charger is detected, it operates in linear buck charging mode, supporting a maximum battery-side charging current of 1A. The IC can adaptively adjust the charging current according to the adapter's current supply capability, preventing adapter overload while maximizing the adapter's current output capacity. It is suitable for various DC devices and standard USB charging equipment. A complete CC/CV charging profile is implemented: when the lithium battery voltage is below 5.8V, the system charges the battery in trickle mode; when the voltage exceeds 6V but remains below 8.2V, constant-current charging is applied; when the voltage is above 8.2V but below 8.4V, constant-voltage charging mode is engaged; charging terminates when the charging current drops below 50mA.
Applications
- Bluetooth speakers
- Walkie-talkies
- Smart home
- Power tools
Key features
- Built-in OVP
- Up to 26V input voltage rating with excellent surge immunity
- Auto-detection of 5V or 9V charger input
- Adaptive input current control
- Minimal external components, supports 2.2μH inductor
- Battery charging current up to 1.5A
- Adjustable constant charging current
- Trickle charge, CC, and CV charging modes
- Charge status indication
- NTC battery high/low temperature protection
- Spread-spectrum design for ultra-low EMI
- Built-in UVLO and over-temperature protection
- Lead-free, halogen-free package, ESOP8
