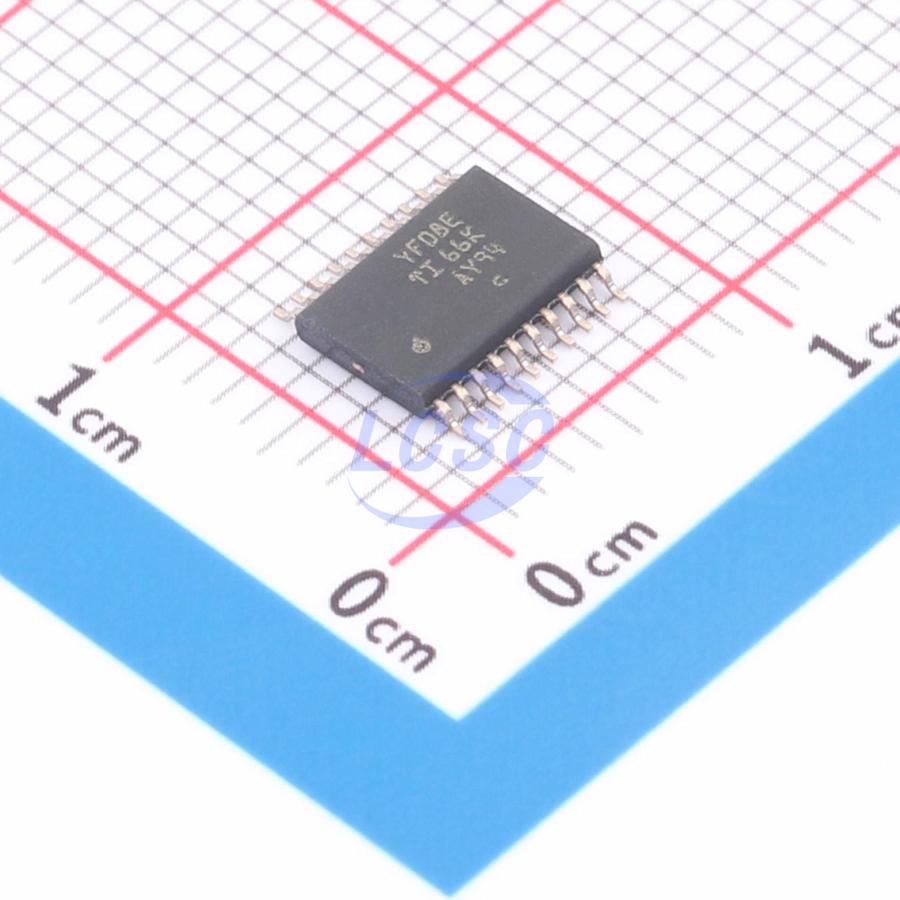

TXS0108EPWR

This 8- bit noninverting translator uses two separate configurable power- supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65V to 5.5V. This allows for low- voltage bidirectional translation between any of the 1.2- V, 1.5- V, 1.8- V, 2.5- V, 3.3- V, and 5- V voltage nodes. When the output- enable (OE) input is low, all outputs are placed in the high- impedance state. To ensure the high- impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current- sourcing capability of the driver.

Applications

• level-translation applications for interfacing devices or systems operating at different interface voltages with one another
• applications where an open-drain driver is connected to the data I/Os
• applications where a push-pull driver is connected to the data I/Os
• translation applications (e.g. MMC Card Interfaces) that require the system to start out in a low-

Key features

• No Direction-Control Signal Needed
• Max Data Rates
• 60 Mbps (Push Pull)
• 2 Mbps (Open Drain)
• 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
• No Power-Supply Sequencing Required – Either VCCA or VCCB Can Be Ramped First
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 (A Port)
• 2000-V Human-Body Model (A114-B)
• 150-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)
• ±8-kV Contact Discharge
• ±6-kV Air-Gap Discharge
