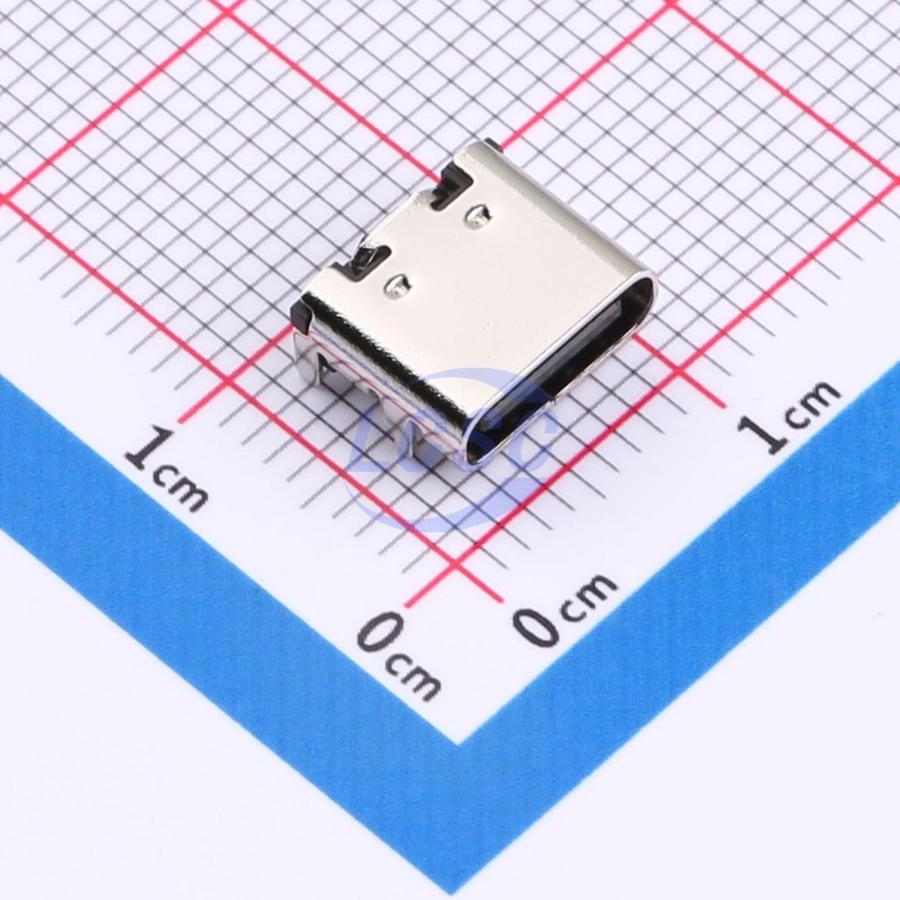

TYPE-C 16PIN 2MD(073)

USB-C (USB TYPE-C) Receptacle Connector 16 Position Surface Mount, Right Angle

PopularSMDROHS CompliantActive

CONN RCPT Type-C 16POS SMD R/A

Manufacturer: SHOU HAN
Manufacturer part #: TYPE-C 16PIN 2MD(073)
Store part #: C2765186
Package / case: SMD
Category: USB, DVI, HDMI Connector Assemblies
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,39,700 in stock

#C2765186

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹9.92	₹198.40
200+	₹7.99	₹1,598.00
1,000+	₹6.76	₹6,760.00
2,000+	₹5.94	₹11,880.00
10,000+	₹5.65	₹56,500.00
20,000+	₹5.45	₹1,09,000.00

Quantity (min 20, multiples of 20)

20 × ₹9.92

₹198.40

excl. GST

₹234.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

TYPE-C 16PIN 2MD(073)

₹198.40 for 20 + GST

Specifications

Number of Ports: 1
Number of Contacts: 16P
Connector Type: Type-C
Voltage Rating: 5V
Operating Temperature: -25℃~+85℃
Length: 7.35mm
Mounting Type: Surface Mount, Right Angle
Gender: Female

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.817 g

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SH-U262-161N-4BVC11#C22383468SHOU HAN · SMD	SHOU HAN	SMD	12,735	₹11.06 · 12,735 in stock	View
TYPE-C16P3MDDGP073#C2965608SHOU HAN · SMD	SHOU HAN	SMD	5,695	₹15.27 · 5,695 in stock	View
TYPE-C16PIN#C393939SHOU HAN · SMD	SHOU HAN	SMD	3,79,960	₹8.24 · 3,79,960 in stock	View
TYPE-C 16P(073)#C668624SHOU HAN · SMD	SHOU HAN	SMD	46,495	₹13.06 · 46,495 in stock	View
TYPE-C-3.1-16PIN#C7507405SHOU HAN · SMD	SHOU HAN	SMD	14,000	₹9.46 · 14,000 in stock	View

Questions about TYPE-C 16PIN 2MD(073)

What Is the Minimum Ordering Quantity (MOQ) and Packaging Format?

The component is available in Cut Tape packaging with a minimum order quantity of 20 pieces. For large-scale manufacturing, it can also be purchased in standard full reels of 1,000 pieces.

What Is the Operational Temperature Range for This Part?

The connector is designed to operate reliably within a temperature range of -25°C to +85°C, making it appropriate for most commercial and consumer electronics environments.

What Is the PIN Configuration of This USB-C Receptacle?

It is a 16-pin (16POS) female receptacle. The 16-pin layout provides full support for charging, USB 2.0 data transfer channels (D+ and D−), Configuration Channel pins (CC1 and CC2), and Sideband Use pins (SBU1 and SBU2).

How Is This Component Mounted to a Printed Circuit Board (PCB)?

This is a Surface Mount (SMD / SMT) connector designed for a Right Angle orientation, meaning it sits flat on the edge of the board for side-entry cable connections.

What Is the Current and Voltage Rating for This USB-C Connector?

The connector features a power current rating of 5A and a voltage rating of 5V, making it suitable for standard power delivery and data transfer applications.
