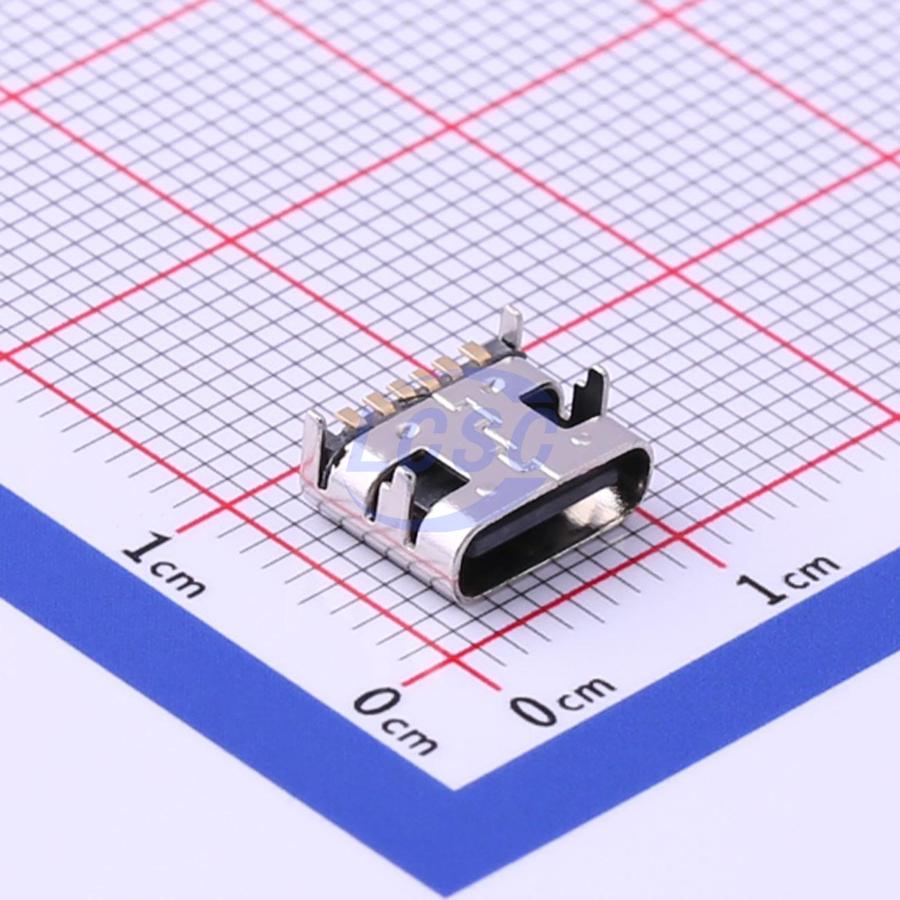

TYPE-C 6P(073)
USB-C (USB TYPE-C) Receptacle Connector 6 Position Surface Mount, Right Angle
PopularSMDROHS CompliantActive
CONN RCPT USB 3.1 Type-C 6POS SMD R/A
- Manufacturer
- SHOU HAN
- Manufacturer part #
- TYPE-C 6P(073)
- Store part #
- C668623
- Package / case
- SMD
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,63,570 in stock
#C668623
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.37 | ₹53.70 |
| 100+ | ₹4.37 | ₹437.00 |
| 300+ | ₹3.85 | ₹1,155.00 |
| 1,500+ | ₹3.25 | ₹4,875.00 |
| 4,500+ | ₹3.11 | ₹13,995.00 |
| 10,500+ | ₹3.00 | ₹31,500.00 |
10 × ₹5.37
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TYPE-C 6P(073)
₹53.70 for 10 + GST
Specifications
- Number of Ports
- 1
- Number of Contacts
- 6P
- Connector Type
- Type-C
- Voltage Rating
- 5V
- Operating Temperature
- -30℃~+80℃
- Length
- 6.8mm
- Mounting Type
- Surface Mount, Right Angle
- Gender
- Female
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.501 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TYPE-C 6PIN#C7507406SHOU HAN · SMD | SHOU HAN | SMD | 35,860 | ₹7.12 · 35,860 in stock | View |
 | SH-U262-061N-4BVC11#C22383472SHOU HAN · SMD | SHOU HAN | SMD | 6,490 | ₹6.62 · 6,490 in stock | View |
 | TYPE-C 6P(040)#C2887422SHOU HAN · SMD | SHOU HAN | SMD | 13,110 | ₹7.59 · 13,110 in stock | View |
 | TYPE-C 6P QTWT#C7507407SHOU HAN · SMD | SHOU HAN | SMD | 280 | ₹8.55 · 280 in stock | View |
 | TYPE-C 6P#C456012SHOU HAN · SMD | SHOU HAN | SMD | 6,61,110 | ₹5.19 · 6,61,110 in stock | View |
Questions about TYPE-C 6P(073)
Is This USB Type-C Receptacle Compatible With Standard 24-Pin Type-C Cables?
Yes, it is fully compatible. While this connector physically only breaks out 6 pins (typically for power delivery and basic charging), it utilizes the standard USB Type-C interface, meaning any standard Type-C cable can be plugged into it safely.
How Can I Find Alternative Parts on LCSC if This Item Goes Out of Stock?
You can easily find suitable replacements by clicking the "Show similar products" link on the LCSC product page, which filters other female, right-angle, surface-mount USB Type-C connectors to match your design requirements.
What Are the Ideal Application Scenarios for a 6-Pin Type-C Connector?
This 6-pin configuration is ideally suited for hardware applications that only require power and charging capabilities without data transfer, such as electronic toys, rechargeable flashlights, power banks, and simple IoT devices.
What Are the Maximum Voltage and Current Ratings Under Technical Specifications?
According to the product specifications, this connector has a rated voltage of 5V and a rated current of 3A, making it perfect for standard 15W charging applications.
What Surface Mount Techniques Should Be Used During PCB Implementation?
This is a Right Angle, Surface Mount (SMD) component. It should be implemented using standard SMT reflow soldering processes, ensuring proper alignment with the PCB landing pads as designated in the manufacturer's footprint schema.
