SHOU HAN

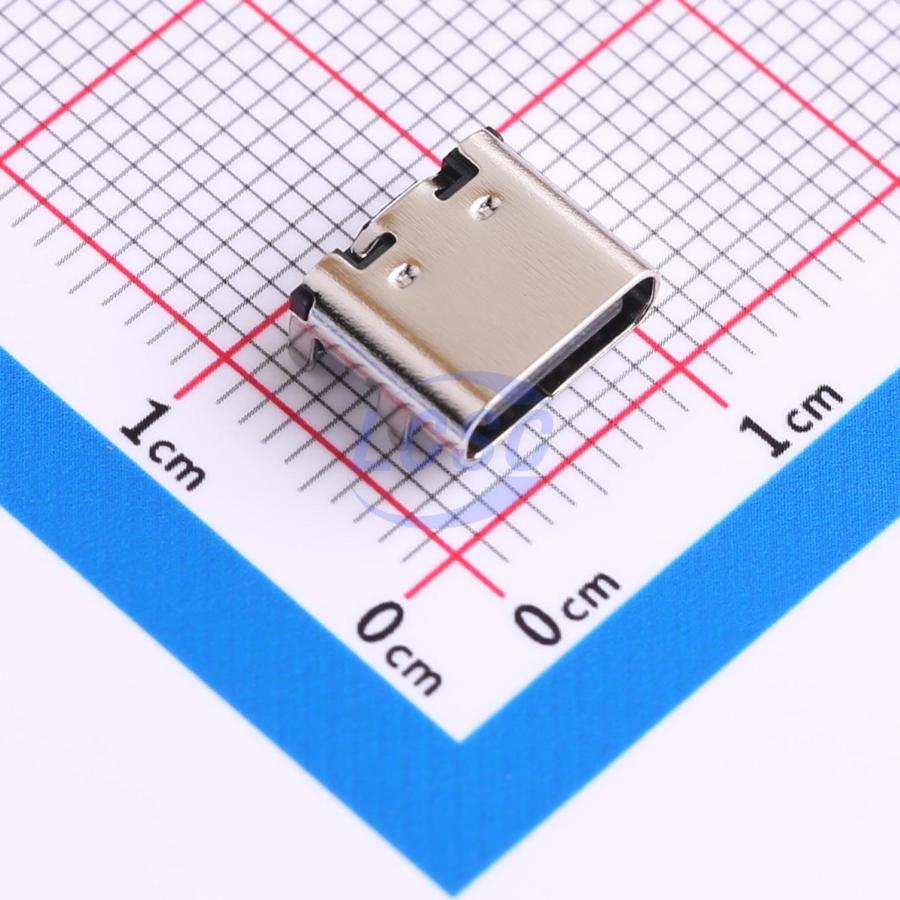

TYPE-C 16PIN 2MD(073)USB-C (USB TYPE-C) Receptacle Connector 16 Position Surface Mount, Right Angle
From
₹8.25
8,39,700 in stock
SHOU HANDatasheet (PDF)
TYPE-C16PIN
USB-C (USB TYPE-C) Receptacle Connector 16 Position Surface Mount, Right Angle
PopularSMDROHS CompliantActive
CONN RCPT USB 3.1 Type-C 16POS SMD R/A
- Manufacturer
- SHOU HAN
- Manufacturer part #
- TYPE-C16PIN
- Store part #
- C393939
- Package / case
- SMD
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,79,960 in stock
#C393939
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.85 | ₹68.50 |
| 100+ | ₹5.38 | ₹538.00 |
| 300+ | ₹4.72 | ₹1,416.00 |
| 1,000+ | ₹4.38 | ₹4,380.00 |
| 5,000+ | ₹4.19 | ₹20,950.00 |
| 10,000+ | ₹4.06 | ₹40,600.00 |
10 × ₹6.85
₹68.50
excl. GST
₹80.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TYPE-C16PIN
₹68.50 for 10 + GST
Specifications
- Number of Ports
- 1
- Number of Contacts
- 16P
- Connector Type
- Type-C
- Voltage Rating
- 5V
- Operating Temperature
- -25℃~+85℃
- Length
- 7.35mm
- Mounting Type
- Surface Mount, Right Angle
- Gender
- Female
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.698 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SH-U262-161N-4BVC11#C22383468SHOU HAN · SMD | SHOU HAN | SMD | 12,735 | ₹9.20 · 12,735 in stock | View |
 | TYPE-C 16PIN 2MD(073)#C2765186SHOU HAN · SMD | SHOU HAN | SMD | 8,39,700 | ₹8.25 · 8,39,700 in stock | View |
 | TYPE-C16P3MDDGP073#C2965608SHOU HAN · SMD | SHOU HAN | SMD | 5,695 | ₹12.69 · 5,695 in stock | View |
 | TYPE-C 16P(073)#C668624SHOU HAN · SMD | SHOU HAN | SMD | 46,495 | ₹10.86 · 46,495 in stock | View |
 | TYPE-C-3.1-16PIN#C7507405SHOU HAN · SMD | SHOU HAN | SMD | 14,000 | ₹7.87 · 14,000 in stock | View |
Questions about TYPE-C16PIN
What Should Be Considered During the Soldering and Assembly Process?
Since this is a surface-mount device (SMD) with a right-angle orientation, proper solder paste application and reflow profiling are essential to secure both the 16 signal pins and the mechanical structural pads to the PCB. Care should be taken not to exceed the recommended reflow temperature to prevent damage to the internal plastic housing.
What Are the Key Electrical and Mechanical Specifications for This Product?
The connector features a 16-pin configuration with a voltage rating of 30V and a current rating of 3A for power pins. It is a female, right-angle receptacle designed for surface mount (SMD) PCB placement, and it operates within a temperature range of -40°C to +85°C.
In What Application Scenarios Can This 16-Pin Type-C Connector Be Used?
This surface-mount, right-angle connector is ideal for consumer electronics, custom PCB designs, development boards, charging docks, and DIY hardware projects that require reliable power delivery (up to 3A) and standard USB data functionality without the complexity of a full 24-pin layout.
What Are the Recommended Replacements From Other Brands if This Part Is Out of Stock?
If the SHOU HAN TYPE-C16PIN is unavailable, you can look for right-angle, 16-pin USB Type-C female receptacles designed for surface mount (SMD) applications from alternative brands. Ensure the PCB footprint matches the center height and pin pitch of this part before substituting.
Is This USB Type-C Connector Compatible With Standard USB Type-C Cables?
Yes, this female receptacle follows standard Type-C physical dimensions and is compatible with all standard USB Type-C male cables. Please note that it has a 16-pin configuration, which supports USB 2.0 data transfer speeds alongside power delivery, rather than full 24-pin USB 3.1 speeds.
