Korean Hroparts ElecDatasheet (PDF)

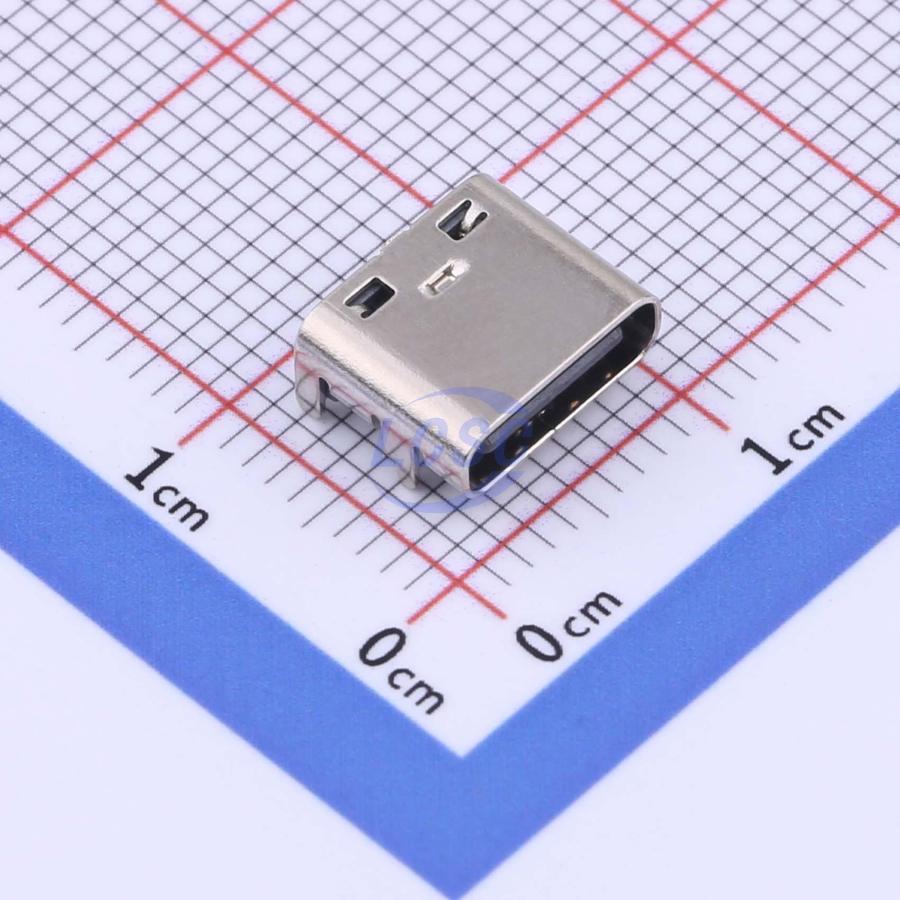

TYPE-C-31-M-12
USB-C (USB TYPE-C) Receptacle Connector 16 Position Surface Mount
PopularSMDRoHSActive
CONN RCPT Type-C 16POS SMD
- Manufacturer
- Korean Hroparts Elec
- Manufacturer part #
- TYPE-C-31-M-12
- Store part #
- C165948
- Package / case
- SMD
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,13,585 in stock
#C165948
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.83 | ₹124.15 |
| 50+ | ₹19.61 | ₹980.50 |
| 150+ | ₹17.05 | ₹2,557.50 |
| 1,000+ | ₹13.83 | ₹13,830.00 |
| 2,000+ | ₹13.20 | ₹26,400.00 |
| 5,000+ | ₹12.83 | ₹64,150.00 |
5 × ₹24.83
₹124.15
excl. GST
₹146.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TYPE-C-31-M-12
₹124.15 for 5 + GST
Specifications
- Number of Ports
- 1
- Number of Contacts
- 16P
- Connector Type
- Type-C
- Voltage Rating
- 20V
- Operating Temperature
- -30℃~+80℃
- Length
- 7.35mm
- Mounting Type
- Surface Mount, Right Angle
- Gender
- Female
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.809 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TYPE-C-31-M-31#C2760486Korean Hroparts Elec · SMD | Korean Hroparts Elec | SMD | 84,270 | ₹21.83 · 84,270 in stock | View |
 | TYPE-C-31-M-39#C5370442Korean Hroparts Elec · SMD | Korean Hroparts Elec | SMD | 1,850 | ₹34.68 · 1,850 in stock | View |
 | TYPE-C-31-M-41#C5370444Korean Hroparts Elec · SMD | Korean Hroparts Elec | SMD | 670 | ₹42.02 · 670 in stock | View |
 | TYPE-C-31-M-12A#C5337088Korean Hroparts Elec · SMD | Korean Hroparts Elec | SMD | 3,285 | ₹31.80 · 3,285 in stock | View |
 | TYPE-C-31-M-37A#C5370438Korean Hroparts Elec · SMD | Korean Hroparts Elec | SMD | 340 | ₹63.13 · 340 in stock | View |
Questions about TYPE-C-31-M-12
What Is the Proper Mounting Type Needed for Circuit Board Implementation?
This connector utilizes a right-angle, surface-mount (SMD) design. During implementation, it should be placed on the edge of the PCB to allow proper external cable insertion, and standard SMT reflow soldering processes should be followed.
What Are the Key Technical Specifications Regarding Power and Temperature Limits?
This right-angle female Type-C connector features a voltage rating of 20V and a current rating of 5A. It is designed to operate reliably within a temperature range of -30°C to +80°C.
What Are the Primary Application Scenarios for This Particular Connector?
Thanks to its compact surface-mount design and robust 5A current rating, this connector is ideal for modern electronic devices requiring power delivery and standard data transfer, such as smartphones, IoT modules, power banks, and portable consumer electronics.
How Can I Find Alternative or Replacement Connectors With Similar Specifications on LCSC?
You can easily find suitable replacements by clicking the "Show similar products" link on the product page. This allows you to filter through over 7,000 alternative USB Type-C connector assemblies based on your specific mounting or packaging requirements.
Is This USB Type-C Receptacle Fully Compatible With Standard 24-Pin USB-C Cables?
Yes, it is fully compatible. While this connector has a 16-pin layout physically soldered to the board (optimizing space and cost for power and USB 2.0 data applications), it interfaces seamlessly with standard 24-pin USB Type-C cables.
