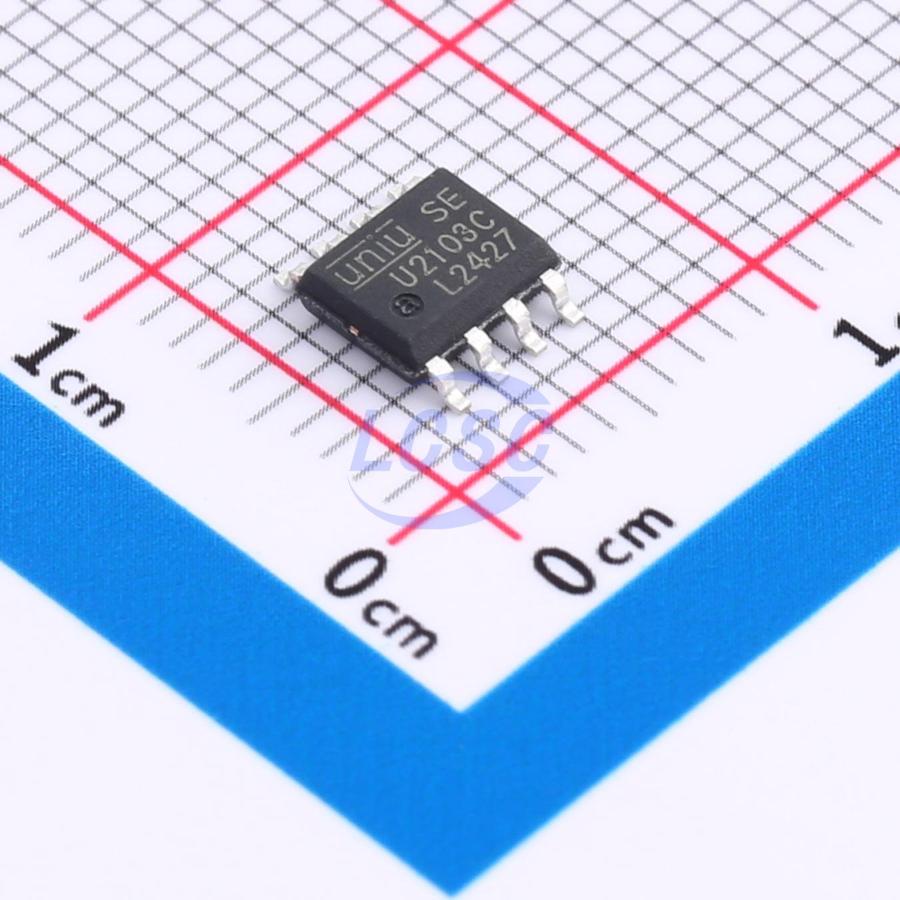

U2103C
4.8V~20V 600mA 400mA SOP-8 Gate Drivers RoHS
High Current IO HALF-BRIDGE DRIVER
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U2103C
- Store part #
- C41374693
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,155 in stock
#C41374693
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.36 | ₹151.80 |
| 50+ | ₹23.84 | ₹1,192.00 |
| 150+ | ₹21.04 | ₹3,156.00 |
| 500+ | ₹17.56 | ₹8,780.00 |
| 2,500+ | ₹16.00 | ₹40,000.00 |
| 4,000+ | ₹15.07 | ₹60,280.00 |
5 × ₹30.36
₹151.80
excl. GST
₹179.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U2103C
₹151.80 for 5 + GST
Specifications
- Low Level Delay Time
- 420ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 60uA
- Voltage - Supply
- 4.8V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 85ns
- Fall Time
- 40ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 400mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Overview
U2103C/U2106C is a high-voltage, high-speed power MOSFET and IGBT driver with full operating voltage up to +600V, featuring independent high-side and low-side referenced output channels. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output driver stage employs a high-pulse-current buffer design to minimize shoot-through conduction. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in high-side configurations, with operating voltages up to 600V.
Applications
- Home appliances
- Industrial applications and drives
- Motor drives
- DC-AC converters
- Induction heating
- HVAC
Key features
- Integrated bootstrap diode
- Floating channel designed for bootstrap operation
- Full operation up to +600V
- Tolerant of negative transient voltage, immune to dV/dt noise
- Gate drive supply voltage range 4.8V to 20V
- Undervoltage lockout
- Compatible with 3.3V, 5V, and 15V input logic
- Cross-conduction prevention logic
- Matched propagation delay for both channels
