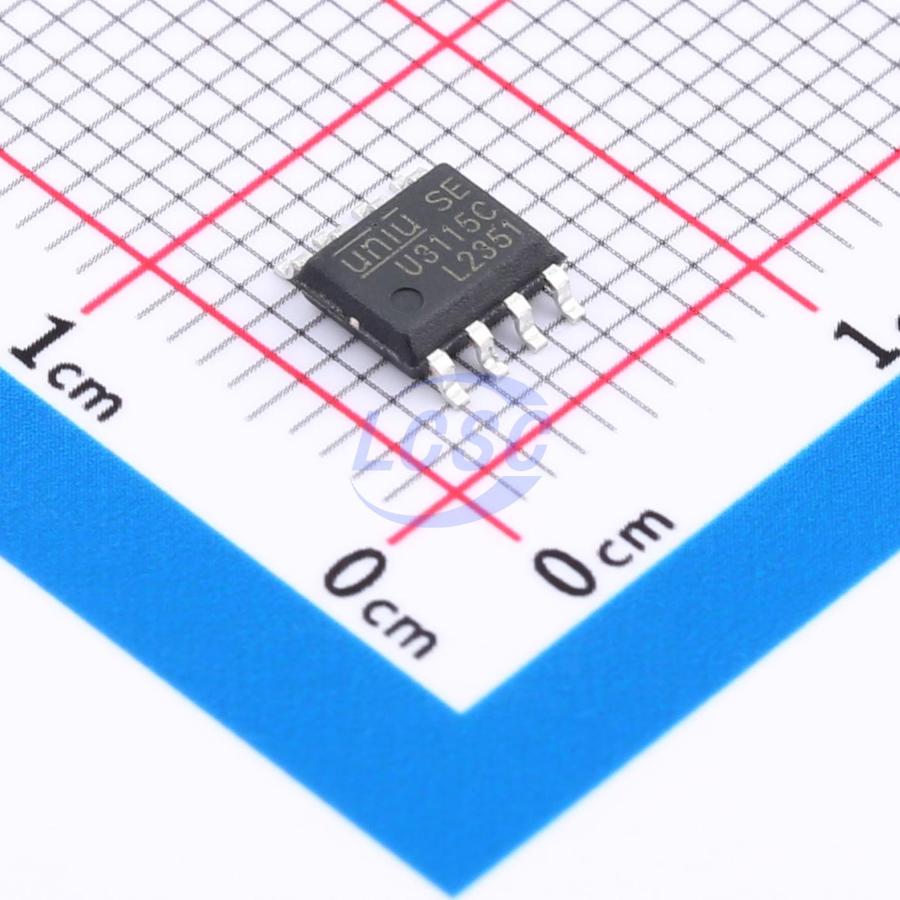

U3115C
4.5V~20V 1A 1.2A SOP-8 Gate Drivers RoHS
Half-bridge of power MOSFET/IGBT Drive
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U3115C
- Store part #
- C19193019
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,185 in stock
#C19193019
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.36 | ₹121.80 |
| 50+ | ₹18.88 | ₹944.00 |
| 150+ | ₹16.54 | ₹2,481.00 |
| 500+ | ₹13.61 | ₹6,805.00 |
| 2,500+ | ₹12.30 | ₹30,750.00 |
| 4,000+ | ₹11.52 | ₹46,080.00 |
5 × ₹24.36
₹121.80
excl. GST
₹143.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U3115C
₹121.80 for 5 + GST
Specifications
- Low Level Delay Time
- 450ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 70uA
- Voltage - Supply
- 4.5V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 1A
- Rise Time
- 50ns
- Fall Time
- 25ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.172 g
Overview
U3115C is a high-voltage, high-speed power MOSFET and IGBT driver with full operating voltage up to +350V, featuring independent high-side and low-side referenced output channels. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high pulse current buffer stages designed to minimize cross-conduction. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in high-side configurations, with operating voltages up to 350V.
Applications
- Home Appliances
- Industrial Applications & Drives
- Motor Drivers
- DC-AC Converters
- HVAC
Key features
- Integrated bootstrap diode
- Floating channel designed for bootstrap operation
- Full operating voltage up to +350V
- Tolerant of negative transient voltage, immune to dV/dt noise
- Gate drive supply voltage range from 5V to 20V
- Undervoltage lockout
- Compatible with 3.3V, 5V, and 15V input logic
- Cross-conduction prevention logic
- Matched propagation delay for both channels
