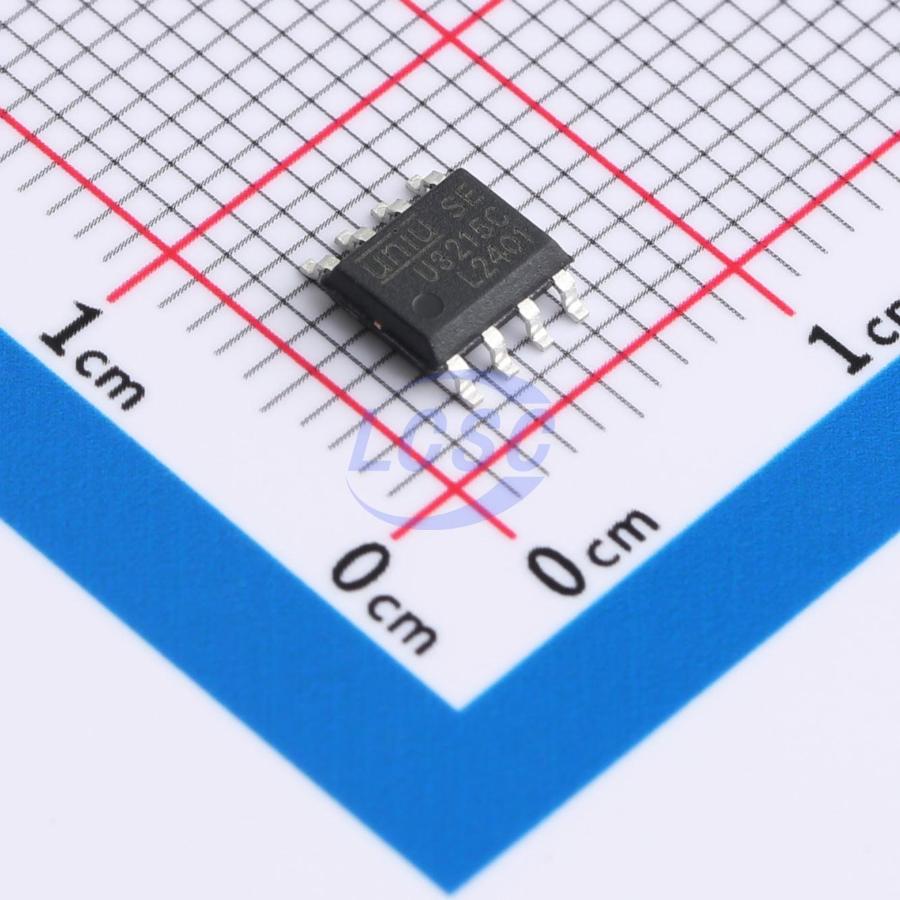

U3215C
5V~20V 2A 2.5A SOP-8 Gate Drivers RoHS
High Current IO HALF-BRIDGE DRIVER
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U3215C
- Store part #
- C20626026
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,189 in stock
#C20626026
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.87 | ₹51.87 |
| 10+ | ₹45.15 | ₹451.50 |
| 30+ | ₹42.11 | ₹1,263.30 |
| 100+ | ₹38.42 | ₹3,842.00 |
| 500+ | ₹36.90 | ₹18,450.00 |
| 1,000+ | ₹35.81 | ₹35,810.00 |
1 × ₹51.87
₹51.87
excl. GST
₹61.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U3215C
₹51.87 for 1 + GST
Specifications
- Low Level Delay Time
- 320ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 100uA
- Voltage - Supply
- 5V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 20ns
- Fall Time
- 18ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 2.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The U3215C/U3216C operates fully up to +600V and is a high-voltage, high-speed power MOSFET and IGBT driver with independent high-side and low-side referenced output channels. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output driver stage features a high peak-current buffer stage designed to minimize shoot-through in the driver stage. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in a high-side configuration with operating voltages up to 600V.
Applications
- Home Appliances
- Industrial Applications & Drives
- Motor Drives
- Induction Heating
- HVAC
Key features
- Floating channel designed for bootstrap operation
- Full operation up to +600V
- Tolerant of negative transient voltages, immune to dV/dt noise
- Gate drive supply range: 5V to 20V
- Undervoltage lockout
- Compatible with 3.3V, 5V, and 15V input logic
- Logic design with shoot-through prevention
- Matched propagation delay for dual channels
