UTCDatasheet (PDF)

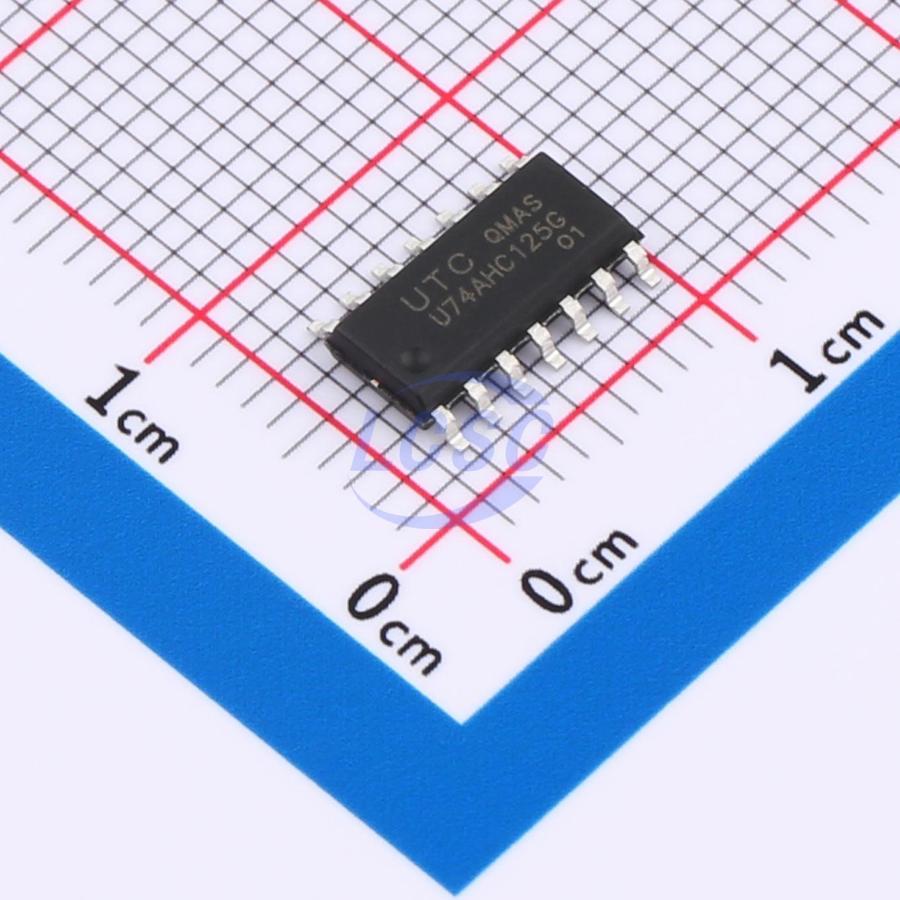

U74AHC125G-S14-R
2V~5.5V 1 4 3.8ns@5V,15pF SOP-14 Buffers, Drivers, Receivers, Transceivers
SOP-14RoHSActive
Quadruple Bus Buffer Gate with 3-State Outputs
- Manufacturer
- UTC
- Manufacturer part #
- U74AHC125G-S14-R
- Store part #
- C20623787
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,090 in stock
#C20623787
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.62 | ₹88.10 |
| 50+ | ₹13.87 | ₹693.50 |
| 150+ | ₹11.99 | ₹1,798.50 |
| 500+ | ₹10.58 | ₹5,290.00 |
| 2,500+ | ₹9.46 | ₹23,650.00 |
| 5,000+ | ₹8.89 | ₹44,450.00 |
5 × ₹17.62
₹88.10
excl. GST
₹103.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
U74AHC125G-S14-R
₹88.10 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 4
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 3.8ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.301 g
Overview
The U74AHC125 is a quadruple bus buffer gate with 3-state output. When OE is high, the Y output is in a high-impedance state. When OE is low, the device passes non inverted data from the A input to the Y output. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Key features
- Wide supply voltage range from 2V to 5.5V
- Max tPD of 5.5ns from A to Y at 5V, CL = 15pF
- Low Quiescent Current: ICC = 4 μA (Max.) at 5.5V
- ±8 mA Output Driver at 5V
