TIDatasheet (PDF)

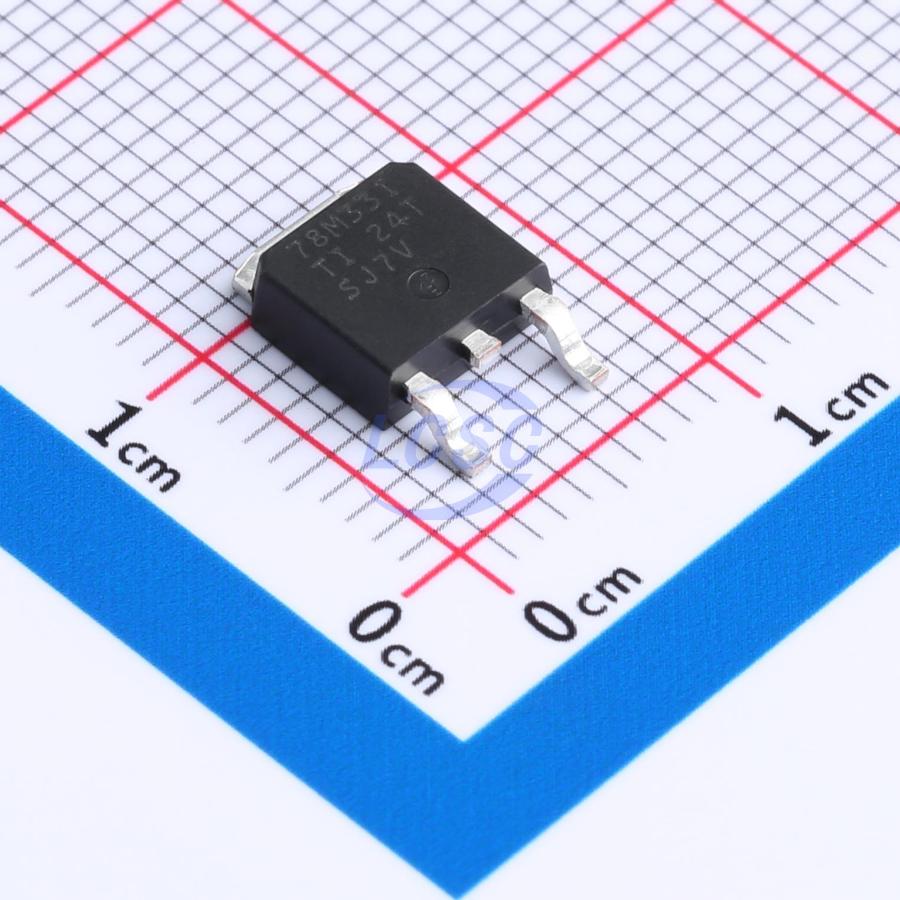

UA78M33IKVURG3
3.3V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS3 CompliantActive
500mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- UA78M33IKVURG3
- Store part #
- C2870523
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,875 in stock
#C2870523
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.19 | ₹66.19 |
| 10+ | ₹55.95 | ₹559.50 |
| 30+ | ₹48.77 | ₹1,463.10 |
| 100+ | ₹42.89 | ₹4,289.00 |
| 500+ | ₹40.93 | ₹20,465.00 |
| 1,000+ | ₹39.85 | ₹39,850.00 |
1 × ₹66.19
₹66.19
excl. GST
₹78.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UA78M33IKVURG3
₹66.19 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.568 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
Applications
- On-Card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators
- Output Current up to 500 mA
- No External Components
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA78M33CKVURG3#C2862383TI · TO-252-3 | TI | TO-252-3 | 2,974 | ₹62.09 · 2,974 in stock | View |
 | LD1086DT33TR#C12051ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 6,707 | ₹175.47 · 6,707 in stock | View |
 | BD733L5FP-CE2#C509724ROHM · TO-252 | ROHM | TO-252 | 2,864 | ₹138.21 · 2,864 in stock | View |
 | ICW1238A33T2GQ1#C22395385ICW · TO-252-2 | ICW | TO-252-2 | 48 | ₹48.54 · 48 in stock | View |
 | TPS7B8833QKVURQ1#C2873619TI · TO-252-3 | TI | TO-252-3 | 18 | ₹292.32 · 18 in stock | View |
