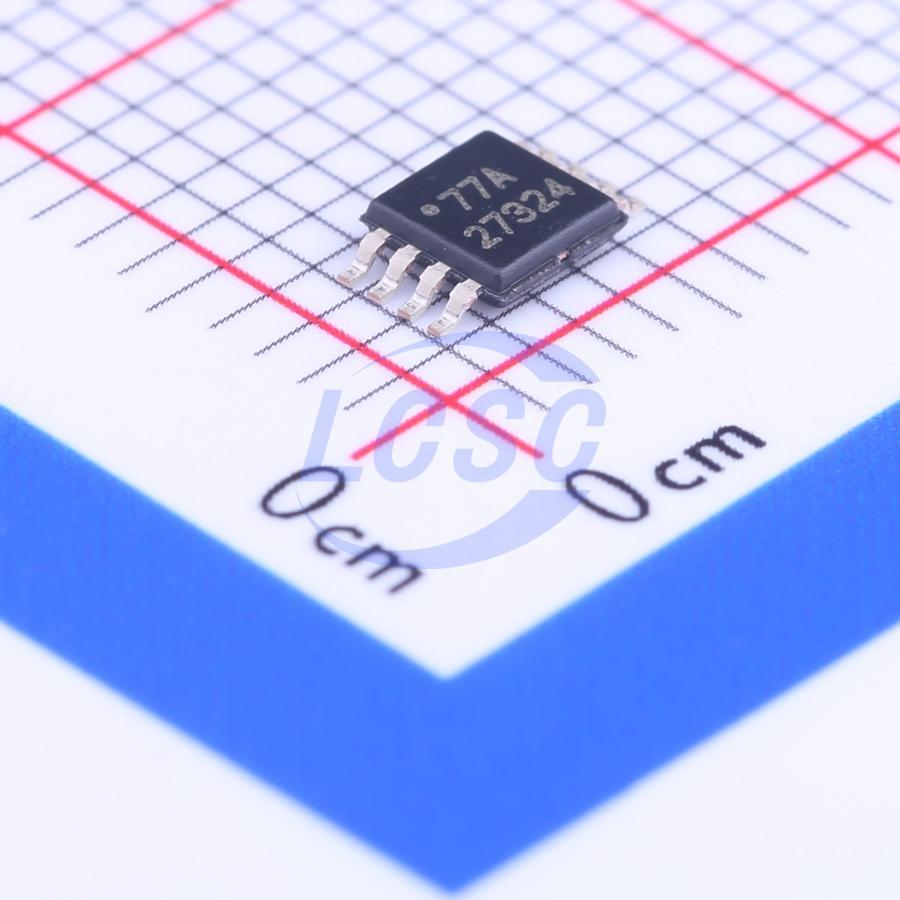

UCC27324DGNR

The UCC2732x and UCC3732x family of high-speed dual-MOSFET Drivers deliver large peak currents into capacitive loads. Three standard logic options are offered — dual-inverting, dual-noninverting, and one-inverting and one-noninverting driver. The thermally enhanced 8-pin PowerPAD MSOP package (DGN) drastically lowers the thermal resistance to improve long-term reliability. UCC2732x and UCC3732x is also offered in the standard SOIC-8 (D) or PDIP-8 (P) packages. Using a design that inherently minimizes shootthrough current, these drivers deliver 4 A of current where it is needed most at the Miller plateau region during the MOSFET switching transition. A unique BiPolar and MOSFET hybrid output stage in parallel also allows efficient current sourcing and sinking at low supply voltages.

Applications

• Switch-Mode Power Supplies
• DC-DC Converters
• Motor Controllers
• Line Drivers Class D Switching Amplifiers

Key features

• Industry-Standard Pin-Out
• High Current-Drive Capability of ±4 A at the Miller Plateau Region
• Efficient Constant-Current Sourcing Even at Low Supply Voltages
• TTL/CMOS Compatible Inputs Independent of Supply Voltage
• 20-ns Typical Rise and 15-ns Typical Fall Times with 1.8-nF Load
• Typical Propagation-Delay Times of 25 ns with Input Falling and 35 ns with Input Rising
• 4.5-V to 15-V Supply Voltage
• Supply Current of 0.3 mA
• Dual Outputs are Paralleled for Higher Drive Current
• Available in Thermally Enhanced MSOP PowerPAD Package
• Rated From -40°C to +125°C
• TrueDrive Output Architecture Using Bipolar and CMOS Transistors in Parallel
