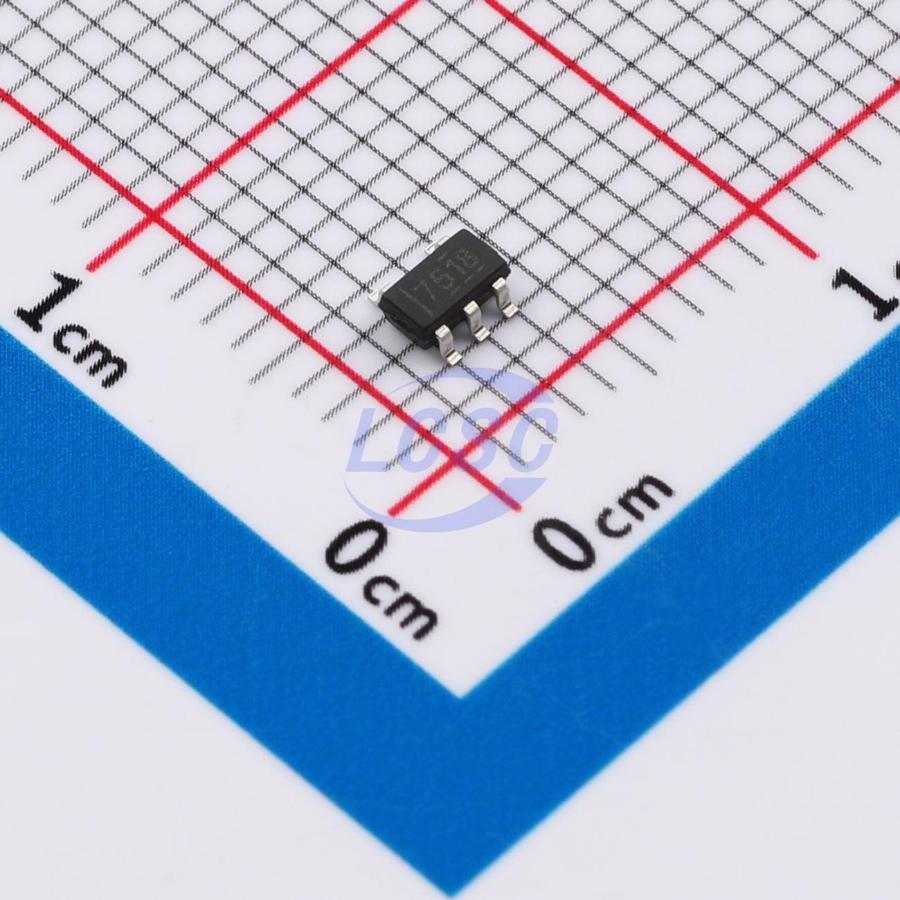

UCC27518DBVR-TP
4.5V~18V 300mA 600mA SOT-23-5 Gate Drivers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- UCC27518DBVR-TP
- Store part #
- C51939679
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,697 in stock
#C51939679
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.16 | ₹66.16 |
| 10+ | ₹51.68 | ₹516.80 |
| 30+ | ₹45.62 | ₹1,368.60 |
| 100+ | ₹37.84 | ₹3,784.00 |
| 500+ | ₹34.38 | ₹17,190.00 |
| 1,000+ | ₹32.44 | ₹32,440.00 |
1 × ₹66.16
₹66.16
excl. GST
₹78.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UCC27518DBVR-TP
₹66.16 for 1 + GST
Specifications
- Input Logic Level - Low
- 1V~1.2V
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.4V~2.6V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- 0℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 300mA
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
This device is a compact gate driver that serves as a superior replacement for NPN and PNP discrete driver (buffer circuit) solutions. The driver is suitable for MOSFETs, IGBTs, and emerging wide-bandgap power devices such as GaN, making it ideal for high-speed applications. Its asymmetric 4A peak source current and 8A peak sink current enhance immunity to parasitic Miller turn-on effects. Features including wide input hysteresis and negative input voltage handling improve transient noise immunity.
Applications
- DC-DC converters
- Desktop computer power supplies
- Switching mode power supplies
- Companion gate drivers for digital power controllers
- Gate drivers for emerging wide-bandgap power devices (e.g., GaN)
Key features
- 4.5V~18V single-supply voltage range
- Output held low during VDD undervoltage lockout
- TTL and CMOS compatible input logic thresholds
- Output designed to remain low when input pins are floating
- Fast rise and fall times (typical 9ns and 7ns)
- Fast propagation delay (typical 13ns)
- Split-output configuration
- Strong sink current capability for enhanced Miller turn-on immunity
- Input pins withstand voltages down to -5V below GND
- Compact package: SOT23-5
