VISHAYDatasheet (PDF)

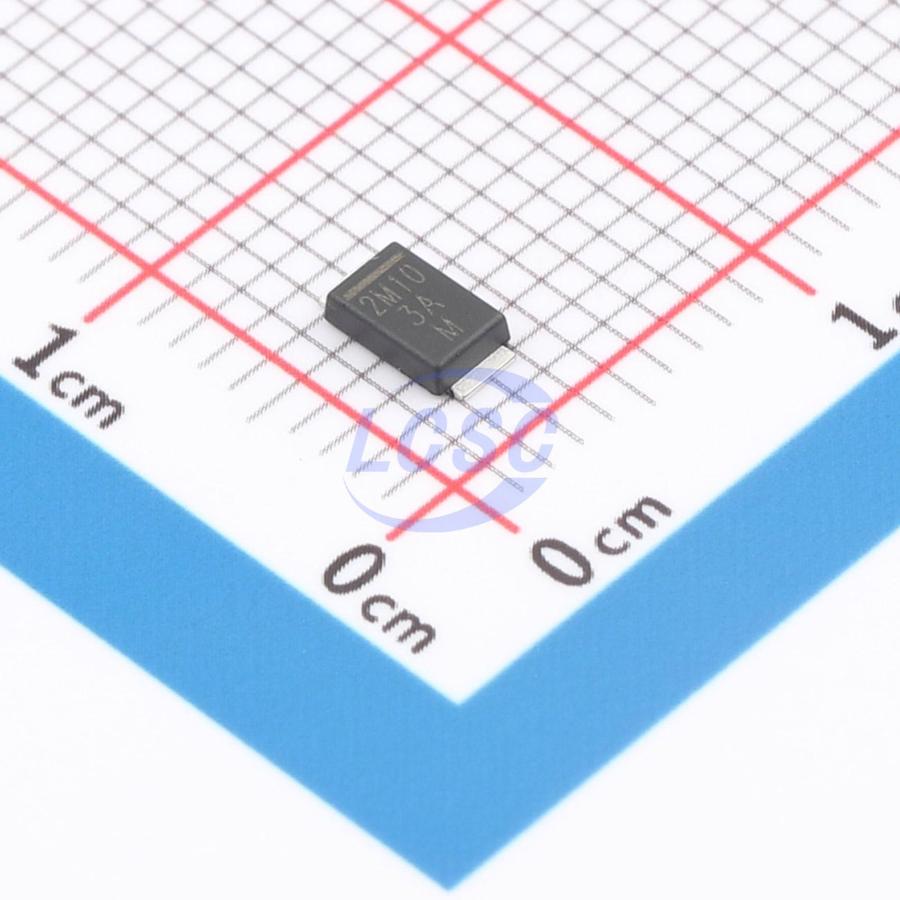

VSS8D2M10-M3/H
1 Independent 100V 560mV@1A 2A DO-221AD Single Diodes RoHS
DO-221ADROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-221AD
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D2M10-M3/H
- Store part #
- C3759113
- Package / case
- DO-221AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C3759113
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.70 | ₹87.70 |
| 10+ | ₹86.41 | ₹864.10 |
| 30+ | ₹85.56 | ₹2,566.80 |
| 100+ | ₹84.70 | ₹8,470.00 |
1 × ₹87.70
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D2M10-M3/H
₹87.70 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 560mV@1A
- Reverse Leakage Current (Ir)
- 150uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.186 g
Overview
Applications
- For use in high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified parts available
- Automotive ordering code: base part number HM3
- Compatible with SOD-128 package outline
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VSS8D3M10HM3/H#C3758617VISHAY · DO-221AD | VISHAY | DO-221AD | 3,000 | ₹52.88 · 3,000 in stock | View | |
 | VSS8D3M10-M3/H#C3760174VISHAY · DO-221AD | VISHAY | DO-221AD | 80 | ₹66.35 · 80 in stock | View |
 | VSS8D3M12-M3/H#C3758077VISHAY · DO-221AD | VISHAY | DO-221AD | 225 | ₹64.40 · 225 in stock | View |
 | VSS8D5M12HM3/H#C3758506VISHAY · DO-221AD | VISHAY | DO-221AD | 70 | ₹37.23 · 70 in stock | View |
 | VSS8D5M12-M3/H#C3759470VISHAY · DO-221AD | VISHAY | DO-221AD | 16 | ₹61.07 · 16 in stock | View |
