VISHAYDatasheet (PDF)

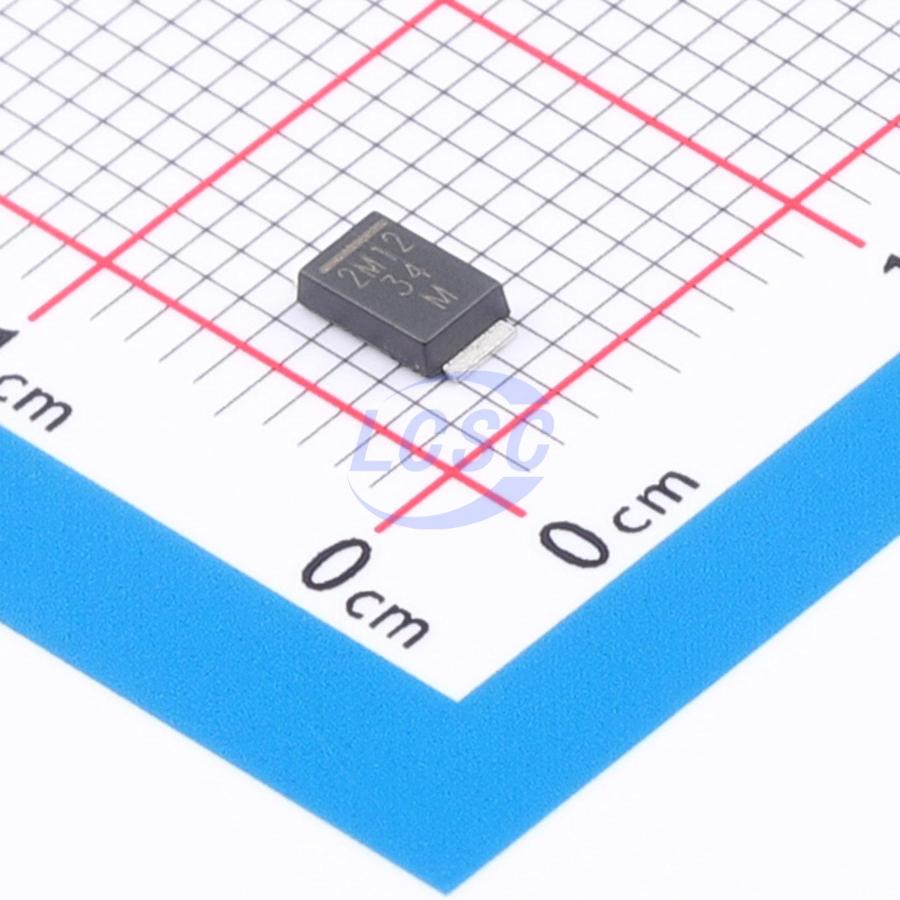

VSS8D2M12-M3/I
1 Independent 120V 600mV@1A 1.9A DO-221AD Single Diodes RoHS
DO-221ADROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D2M12-M3/I
- Store part #
- C3759873
- Package / case
- DO-221AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
349 in stock
#C3759873
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.51 | ₹119.51 |
| 10+ | ₹102.96 | ₹1,029.60 |
| 30+ | ₹94.58 | ₹2,837.40 |
| 100+ | ₹86.41 | ₹8,641.00 |
| 500+ | ₹81.47 | ₹40,735.00 |
| 1,000+ | ₹78.89 | ₹78,890.00 |
1 × ₹119.51
₹119.51
excl. GST
₹141.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D2M12-M3/I
₹119.51 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 120V
- Voltage - Forward(Vf@If)
- 600mV@1A
- Reverse Leakage Current (Ir)
- 250uA@120V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1.9A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
Overview
Applications
- For high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified parts available
- Automotive ordering code: base part number NHM3
- Compatible with SOD-128 package footprint
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VSS8D2M12-M3/H#C3757234VISHAY · DO-221AD | VISHAY | DO-221AD | 27 | ₹70.50 · 27 in stock | View | |
 | VSS8D3M12-M3/H#C3758077VISHAY · DO-221AD | VISHAY | DO-221AD | 225 | ₹64.40 · 225 in stock | View |
 | VSS8D5M12HM3/H#C3758506VISHAY · DO-221AD | VISHAY | DO-221AD | 70 | ₹37.23 · 70 in stock | View |
 | VSS8D5M12-M3/H#C3759470VISHAY · DO-221AD | VISHAY | DO-221AD | 16 | ₹61.07 · 16 in stock | View |
 | VSS8D3M15HM3/H#C3760182VISHAY · DO-221AD | VISHAY | DO-221AD | 100 | ₹49.44 · 100 in stock | View |
