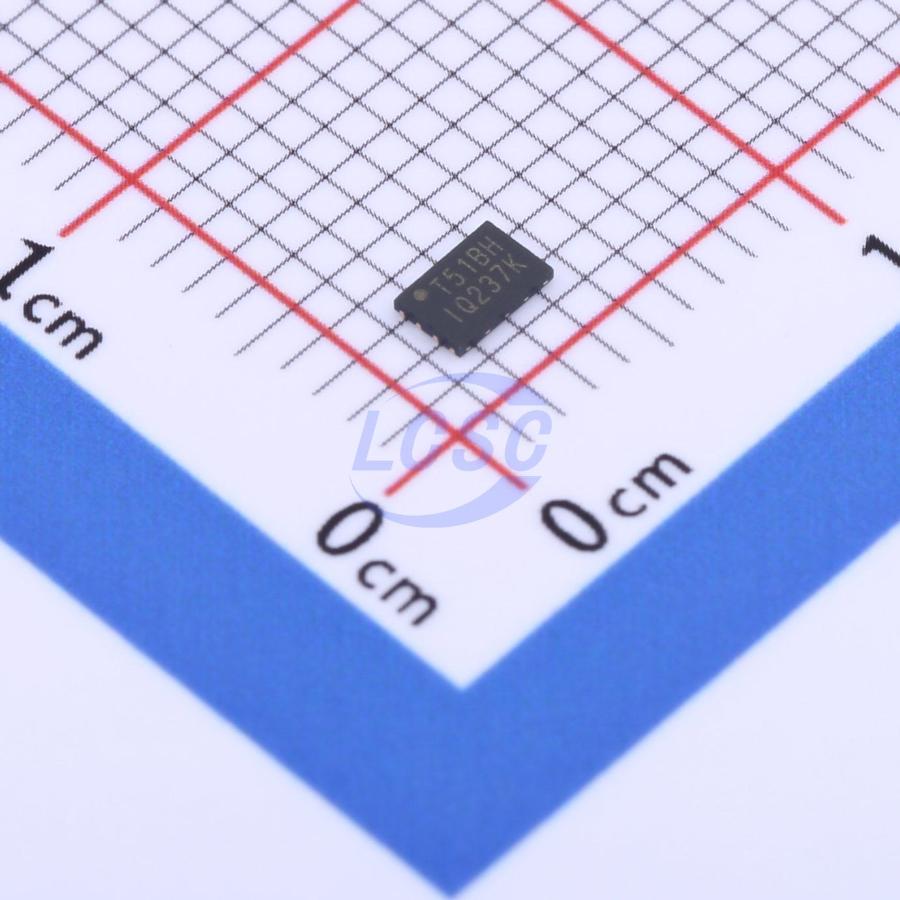

W25Q16JWXHIQ
16Mbit 1.65V~1.95V 133MHz SPI XSON-8-EP(2x3) Memory RoHS
Serial Flash Memory with Dual, Quad SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,224 in stock
#C2835333
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹345.63 | ₹345.63 |
| 10+ | ₹309.38 | ₹3,093.80 |
| 30+ | ₹286.73 | ₹8,601.90 |
| 100+ | ₹263.44 | ₹26,344.00 |
| 500+ | ₹253.08 | ₹1,26,540.00 |
| 1,000+ | ₹248.33 | ₹2,48,330.00 |
1 × ₹345.63
₹345.63
excl. GST
₹407.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
W25Q16JWXHIQ
₹345.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 1.65V~1.95V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 400ms@(64KB)
- Page Programming Time (Tpp)
- 800us
- Standby Supply Current
- 5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
The W25Q16JW (16M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on 1.65V to 1.95V power supply with current consumption as low as 0.1μA for power-down. The W25Q16JW array is organized into 8192 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IS25WP016D-JULE-TR#C2976734ISSI · USON-8-EP(2x3) | ISSI | USON-8-EP(2x3) | 2,652 | ₹61.19 · 2,652 in stock | View |
 | GD25LQ16EEIGR#C3202815GigaDevice Semicon Beijing · USON-8(2x3) | GigaDevice Semicon Beijing | USON-8(2x3) | 5,585 | ₹99.95 · 5,585 in stock | View |
 | AT25XE161D-MAHN-T#C1857757RENESAS · USON-8-EP(2x3) | RENESAS | USON-8-EP(2x3) | 87 | ₹809.16 · 87 in stock | View |
 | XT25Q16DDTIGT#C2759956XTX · UDFN-8-EP(2x3) | XTX | UDFN-8-EP(2x3) | 2,922 | ₹136.81 · 2,922 in stock | View |
| GD25LB16EEIGR#C20278496GigaDevice Semicon Beijing · USON-8(2x3) | GigaDevice Semicon Beijing | USON-8(2x3) | On request | Price on request | Quote | |
