TECH PUBLICDatasheet (PDF)

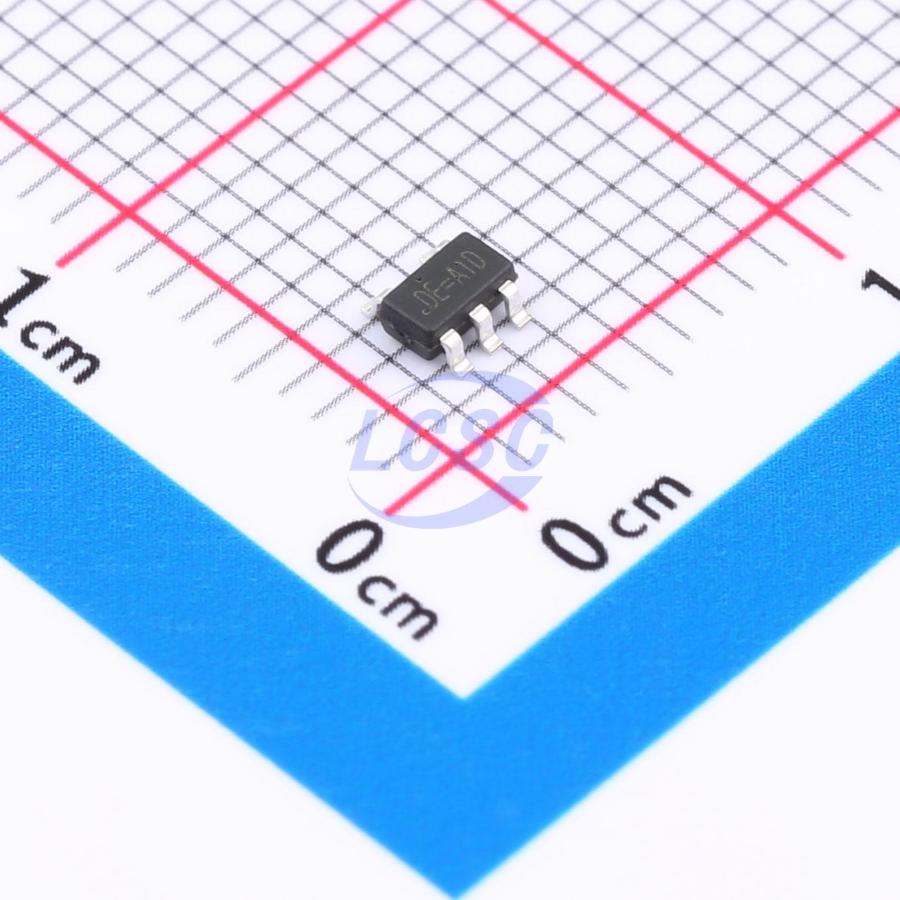

WL2801E33
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- WL2801E33
- Store part #
- C19268155
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C19268155
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.83 | ₹78.30 |
| 100+ | ₹6.10 | ₹610.00 |
| 300+ | ₹5.23 | ₹1,569.00 |
| 3,000+ | ₹4.58 | ₹13,740.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.80 | ₹34,200.00 |
10 × ₹7.83
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2801E33
₹78.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The WL2801E is a high-performance, 300mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The WL2801 is available in SOT23-5 Package the output standards of 1.2V 1.5V 1.8V 2.5V 2.8V,3.3, 3.6V
Applications
- CDM/GSM mobile phone
- PDAS
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- < 1uA current at shutdown mode
- Output current: 300mA(Typ.)
- SOT23-5 package
