NJGWDatasheet (PDF)

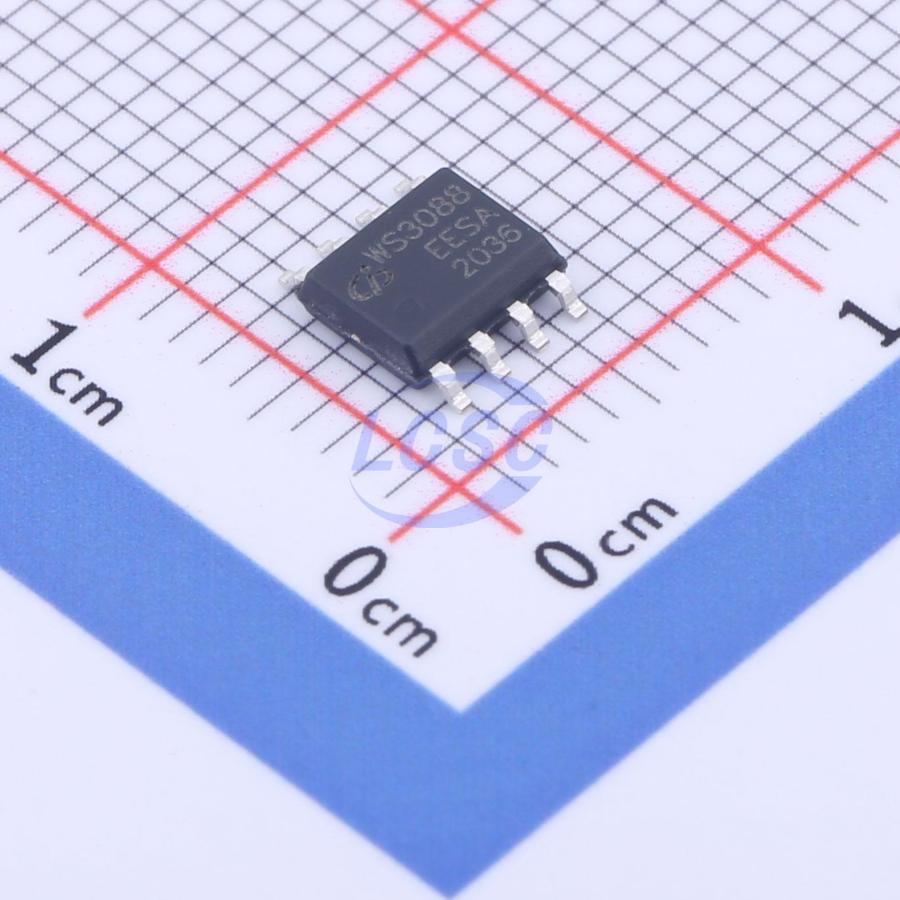

WS3088EESA-GEC
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
High Speed, Fail-Safe RS-485 Transceiver
- Manufacturer
- NJGW
- Manufacturer part #
- WS3088EESA-GEC
- Store part #
- C2691413
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C2691413
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.63 | ₹263.15 |
| 50+ | ₹42.24 | ₹2,112.00 |
| 150+ | ₹37.80 | ₹5,670.00 |
| 500+ | ₹32.24 | ₹16,120.00 |
| 2,500+ | ₹24.40 | ₹61,000.00 |
| 4,000+ | ₹22.91 | ₹91,640.00 |
5 × ₹52.63
₹263.15
excl. GST
₹310.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
WS3088EESA-GEC
₹263.15 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.239 g
Overview
WS3088 is a 5V, half-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver IC, integrating one driver and one receiver, supporting error-free data transmission up to 10Mbps. The receiver input impedance is 1/8 unit load, allowing up to 256 transceivers on the bus for half-duplex communication. All driver outputs feature ±15kV human body model ESD protection. Available in an 8-pin SO package, operating over a -40°C to +125°C temperature range.
Applications
- Isolated RS-485 interface
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 5V supply voltage
- Error-free high-speed data transmission up to 10Mbps
- ±15kV HBM ESD protection on communication ports
- Fail-safe operation
- 1/8 unit load, supports up to 256 transceivers on the same bus
- 8-pin SO package
