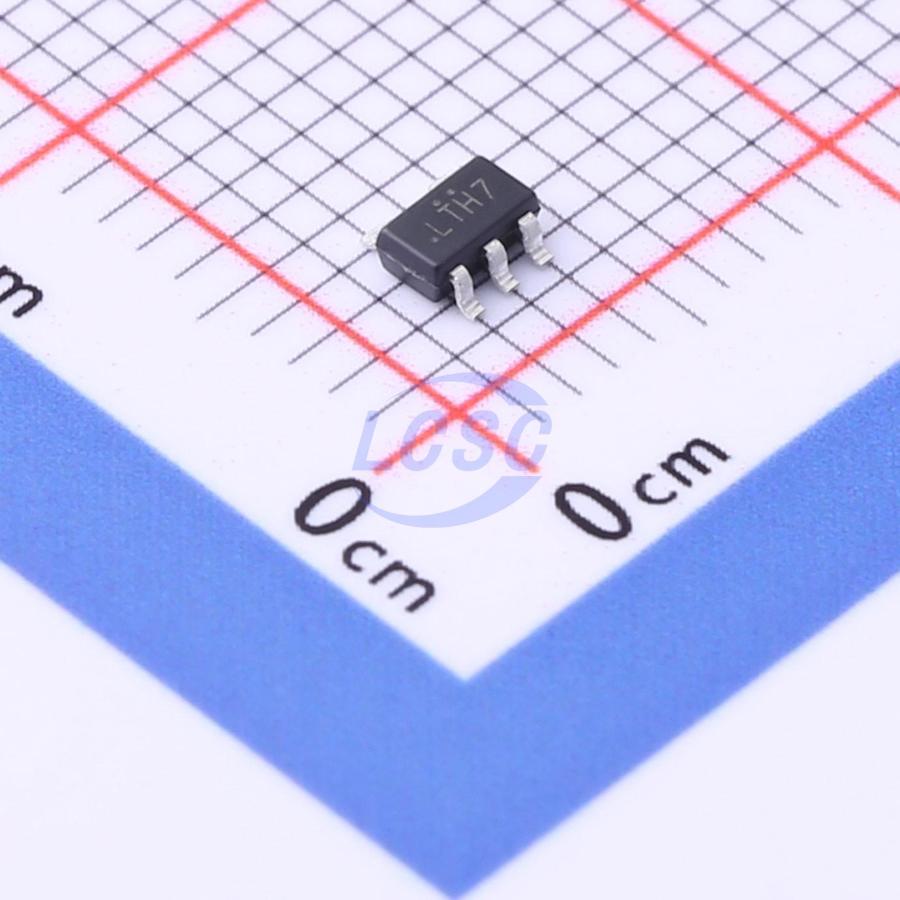

WS4054
Lithium Battery Charging IC Lithium Battery SOT-23-5L
500mA linear lithium battery charger with reverse polarity protection
- Manufacturer
- WPMtek
- Manufacturer part #
- WS4054
- Store part #
- C2931367
- Package / case
- SOT-23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C2931367
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.09 | ₹100.90 |
| 100+ | ₹8.10 | ₹810.00 |
| 300+ | ₹7.09 | ₹2,127.00 |
| 3,000+ | ₹5.81 | ₹17,430.00 |
| 6,000+ | ₹5.21 | ₹31,260.00 |
| 9,000+ | ₹4.91 | ₹44,190.00 |
10 × ₹10.09
₹100.90
excl. GST
₹119.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS4054
₹100.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+80℃
- Quiescent Current
- 25uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.2V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Battery reverse connection protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
WS4054 is a highly integrated, cost-effective single-cell lithium-ion battery charger. It employs constant-current/constant-voltage linear control and requires minimal external components, making it ideal for portable applications. It is compatible with both USB power supply and adapter power supply operation. The device features an internal PMOSFET architecture with reverse-charge protection, eliminating the need for external sense resistors and isolation diodes. Its thermal feedback function automatically adjusts the charge current to limit the die temperature during high-power operation or in high-temperature environments. The float voltage is fixed at 4.2V. The charge current can be programmed up to 500mA via an external resistor on the PROG pin. When the input voltage is removed, the WS4054 automatically enters a low-current state with a battery leakage current of less than 3uA. Additional features include charge current monitoring, undervoltage lockout, automatic recharge, and a status pin for indicating charge status and input voltage presence.
Applications
- Charging dock
- GPS devices
- Mobile phones, PDAs, e-cigarettes
- Digital cameras, mini speakers, and other portable devices
Key features
- Charge voltage: 4.2V ±42mV
- Standby battery leakage current: <3uA
- 0V battery charging support
- Battery reverse polarity protection
- Linear charging mode, up to 500mA charge current
- Three-stage charging: trickle / constant current / constant voltage
