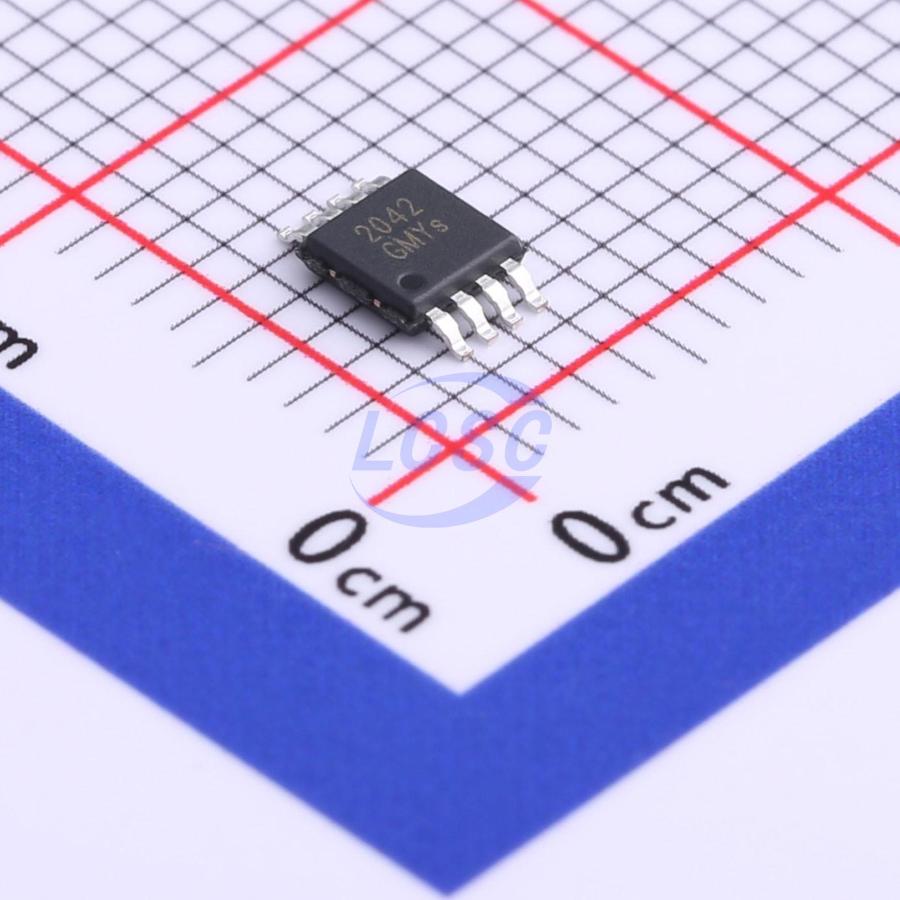

WILLSEMIDatasheet (PDF)
WS72042M-8/TR
20mA 2 100uV 9V/ms 74dB 10pA 29kHz 610nA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Nano-Power Rail-to-Rail Input/Output Operational Amplifiers
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS72042M-8/TR
- Store part #
- C717869
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,995 in stock
#C717869
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.96 | ₹244.80 |
| 50+ | ₹39.21 | ₹1,960.50 |
| 150+ | ₹35.03 | ₹5,254.50 |
| 500+ | ₹29.81 | ₹14,905.00 |
| 2,500+ | ₹27.49 | ₹68,725.00 |
| 4,000+ | ₹26.09 | ₹1,04,360.00 |
5 × ₹48.96
₹244.80
excl. GST
₹288.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
WS72042M-8/TR
₹244.80 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 9V/ms
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 74dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.8uV/℃
- Gain Bandwidth Product
- 29kHz
- Quiescent Current
- 610nA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 125nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.6V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.082 g
Overview
The WS72042 is a dual low-voltage operational amplifier with rail-to-rail input/output swing. Ultra low power makes this amplifier ideal for battery-powered and portable applications. The WS72042 has a gain-bandwidth product of 29kHz (TYP) and is unity gain stable. These specifications make this operational amplifier appropriate for low frequency applications, such as battery current monitoring and sensor conditioning. WS72042 is available with MSL 3 Level in SOP-8L package and MSOP-8L package. Standard products are Pb-Free and halogen-Free.
Applications
- Handsets and Mobile Accessories
- Current Sensing Wireless Remote Sensors, Active RFID Readers
- Environment/Gas/Oxygen Sensors
- Threshold Detectors/Discriminators Low Power Filters
- Battery or Solar Powered Devices Sensor Network Powered by Energy Scavenging
Key features
- Wide Supply Voltage: 1.6~5.5V
- Quiescent Current per: 610nA Typical
- Amplifier GBWP: 29kHz
- Rail-to-Rail Input/Output Swing
- Unity Gain Stable
- -40°C to 85°C Operation Temperature Range
- Available in Green SOP-8L and MSOP-8L Packages
