WILLSEMIDatasheet (PDF)

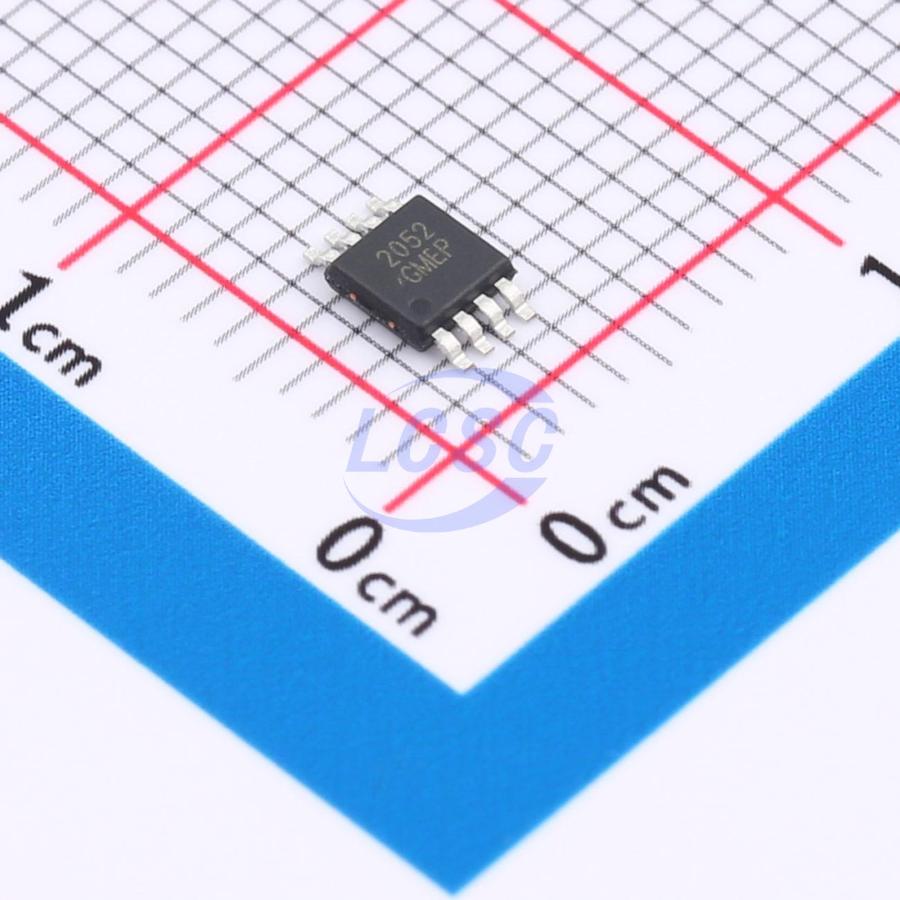

WS72052M-8/TR
242mA 2 1mV 130V/us 2pA 3.6mA 130MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive
180MHz, Rail-to-Rail I/O, CMOS Operational Amplifiers
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS72052M-8/TR
- Store part #
- C16197390
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,608 in stock
#C16197390
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.51 | ₹80.51 |
| 10+ | ₹65.77 | ₹657.70 |
| 30+ | ₹58.40 | ₹1,752.00 |
| 100+ | ₹51.22 | ₹5,122.00 |
| 500+ | ₹46.90 | ₹23,450.00 |
| 1,000+ | ₹44.57 | ₹44,570.00 |
1 × ₹80.51
₹80.51
excl. GST
₹95.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
WS72052M-8/TR
₹80.51 for 1 + GST
Specifications
- Output Current
- 242mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 130V/us
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 6.5uV/℃
- Quiescent Current
- 3.6mA
- Gain Bandwidth Product
- 130MHz
- Features
- Built-in compensation
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.082 g
Overview
The WS72052 is a dual high-speed, voltage-feedback CMOS operational amplifier. It is designed for video and other applications which require wide bandwidth. It is unity-gain stable and can provide large output current. Quiescent current is only 3.6mA/Amplifier. The WS72052 is optimized for operation on single or dual supplies as low as 2.5V (±1.25V) and up to 5.5V (±2.75V). The output swing is within 15mV of the rails, supporting wide dynamic range. It is suitable for applications requiring high continuous output current. It is completely independent circuitry for lowest crosstalk and freedom from interaction. The WS72052 is available with MSL 3 Level in MSOP-8L package. Standard products are Pb-Free and halogen-Free.
Applications
- Video Processing
- Ultrasound
- Optical Networking, Tunable Lasers
- Photo-diode Trans-impedance Amplifiers
- Active Filters
- High-Speed Integrator
- Analog-to-Digital(A/D) Converter Input Buffers
- Digital-to-Analog (D/A) Converter Output Amplifiers
Key features
- -3dB Bandwidth: 180MHz
- High Slew Rate: 130V/μs
- Low Noise: 7nV/Hz at 1MHz
- Rail-to-Rail Input and Output
- Low Input Bias Current: 2pA
- Quiescent Current: 3.6mA/Amplifier(TYP)
- 2.5V to 5.5V Single Supply or ±1.25V to ±2.75V Dual Power Supplies
- -40°C to +125°C Operating Temperature Range
